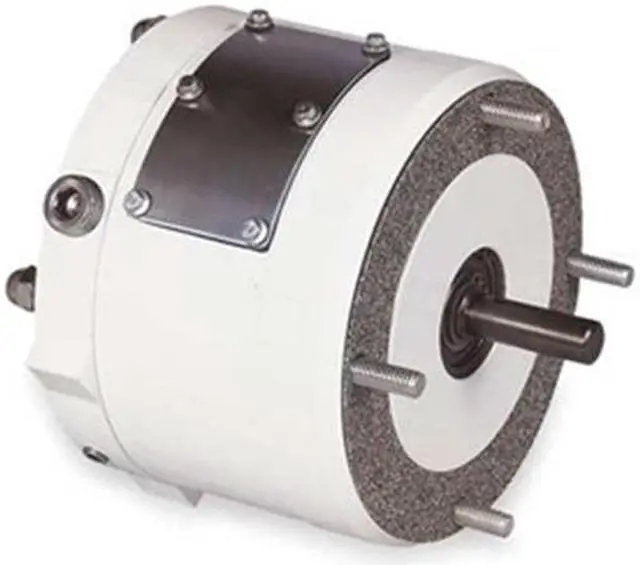

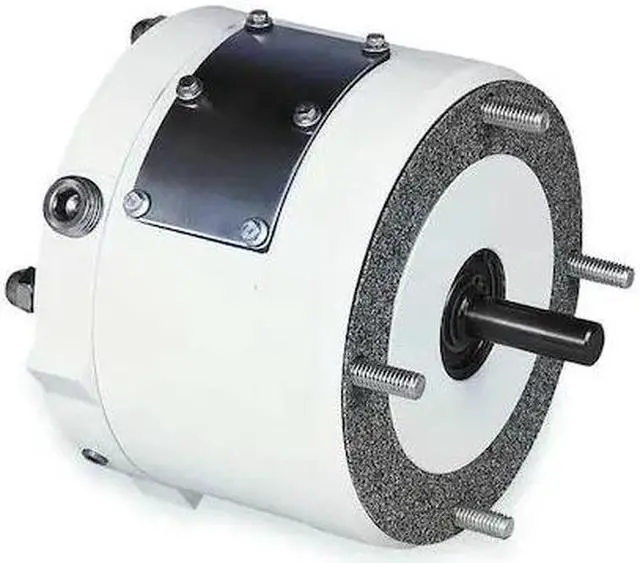

DAYTON 1L388 Brake,Motor,3 Ft Lb
- The brand for this item is DAYTON
- This item ships free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Brake, Clutch/Brake Type C-Face Magnetic Disc, Coil Voltage 110/208-220V AC @ 50 Hz, 115/208-230V AC @ 60 Hz, Operating Voltage 110/208-220V AC @ 50 Hz, 115/208-230V AC @ 60 Hz, Enclosure Type Totally Enclosed, Static Torque 3 ft-lb, Motor Frame Designation 56C NEMA, Horsepower @ RPM 1 hp @ 1725 RPM, 2 hp @ 3450 RPM, Shaft Diameter 5/8 in, Maximum Speed 3, 450 RPM, Mounting Location Between Motor and Reducer, NEMA C Face Motor, For Use With Single Phase Motors, When Wired per Instructions.
This item has been restricted from sale in the following state (s): []
This item has been restricted from sale in the following state (s): []
