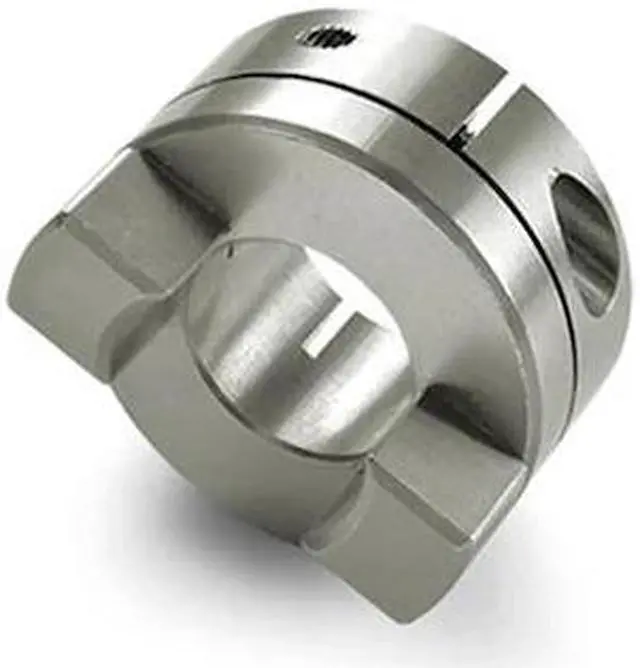

RULAND MOCC41-15-A Keyed Clamp Oldham Cplg Hub, Bore 15mm, OD 41.3mm, Aluminum

California Proposition 65: This product contains a chemical known to the State of California to cause cancer.
California Proposition 65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Ruland oldham couplings are zero-backlash and designed for use in applications with high parallel misalignment (up to 10% of the OD). This keyed clamp style hub is a component in a three piece design which mates two aluminum hubs to a disk insert. The addition of a keyway allows for increased torque capacity and prevents the coupling from slipping on the shaft when over torqued. It has a 15mm bore, 5mm keyway, 41.3 mm OD, and 18.0 mm length. The multiple piece construction allows for a highly customizable coupling that easily combines clamp or set screw hubs with inch, metric, keyed, and keyless bores. Disks are available in three materials allowing the user to tailor coupling performance to system requirements. Ruland's proprietary manufacturing process combined with an anodized finish improves lubricity and allows for the longest service life in the industry. The complete coupling has a balanced design and can accommodate speeds of up to 4, 500 RPM. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities.

This oldham coupling hub is RoHS and REACH compliant.
