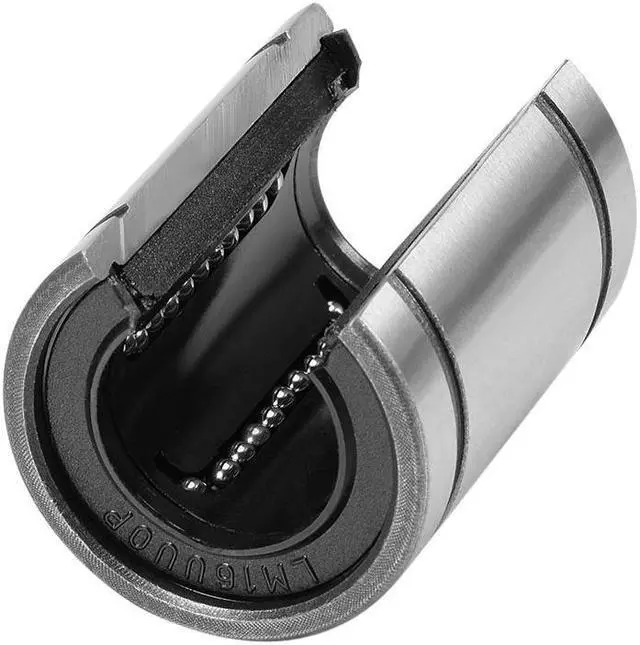

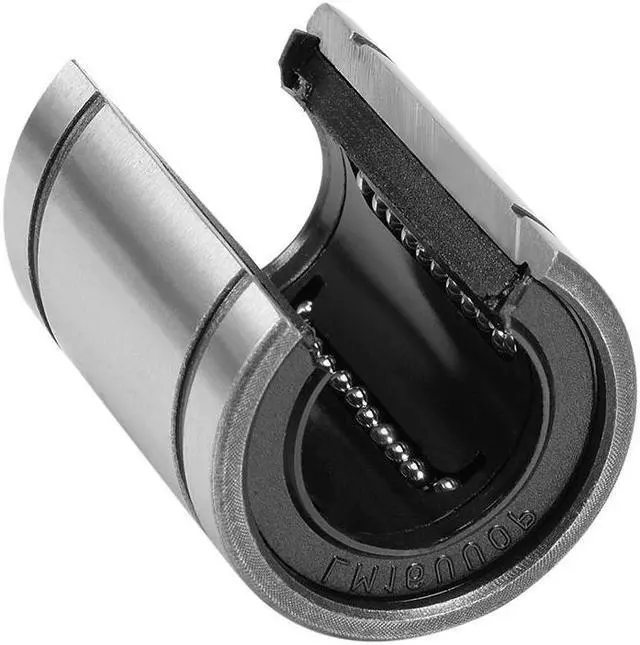

LM16UUOP Linear Ball Bearings Open Type, 16mm Bore Dia, 28mm OD, 37mm Long 4Pcs
- Model: LM16UUOP (Nominal Shaft Diamter (dr): 16mm, Outer Diameter (D): 28mm, Total Length (L): 37mm)
- Open Type Linear Motion Ball Bearing Bushing Sealed on Both Side
- Chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength
- Smooth moving, low friction, high rigidity and long working life
- Suitalbe for kinds of electronic equipment/guide bar, and pillar
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1.provides LMUUOP series Open Type Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.
2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80KEY_TAB degree Celsius.
4.It is great for 3D printer, CNC, and other applications.
KEY_TAB
KEY_TAB
Specification:
Bearing No.: LM16UUOP
Bearing Ball Meterial: Chromium Steel
Outer Shell Meterial: Chromium Steel
Cage Meterial: Nylon
Nominal Shaft Diamter (dr): 16mm
Outer Diameter (D): 28mm
Total Length (L): 37mm
Opening Width (h1): 11mmKEY_TAB
Opening Angle: 80 Degree
Ball Circuit: 4
Static Load Capacity (Cor): 1.18kN
Dynamic Load Capacity (Cr): 0.775kN
Number of Pack: 4 Pcs
