10pcs Deep Groove Ball Bearing 686Z Double Shield, 10 x 6 x 13mm Chrome Steel

NOTE

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

KEY_TAB

KEY_TAB

Description:

• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
• With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance.

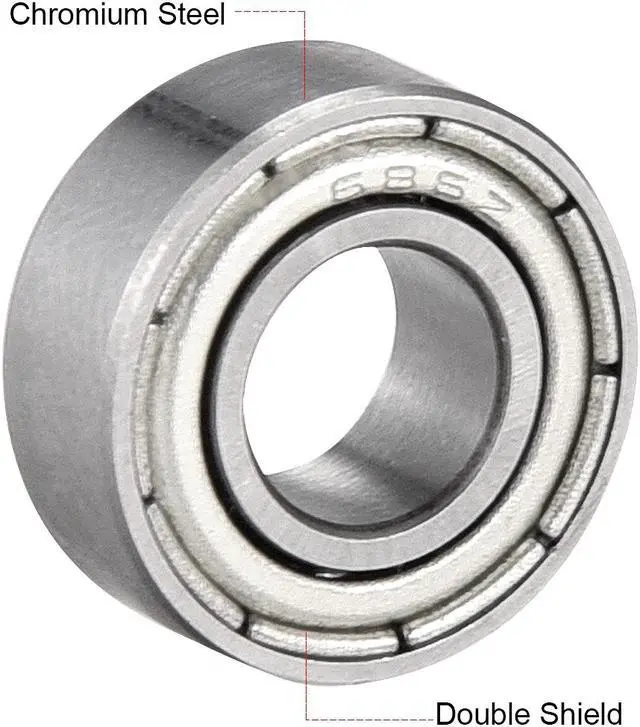

• Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
• Single-row, pre-lubricated, normal accuracy.

KEY_TAB

KEY_TAB

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

KEY_TAB

KEY_TAB

Specification:

Model: 686ZZ

Shield Type: Double Shield

Cage Material: Stamping Steel

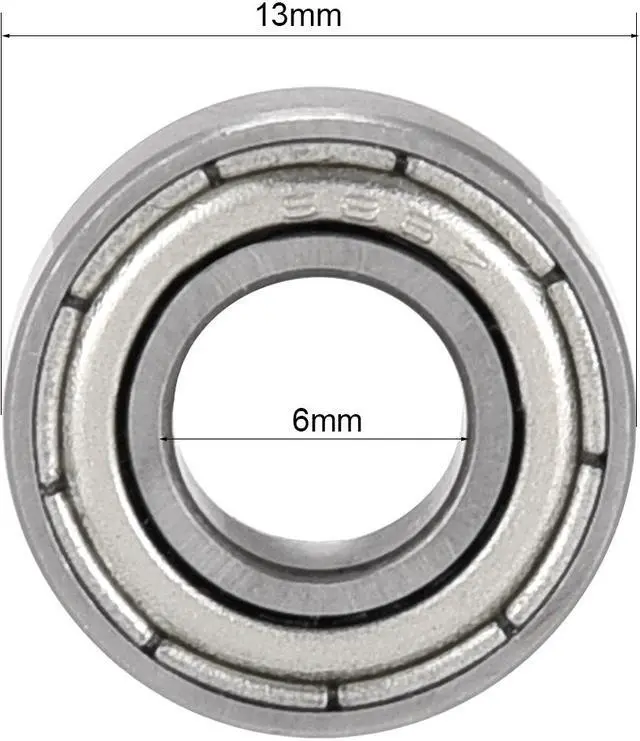

Inner Diameter (d): 6mm

Outer Diameter (D): 13mm

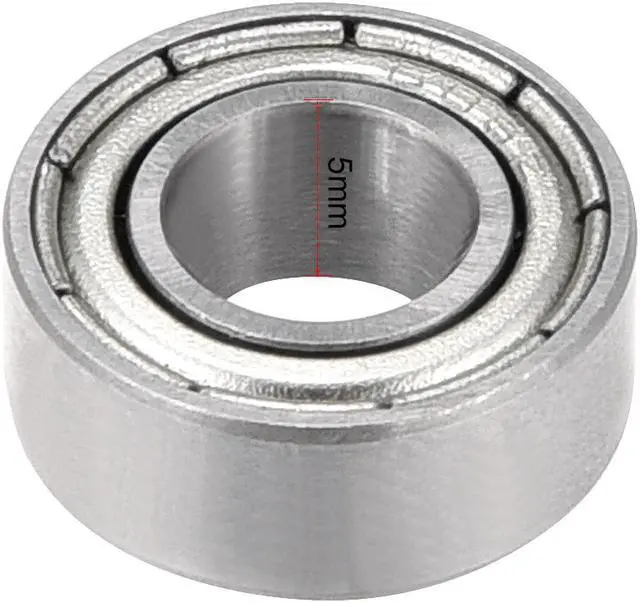

Thickness (B): 5mm

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

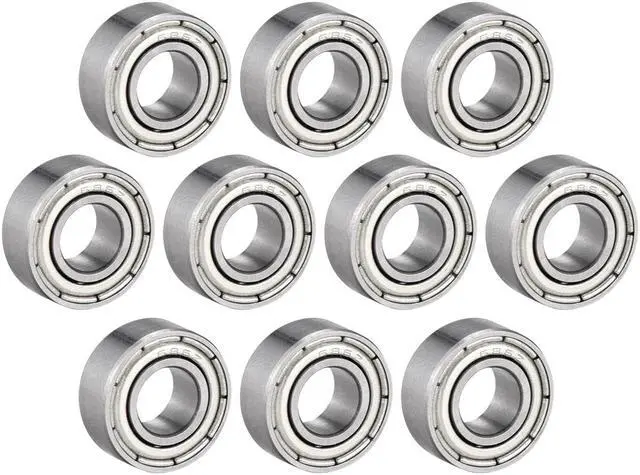

Number of Pack: 10 Pcs

Weight: 28g
