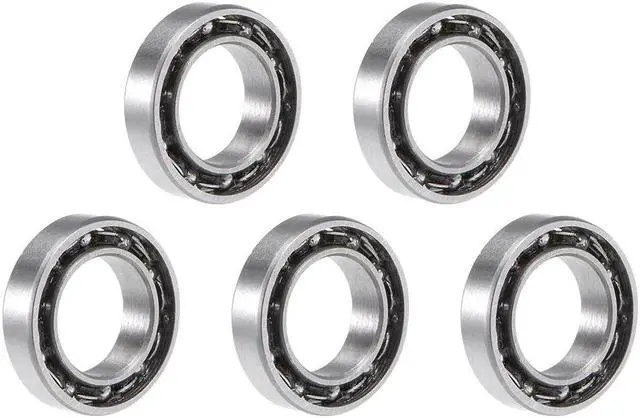

MR106 Deep Groove Ball Bearing 6x10x2.5mm Open Type Chrome Steel Z2 Lever Bearings 5pcs

NOTE

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

KEY_TAB

KEY_TAB

Description:

KEY_TAB

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

KEY_TAB

KEY_TAB

Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

KEY_TAB

KEY_TAB

Specification:

Model: MR106

Type: Open Type

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

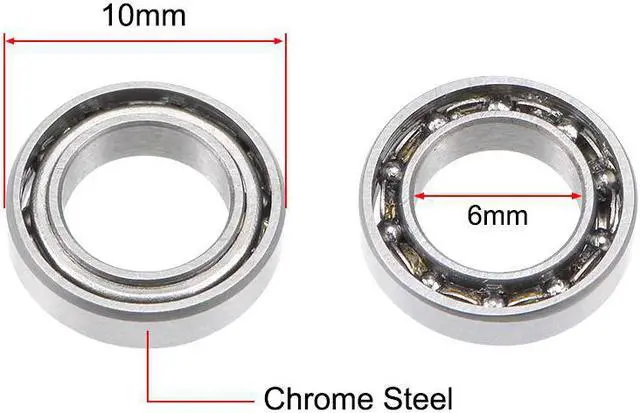

Inner Diameter (d): 6mm

Outer Diameter (D): 10mm

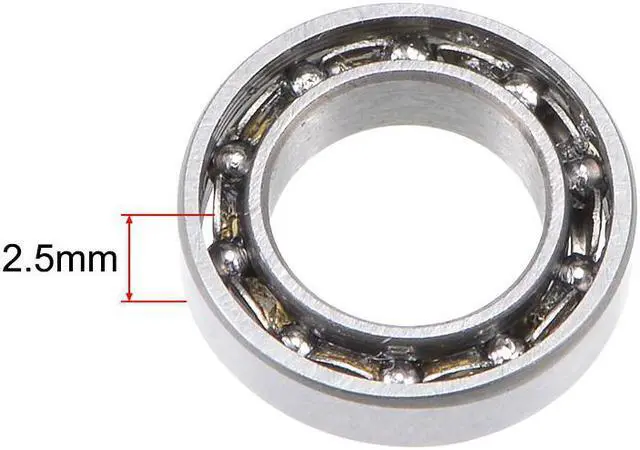

Thickness (B): 2.5mm

Dynamic Load Rating (Cr): 0.496kN

Static Load Rating (Cor): 0.218kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z2

Number of Pack: 5 Pcs
