6203ZZ Deep Groove Ball Bearing 17x40x12mm Double Shielded ABEC-3 Bearings 2-Pack

NOTE

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

KEY_TAB

Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

KEY_TAB

Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

KEY_TAB

KEY_TAB

Specification:

Model: 6203ZZ

Shield Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

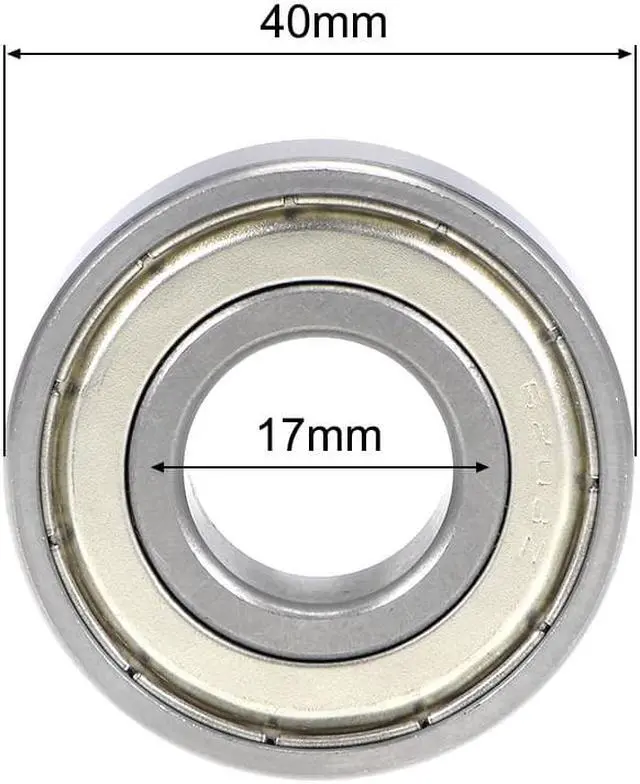

Inner Diameter (d): 17mm

Outer Diameter (D): 40mm

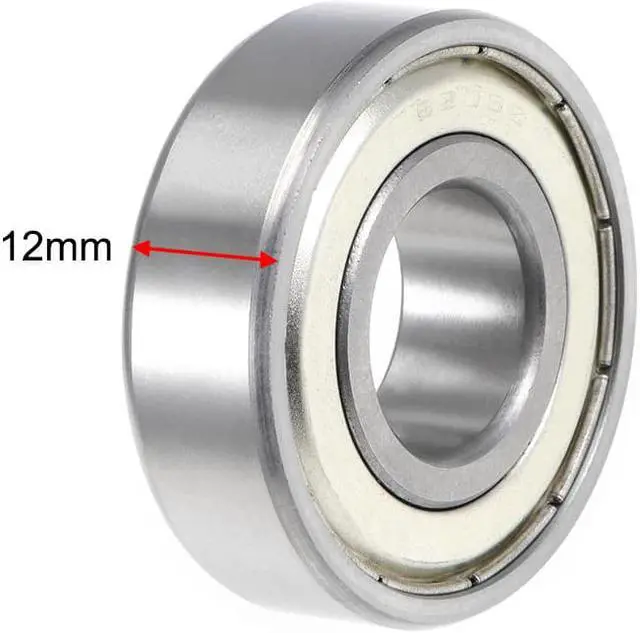

Thickness (B): 12mm

Dynamic Load Rating (Cr): 9.58kN

Static Load Rating (Cor): 4.78kN

Accuracy Class: P6 (ABEC-3)

Noise Level: Z1

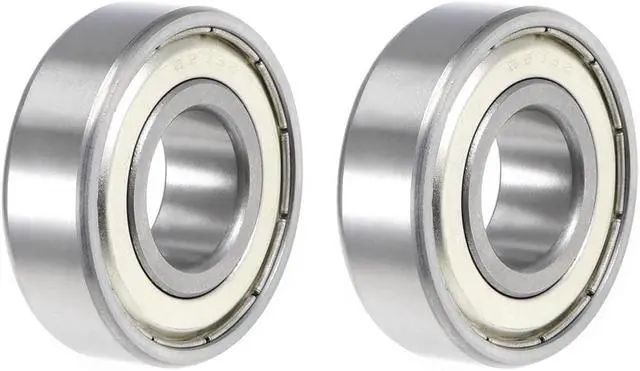

Number of Pack: 2 Pcs
