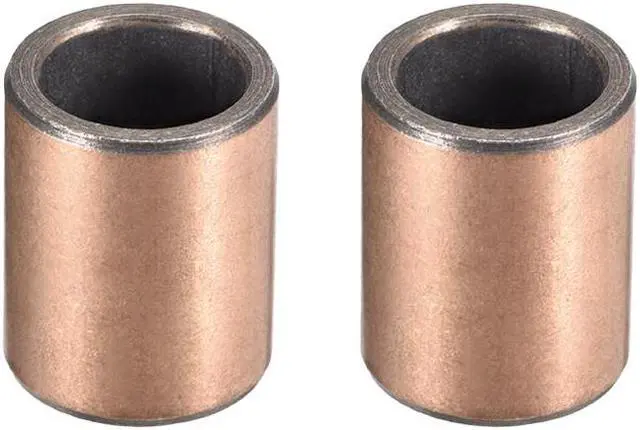

Sleeve Bearing 12mm Bore x 16mm OD x 20mm Length Plain Bearings Wrapped Oilless Bushings (Pack of 2)
- Bore: 12mm, Outside Diameter: 16mm, Length: 20mm;Oilless, maintenance-free, good frictional property;Carbon steel base with Bronze Sintered and composite coating. Suitable for sliding movements
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
- Plain Bearings are constructed with carbon steel as base, sintered porous bronze as its interlayer, rolled with PTFE and Lead compound as inner surface, and copper-plated on the outer surface.
- Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.
- Solid friction Oilless Bushing can operating during wide temperature rang. Suitable for applications with sliding movements.
- Oilless Sleeve Bearings are most suitable for place where self-lubricating properties of the material are required.
- Note: Split Line can not be used for bearing.
KEY_TAB
KEY_TAB
Specification:
Material: Carbon Steel Base with Porous Bronze Sintered
Finish: PTFE and Lead Rolling, Copper Plating
Friction Factor (Dry Friction): 0.04-0.2
Friction Factor (Oil Lubrication): 0.02-0.07

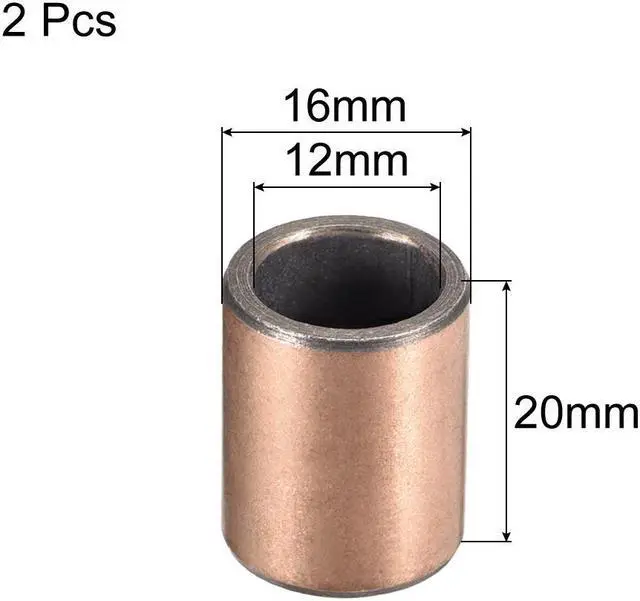

Bore Diameter: 12mm
Outside Diameter: 16mm
Length: 20mm
Number of Item: 2 Pack
