S6003-2RS Stainless Steel Ball Bearing 17x35x10mm Double Sealed 6003RS Bearings

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

KEY_TAB

Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Stainless steel bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

KEY_TAB

KEY_TAB

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

KEY_TAB

KEY_TAB

Specification:

Model:S6003-2RS

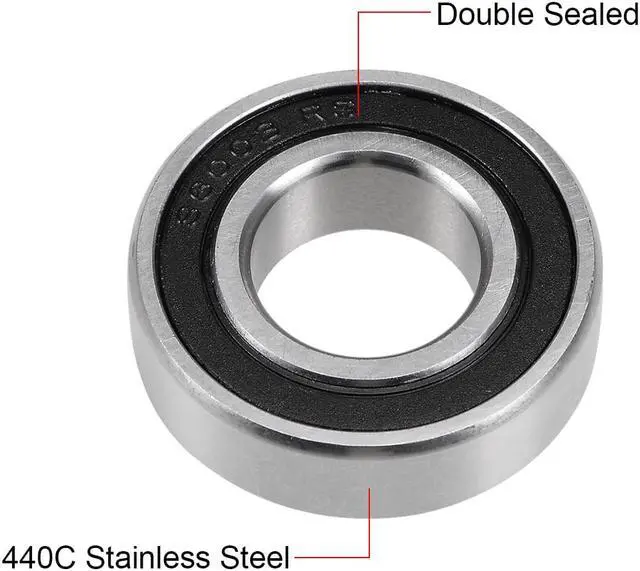

Sealed Type: Double Sealed

Inner Race/Outer Race Meterial: 440C Stainless Steel (9Cr18)

Cage Material: 304 Stainless Steel (0Cr18Ni9)

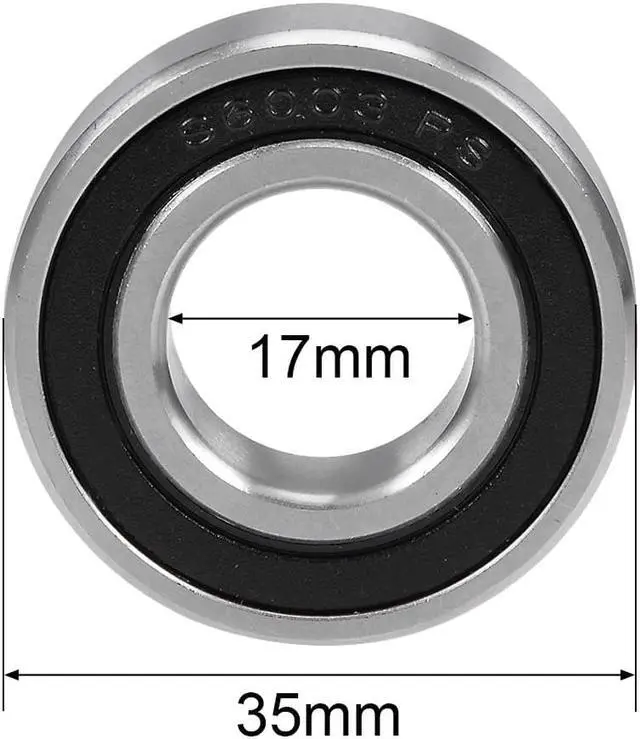

Inner Diameter (d): 17mm

Outer Diameter (D): 35mm

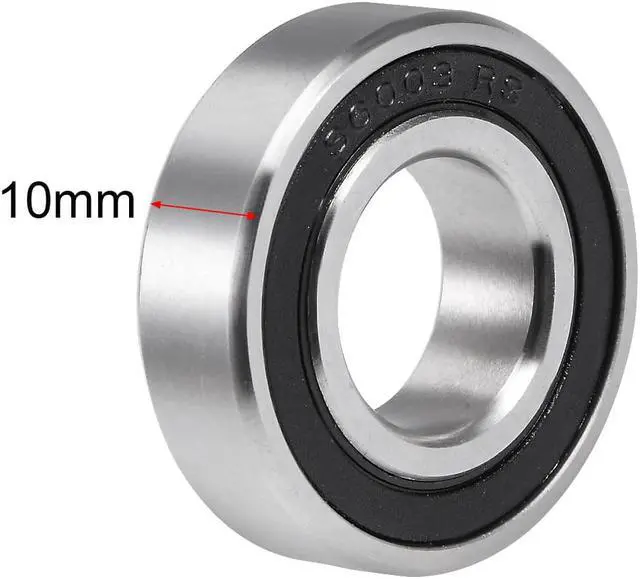

Thickness (B): 10mm

Dynamic Load Rating (Cr): 6kN

Static Load Rating (Cor): 3.25kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 1 Pcs
