6812ZZ Deep Groove Ball Bearings Z2 60mm x 78mm x 10mm Double Shielded Chrome Steel 2pcs

NOTE

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
KEY_TAB
Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

KEY_TAB
Selecting Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
KEY_TAB
Specification:

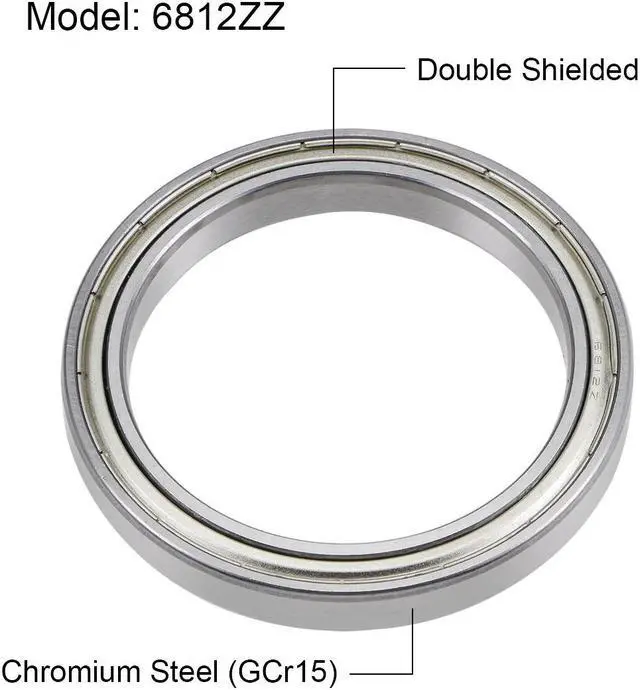

Model: 6812ZZ
Seal Type: Double Shielded
Rolling Ball Material: Chromium Steel (GCr15)
Cage Material: Stamping Steel
Inner Diameter: 60mm
Outer Diameter: 78mm

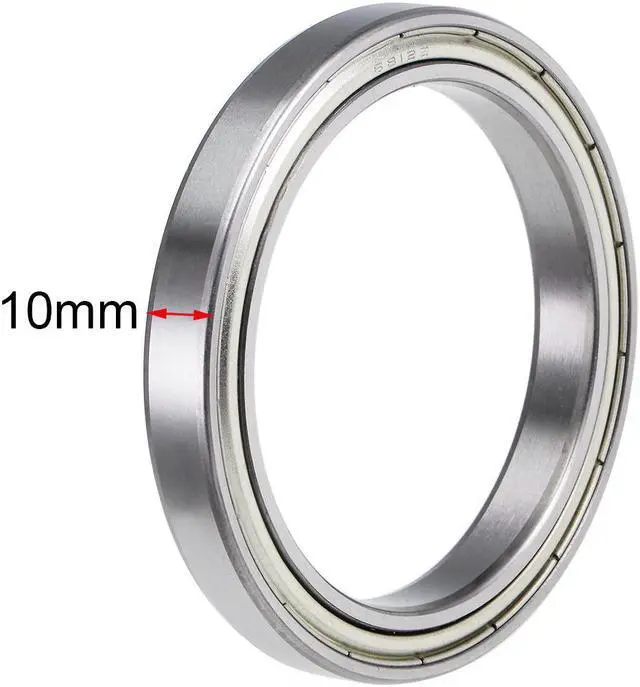

Thickness: 10mm
Dynamic Load Rating (Cr): 11500N
Static Load Rating (Cor): 10600N
Accuracy Class: P0 (ABEC1)
Noise Level: Z2

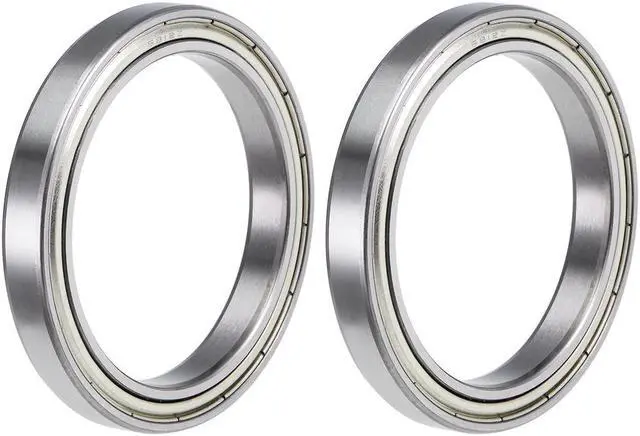

Package Contents: 2 Pcs
