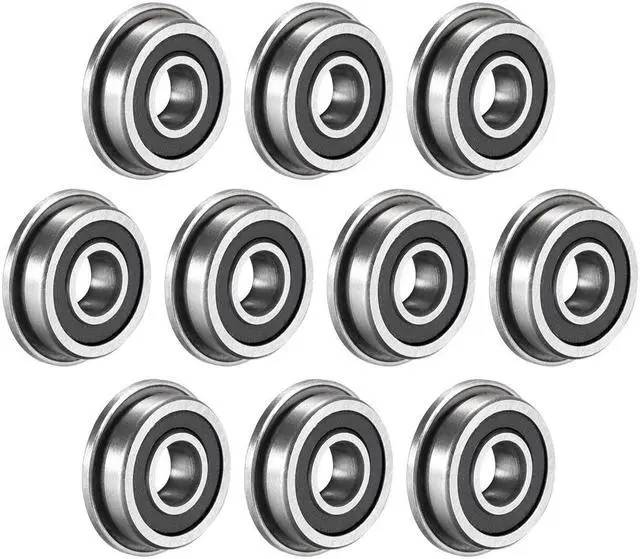

    F695-2RS Flange Ball Bearing 5x13x4mm Double Sealed (GCr15) Chrome Steel Bearings 10pcs

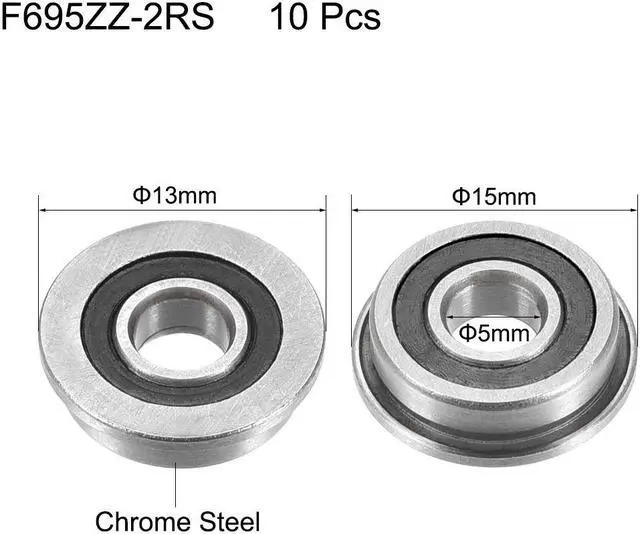

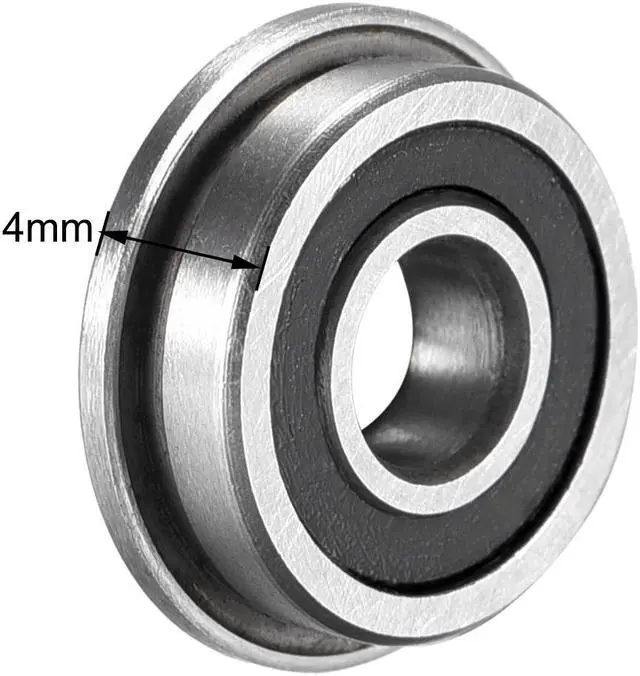

    • F695-2RS (I.D.=5mm, O.D.=13mm, Thickness=4mm, Flange Dia.:15mm)
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    NOTE

    Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

    Description:

    • Single-row, pre-lubricated, normal accuracy.
    • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
    • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
    • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
    • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

    Selection Guide:

    Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

    Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

    KEY_TAB

    Specification:

    Model: F695-2RS KEY_TAB Shielded Type: Double SealedInner Race/Outer Race Material: Chrome Steel (GCr15)Cage Material: Stamping SteelInner Diameter (d): 5mmOuter Diameter (D): 13mmThickness (B): 4mmFlange Dia.: 15mmFlange Thickness: 1mmDynamic Load Rating (Cr): 916NStatic Load Rating (Cor): 346NAccuracy Class: P0 (ABEC-1)Noise Level: Z1Number of Pack: 10 Pcs
