NOTE
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
KEY_TAB
Description:- Single-row, pre-lubricated, normal accuracy.
- Deep Groove Ball Bearings are one of the most widely used rolling bearings.
- With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
- Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
KEY_TAB
Selecting Guide:Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
KEY_TAB

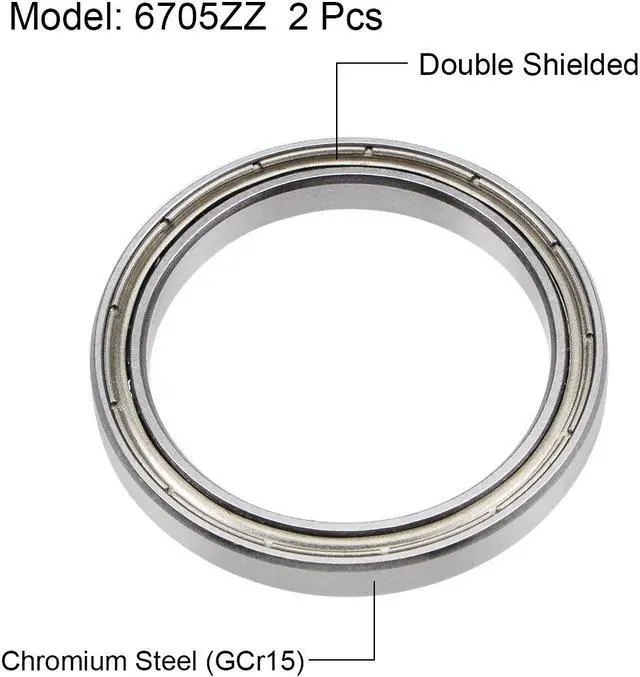

Specification:Model: 6705ZZ
Seal Type: Double Shielded
Rolling Ball Material: Chromium Steel (GCr15)
Cage Material: Stamping Steel

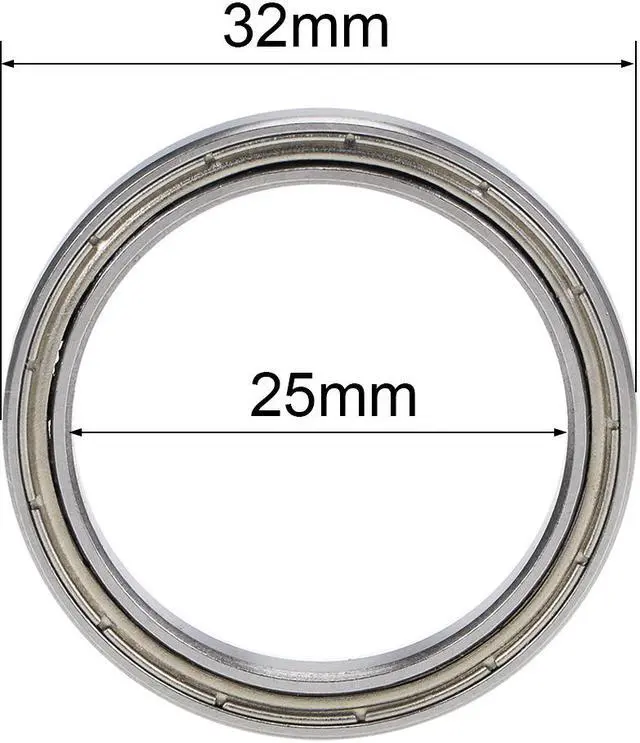

Inner Diameter: 25mm
Outer Diameter: 32mm

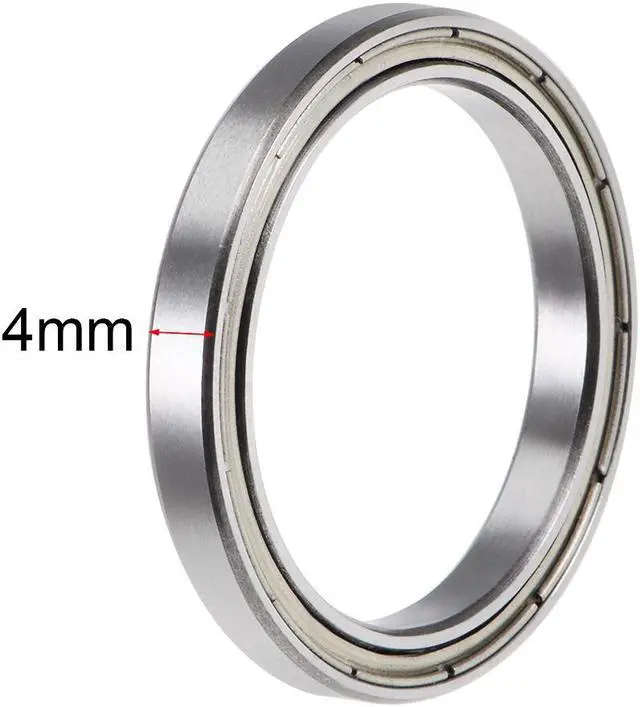

Thickness: 4mm
Dynamic Load Rating (Cr): 1100N
Static Load Rating (Cor): 838N
Accuracy Class: P0 (ABEC1)
Noise Level: Z2

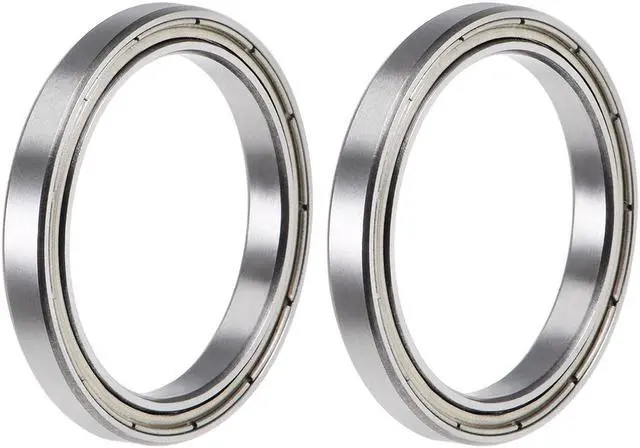

Package Contents: 2 Pcs
