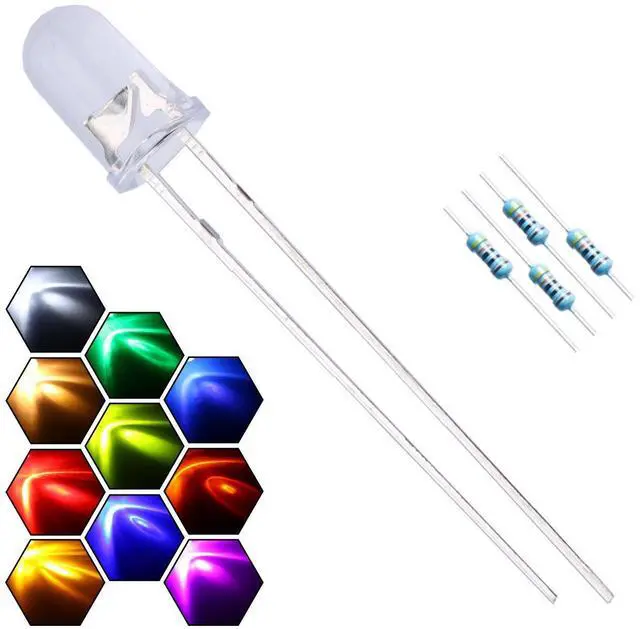

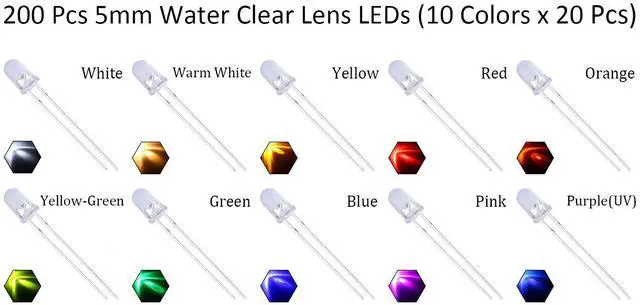

200pcs 10 Colors x 20pcs 5mm LED Light Emitting Diode Assorted Kit 29mm Lead Clear Round Lamp White Red Blue Green Yellow UV Bright LEDs Bulb +300pcs Resistors for DC 6-12V Lights
- Product Overview: 200 pcs LED Diodes + 300 pcs Resistors
- Product Features: For Each Color ) / 5mm Round Clear Lens / 29mm Long Lead

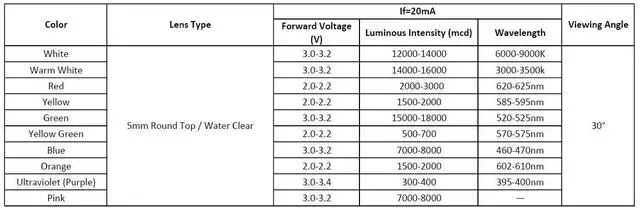

- Product Parameters: Red,Yellow,Orange,Yellow-Green: DC 2.0V; Other Colors: DC 3.0V (IF=20mA) / 0.06 Watts / 2pin / DIP LEDs
- Product Parameters: Luminance Brighter Up To +20% / 30° Viewing Angle / Single LED Diodes Wight: 0.29g
- Accessories: 200pcs 430ohm + 100pcs 470ohm (For DC 6-12V) 1/4 Watt Metal Film Resistors Included / ±1% Tolerance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
* Low Energy Consumption And Low Heat.

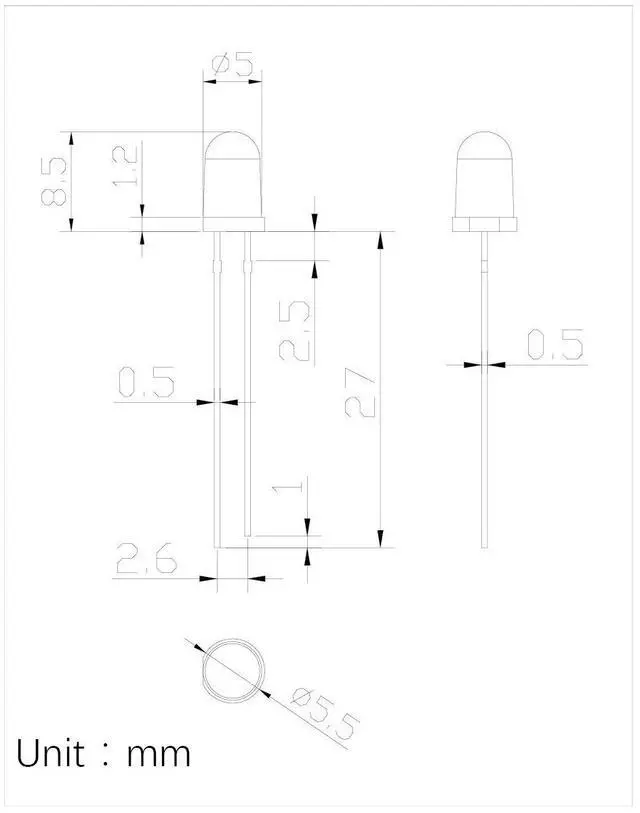

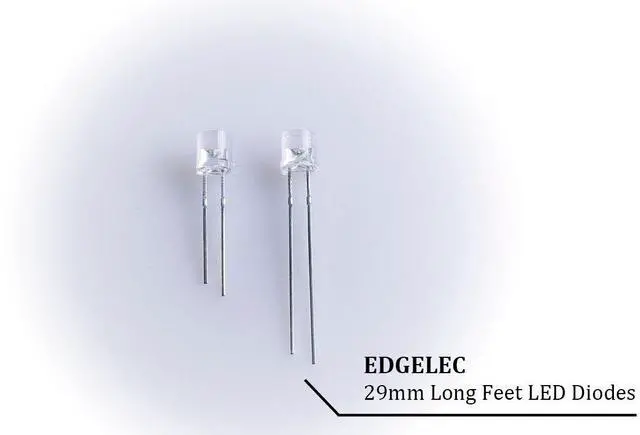

* Industrial Standard Size,29mm Long Lead for widely used and convenient for cperation.
* Soldering Condition (Manual Soldering):Less Than 3 Seconds With 482°F-527°F
* Soldering Condition (Reflow Soldering):Less Than 5 Seconds With 500°F
* Storage Conditions: Drying Preservation And Keep Away From Fire Or High Temperature.
* Get other LED models? Please search "EDGELEC Diodes".
