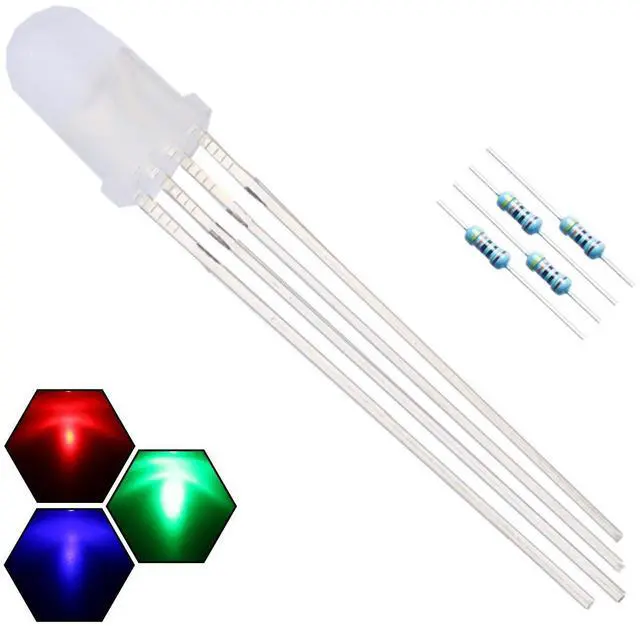

100pcs 5mm RGB Tri-Color (Red Green Blue Multicolor) 4Pin LED Diodes Common Cathode Diffused Round Lens 29mm Long Lead +300pcs Resistors (for DC 6-12V) Included,Light Emitting Diodes
- Product Overview: 100 pcs LED Diodes + 300 pcs Resistors

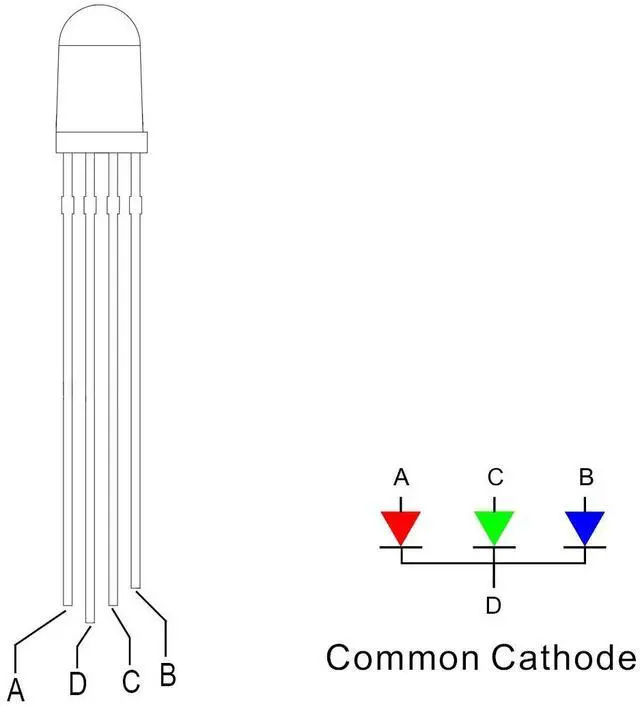

- Product Features: Tri-Color (Red/Green/Blue) Lights / Common Cathode / 5mm Diffused Round Lens

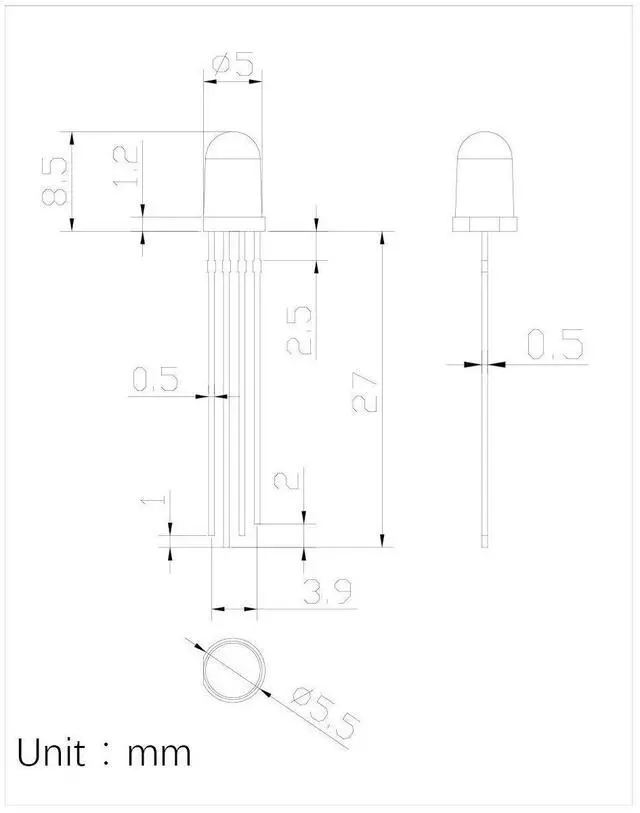

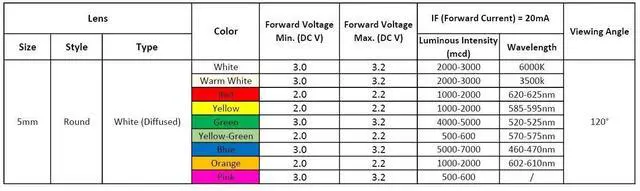

- Product Parameters: 29mm Long Lead / Red: DC 2.0-2.2V; Blue&Green: DC 3.0-3.2V (IF=20mA) / 0.06 Watts / 2pin / DIP LEDs
- Product Parameters: Luminance Brighter Up To +20% / 120° Viewing Angle / Single LED Diodes Wight: 0.38g
- Accessories: 200pcs 430ohm + 100pcs 470ohm (For DC 6-12V) 1/4 Watt Metal Film Resistors Included / ±1% Tolerance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
* Low Energy Consumption And Low Heat.

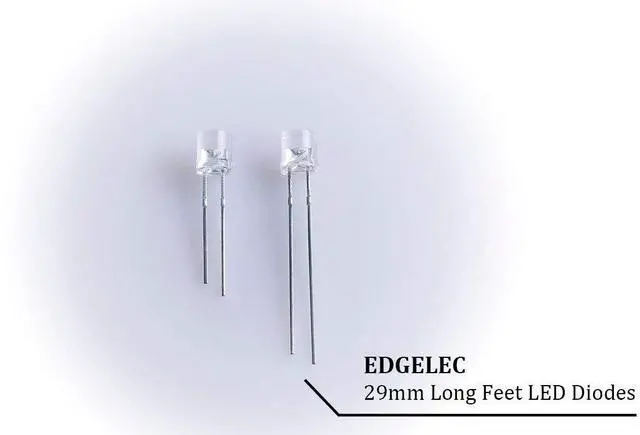

* Industrial Standard Size,29mm Long Lead for widely used and convenient for cperation.
* Soldering Condition (Manual Soldering):Less Than 3 Seconds With 482°F-527°F
* Soldering Condition (Reflow Soldering):Less Than 5 Seconds With 500°F
* Storage Conditions: Drying Preservation And Keep Away From Fire Or High Temperature.
* Get other LED models? Please search "EDGELEC Diodes".
