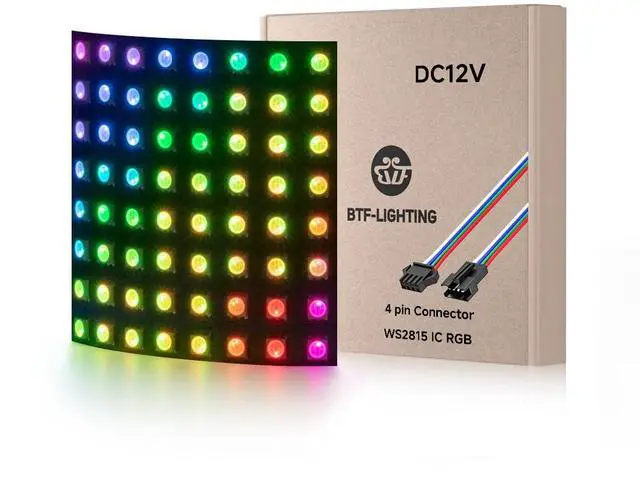

WS2815 LED Matrix Panel
Parameter Table

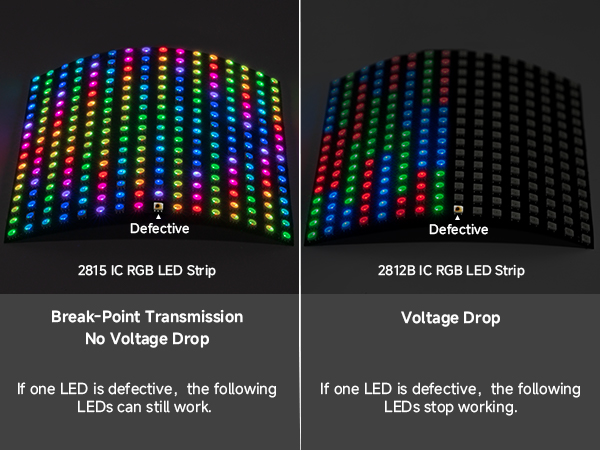

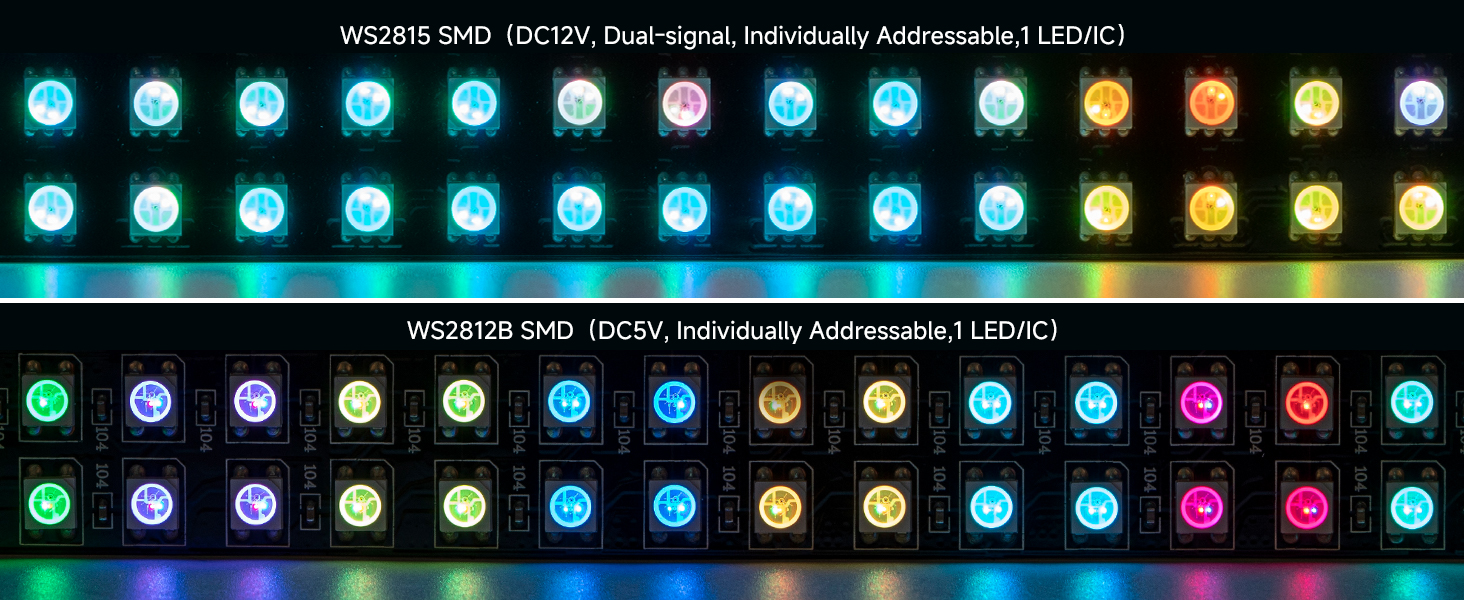

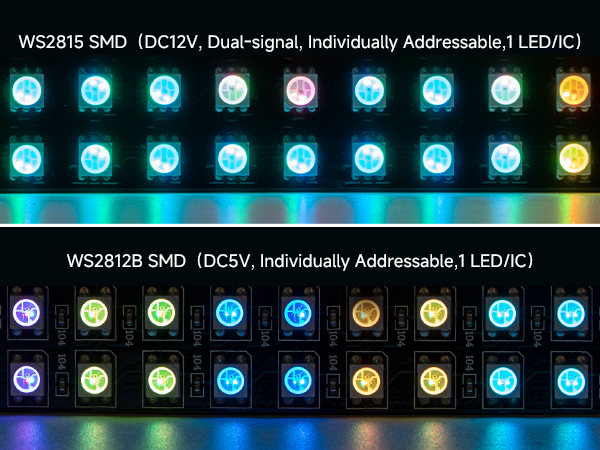

What are the key differences in comparison to the WS2812B LED Matrix?

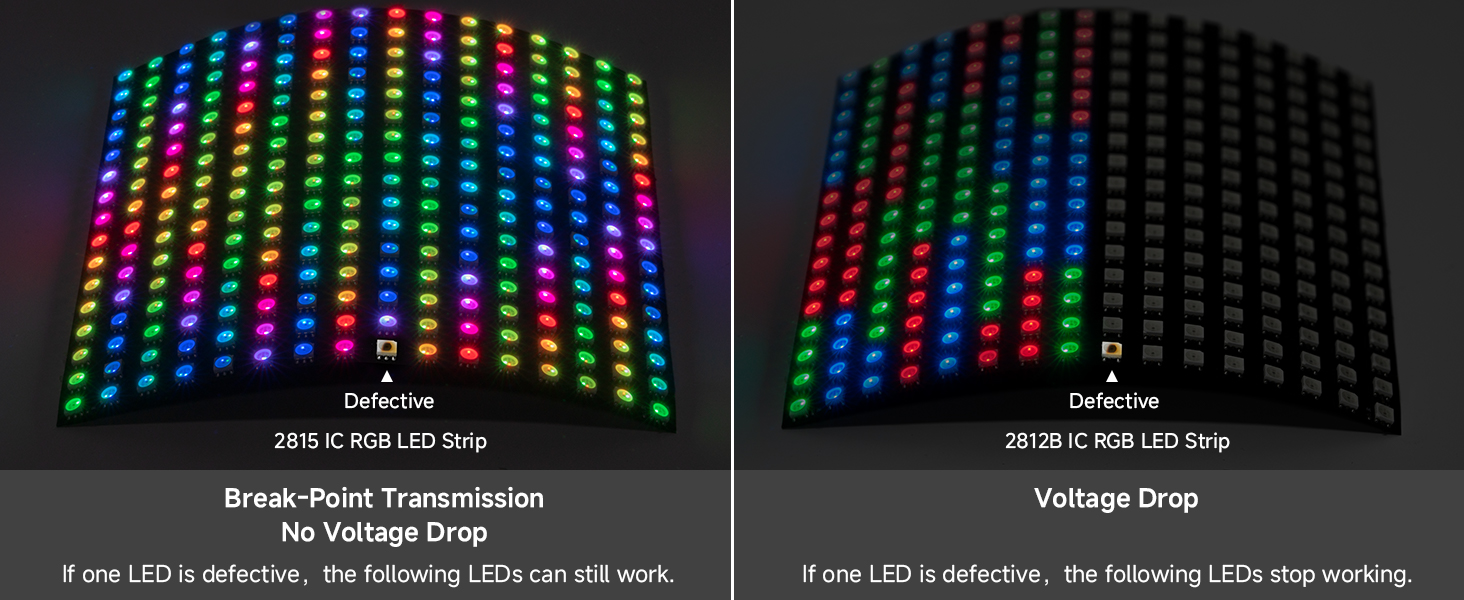

This Martix uses the WS2815 IC. A key feature is that if one LED fails, the next one will continue to light up seamlessly, ensuring uninterrupted operation. Additionally, it operates on a 12V power supply
How does this product differ from a traditional RGB matrix?
A traditional RGB Matrix displays a single color across the entire screen, whereas the WS2815 Matrix allows each LED to be independently controlled, making it far superior for DIY projects.
How many pins does the connector on this WS2815 Matrix have?
It has a 4-pin connector.
WS2815 LED Matrix Panel

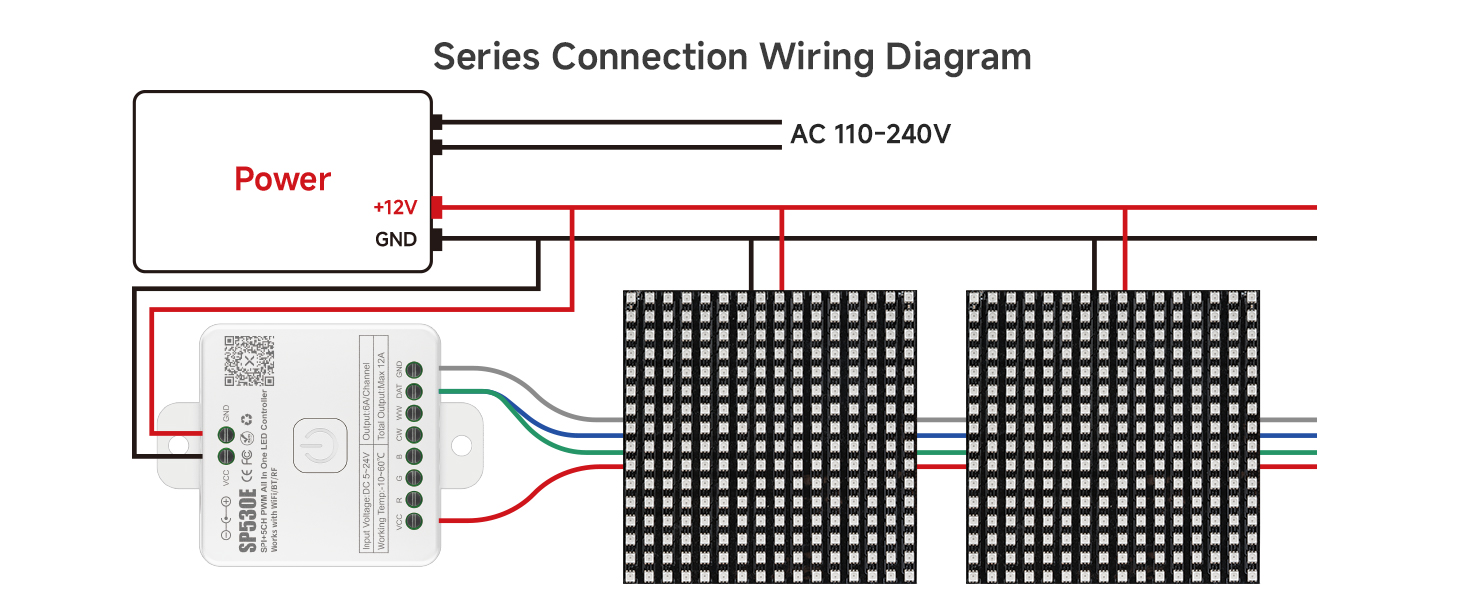

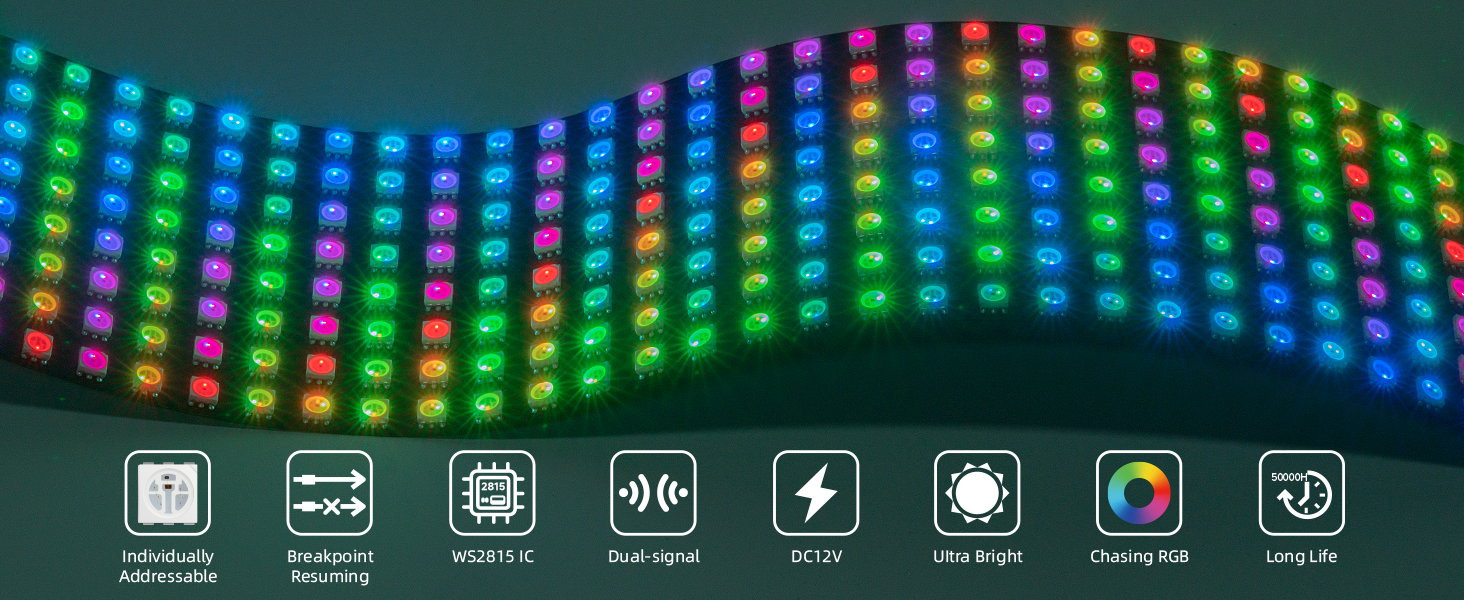

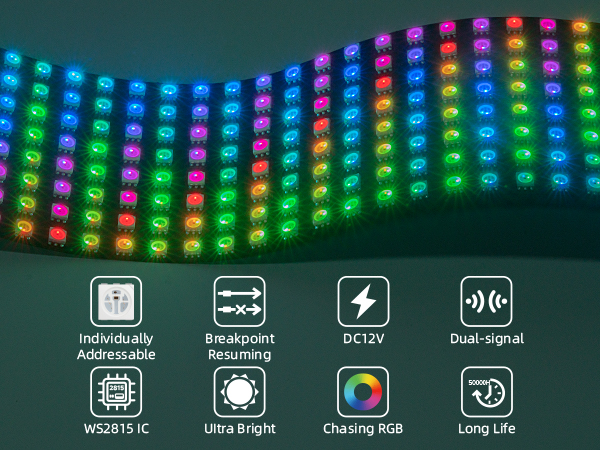

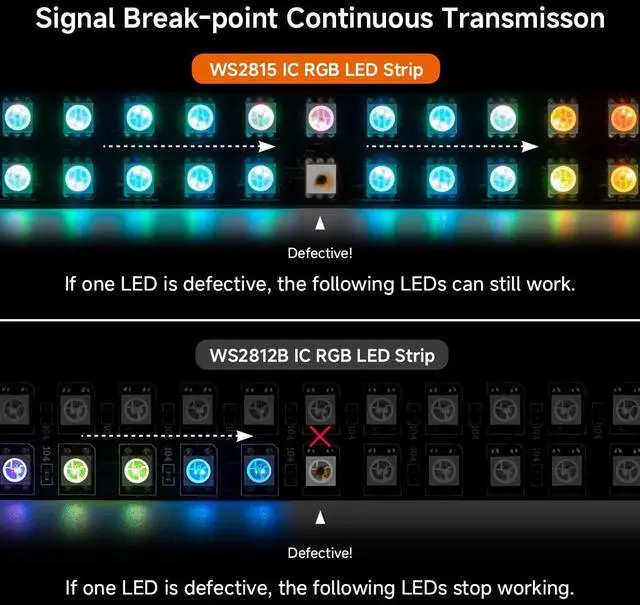

Dual Signal

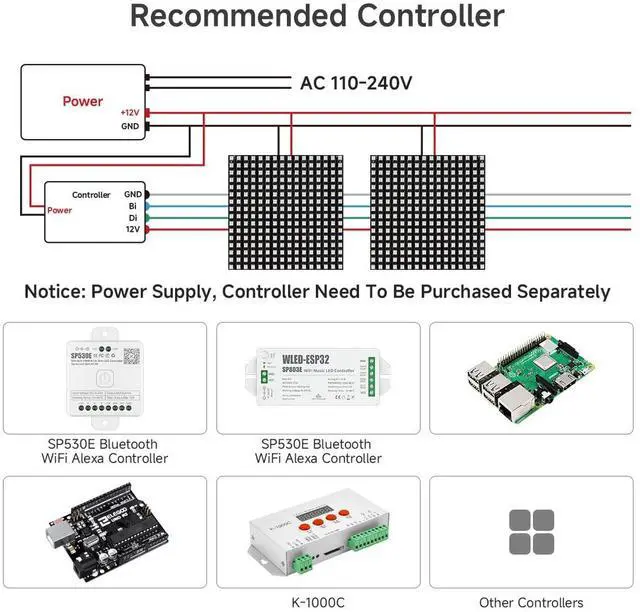

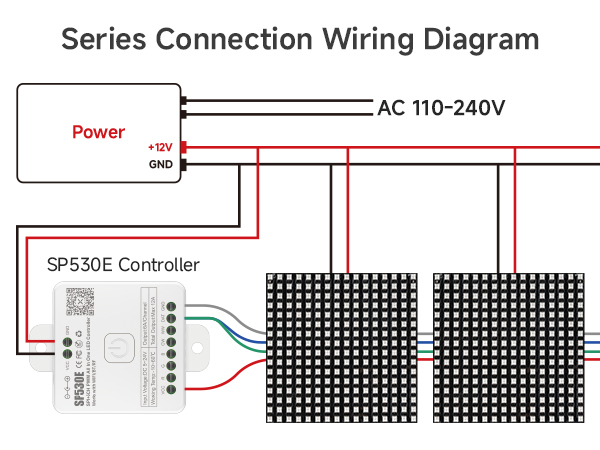

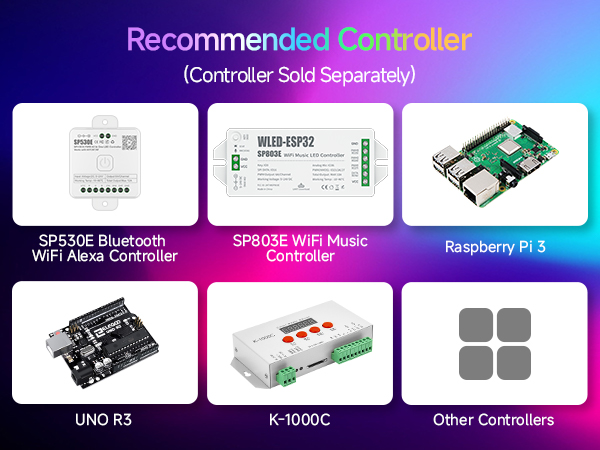

Recommended Controller

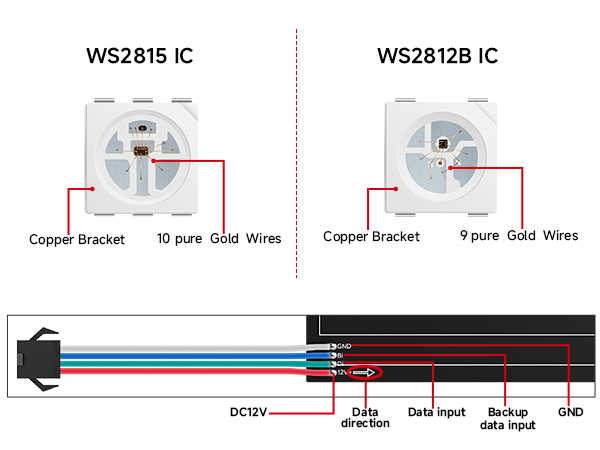

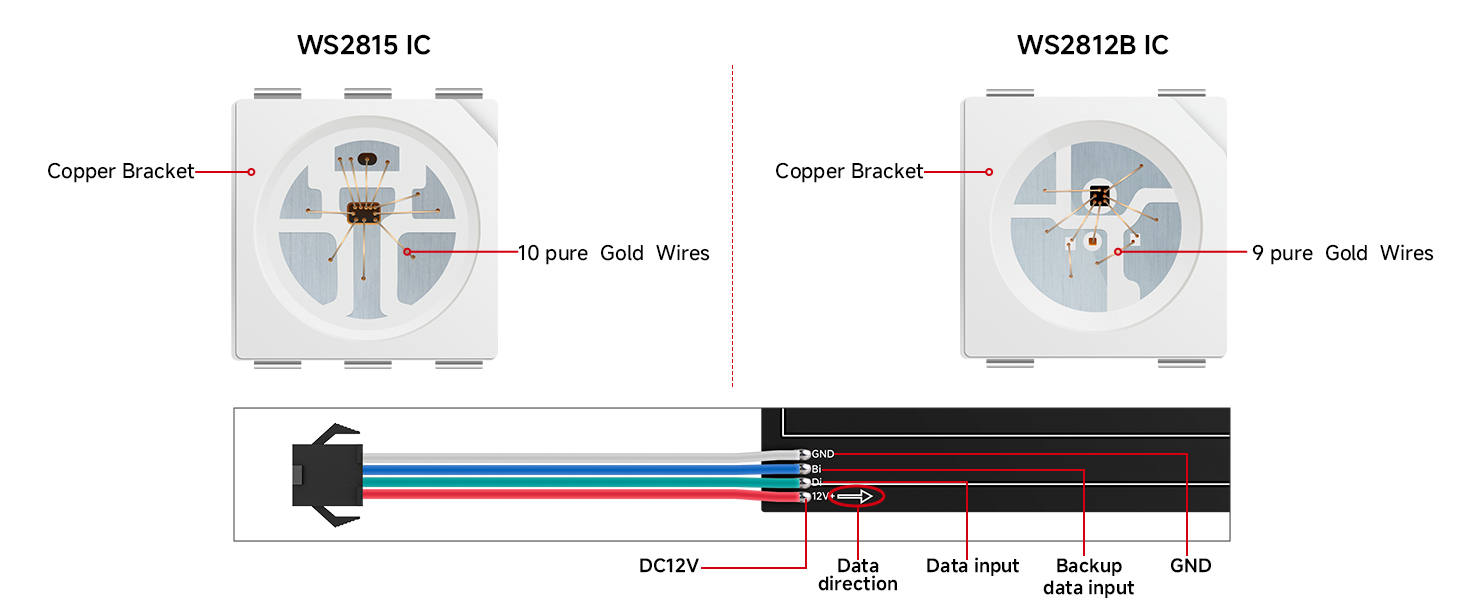

IC Chip

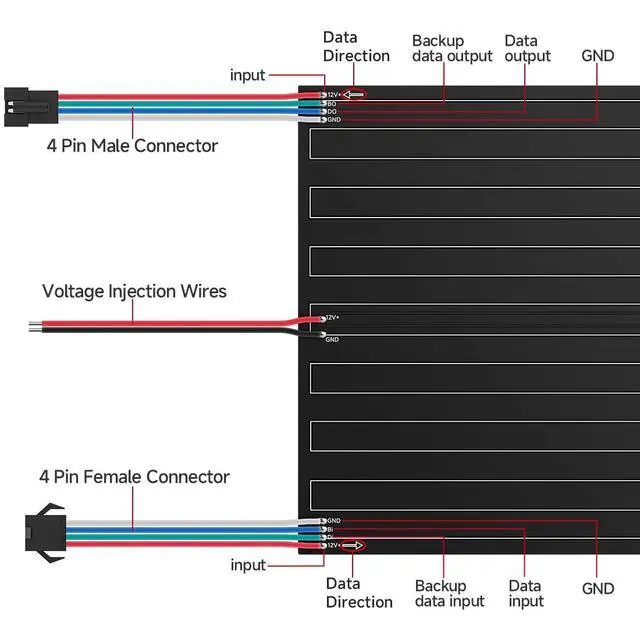

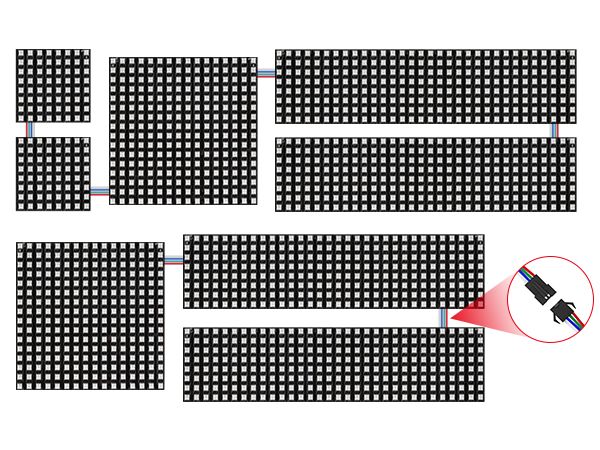

4 Pin Connector

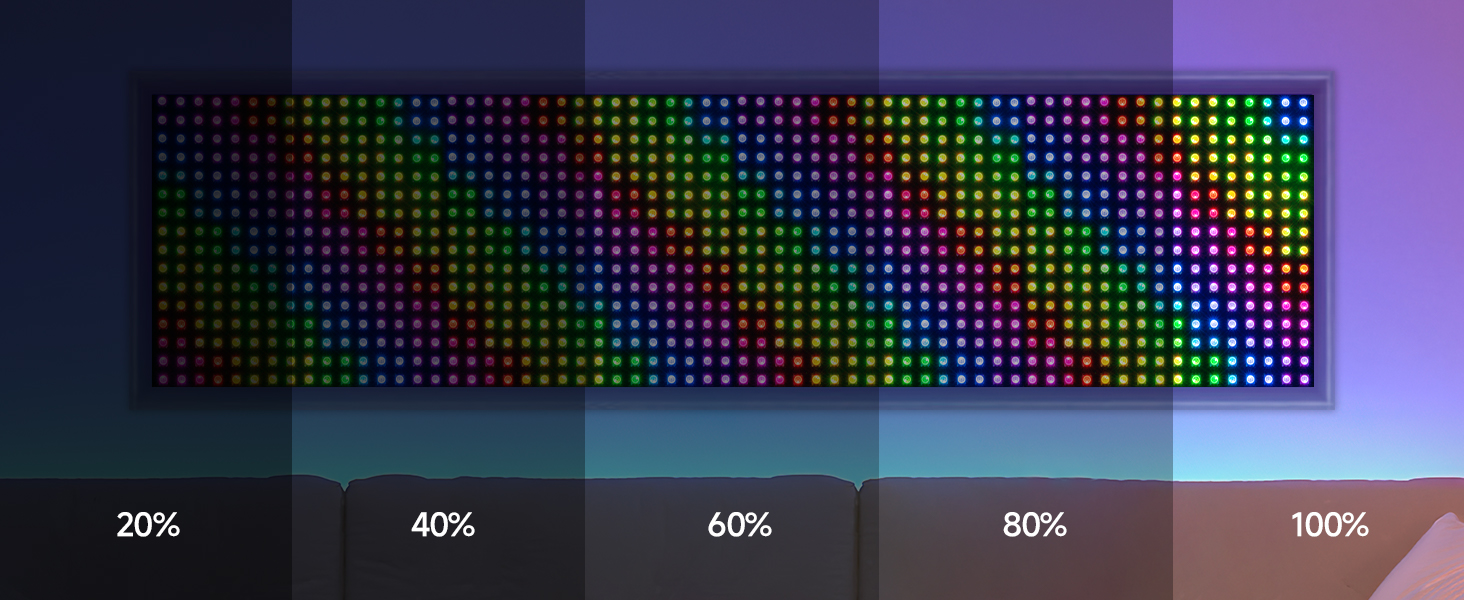

Brightess Adjusting
Parameter Table
| LED Panel Type | WS2815 LED Matrix Panel |
|---|---|
| IC type | WS2815 IC |
| FPCB board color | Black |
| Input Voltage | DC12V |
| LED Panel Quantity | 8X8/16X16/8X32 |
| Color order | G R B(NOT RGB) |
| Waterproof level | IP30 |

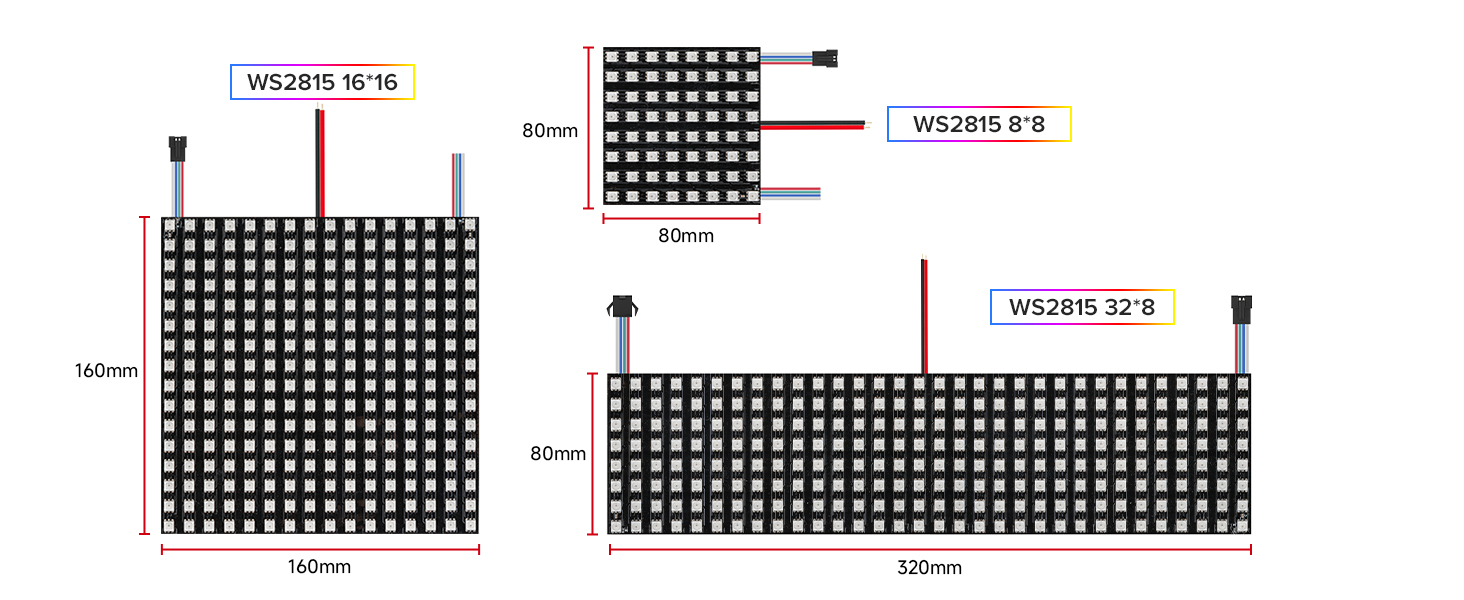

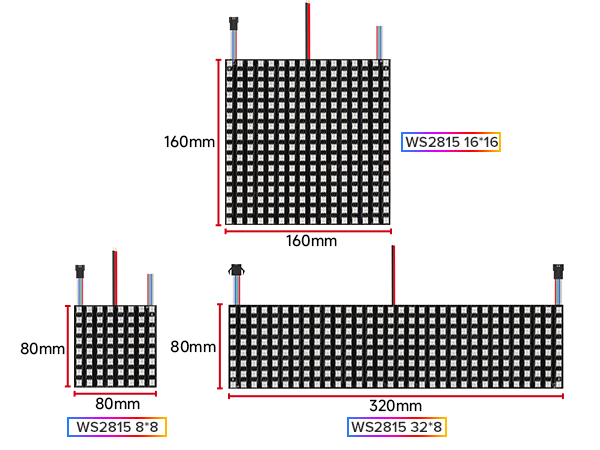

| LED Strip Width | 8X8: 80mm; 16X16: 160mm; 8X32:320mm |
| Operating Temperature | -4?~104?(-20?~+40? ) |
| Color | Full color 24-bit |
| Recommended power supply | DC12V5A (Power supply or controller is not included) |
| Length x Width x Height | 8X8:80mmx80mmx0.25mm 16X16:160mmx160mmx0.25mm IP67:80mmx320mmx0.25mm |
| Wave Length(nm) | Red(620-630) ; Green(515-530) ; Blue(465-475) |
| Lifespan | 50000 Hours |

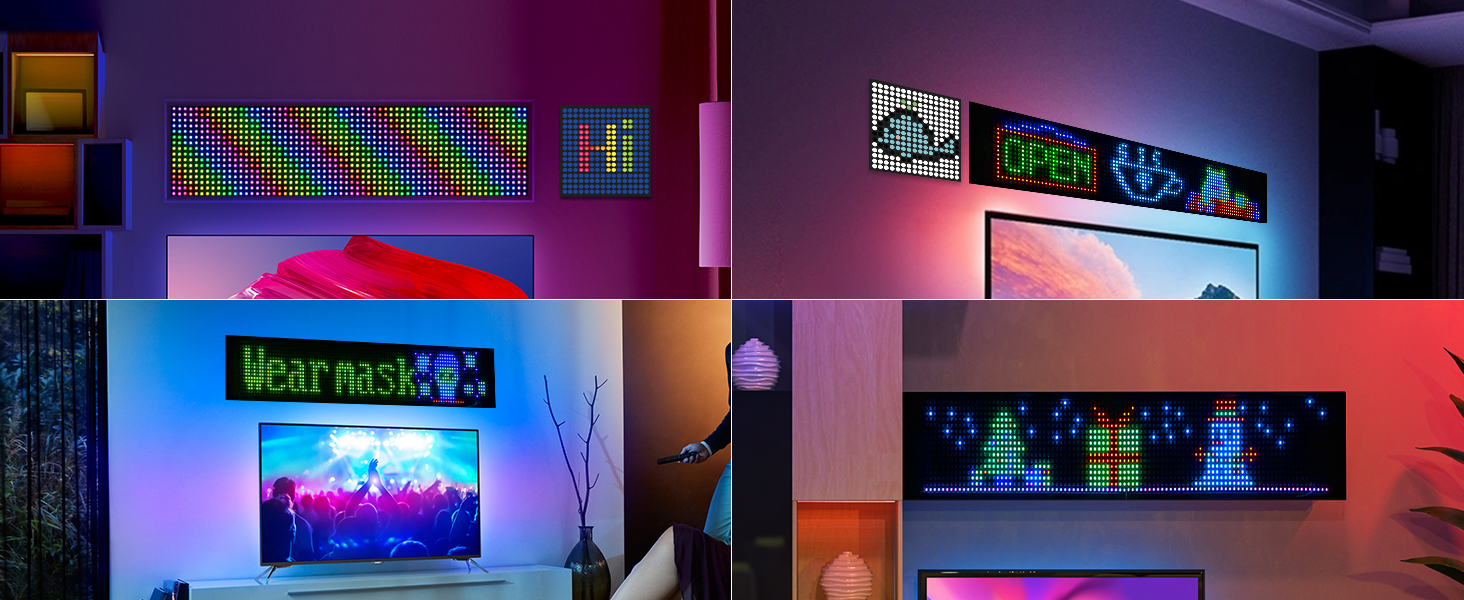

Widely Application
Safe
- Low voltage
- Hand touchable
What are the key differences in comparison to the WS2812B LED Matrix?
This Martix uses the WS2815 IC. A key feature is that if one LED fails, the next one will continue to light up seamlessly, ensuring uninterrupted operation. Additionally, it operates on a 12V power supply
How does this product differ from a traditional RGB matrix?
A traditional RGB Matrix displays a single color across the entire screen, whereas the WS2815 Matrix allows each LED to be independently controlled, making it far superior for DIY projects.
How many pins does the connector on this WS2815 Matrix have?
It has a 4-pin connector.
