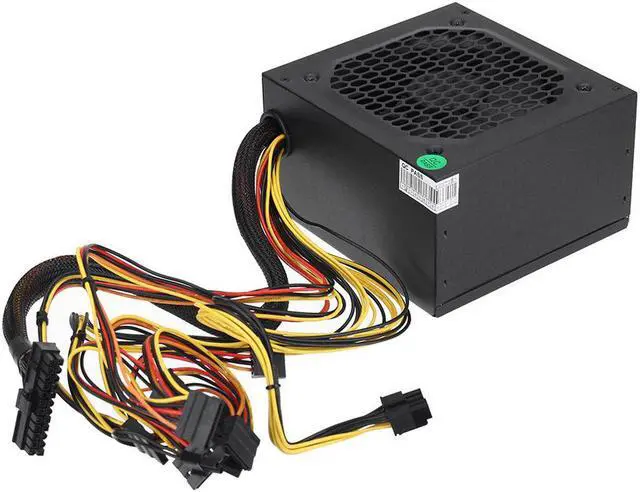

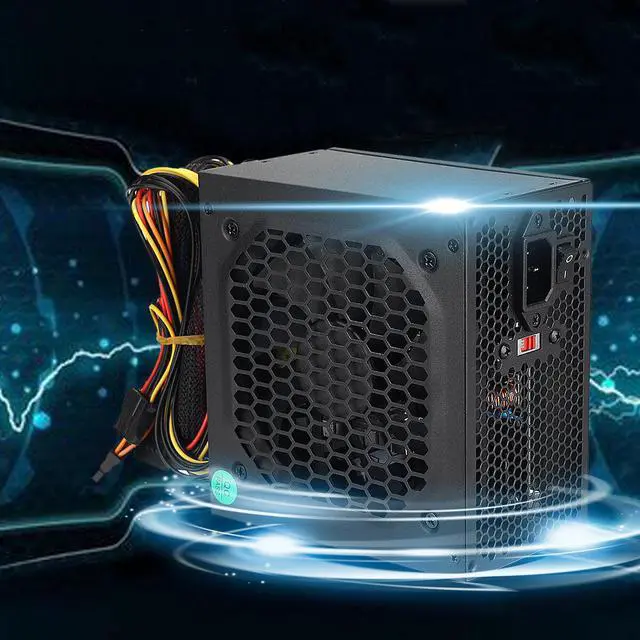

650W Power Supply 12cm Fan 8 Pin PCI SATA 12V Computer Power Supply

650W Power Supply 12cm Fan 8 Pin PCI SATA 12V Computer Power Supply

Features:

Peak power 650W , suitable for high-end computer configuration in the market.

The power supply adopts INTEL 12V2.3 version dual 12V design, supports INTEL and AMD quad-core CPU independent graphics cards, supports wide power supply voltage 110-230Vac

Built-in PFC, magnetic amplifier circuit, high efficiency, low continuous wave

Supports INTEL, AMDATI, Nvidia, VIA, SIS, etc.

Supports SATA and PATA multiple hard disk arrays

Six-fold protection function: over-voltage, under-voltage, over-current, overload, short-current, lightning protection

Support large chassis, large motherboard, large graphics cards within 1080, gaming graphics cards, no pressure on the back line

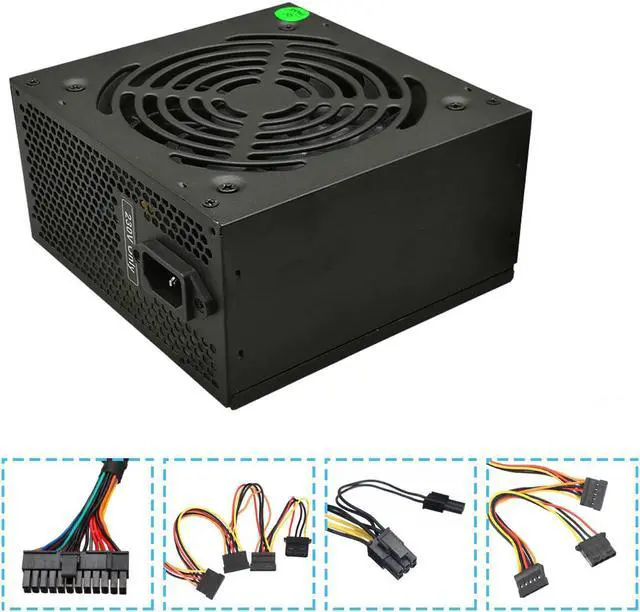

One motherboard interface 24P, two CPU interfaces 4P two graphics interfaces 6 + 2P two, hard disk SATA interfaces four, two D-type interfaces large 4P

Wires are made of wear-resistant materials for greater safety

100% product quality inspection test to ensure quality

Using 12cm hydraulic bearing fan, efficient and energy-saving silent fan, standby power 1W.

Intelligent temperature control circuit design, automatically adjust fan speed and extend service life.

Specifications:

Material: Aluminum alloy Shell + Copper cable

Color: Black

Product Size: 15x14x8.6cm/5.9"x5.5"x3.3"

Fan diameter: 12cm/4.7"

Cable Length: About140cm/55.1"

Output Line Length: About 50cm/19.7."

Power supply standard: ATX 12V 2.31

Input Voltage: 110~230V (Manually switching voltage)

Interface: 1x24P+1x8P+(6+2P to 6+2P )+(2*4Pin+4*SATA)

Output Voltage: 12V 16A

Peak Power: 650W

Rated power: 500W

Efficiency: 80%

Suitable for: Desktop computer
