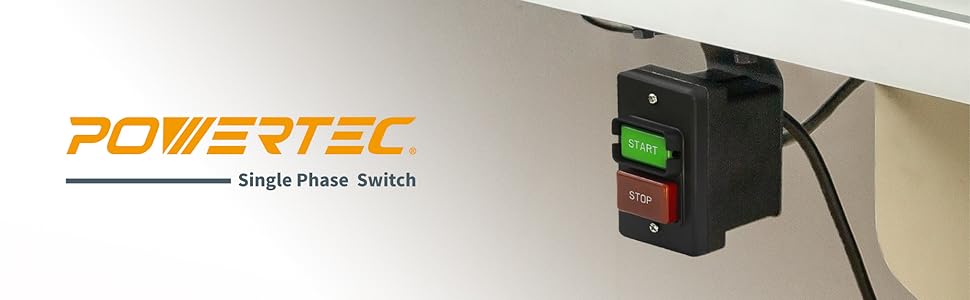

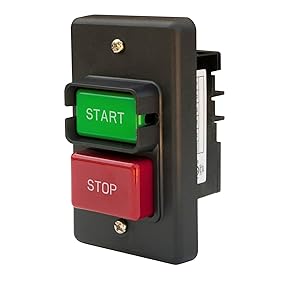

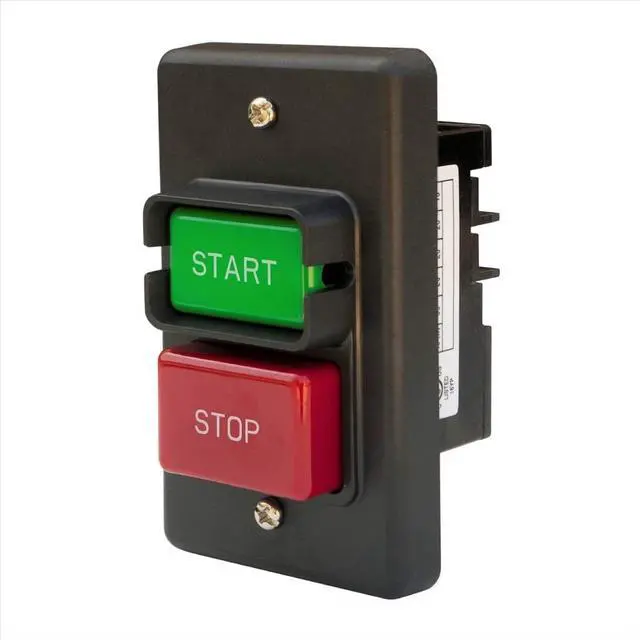

The Single Phase On/Off Switch by POWERTEC.

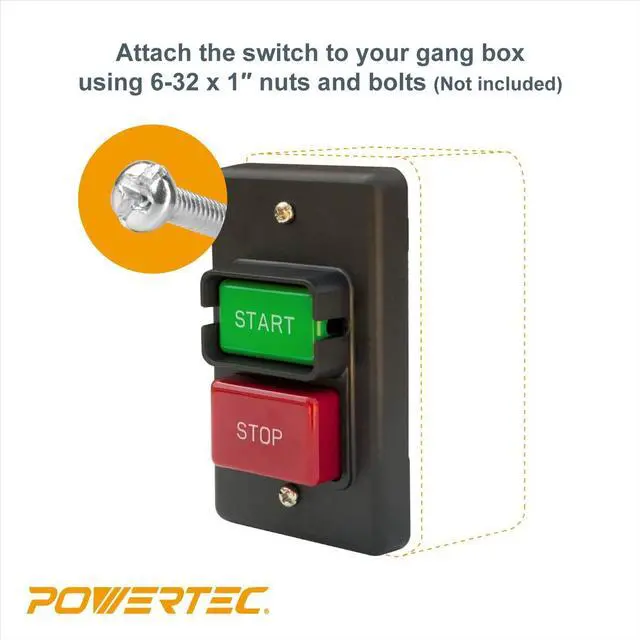

This single phase on/off switch is intended to provide you with a high quality safeguarding component for your workshop and power tool needs. It features a simplistic, yet straightforward design that can be easily wired (installed) into deep gang boxes or standard gang boxes with an extension ring.

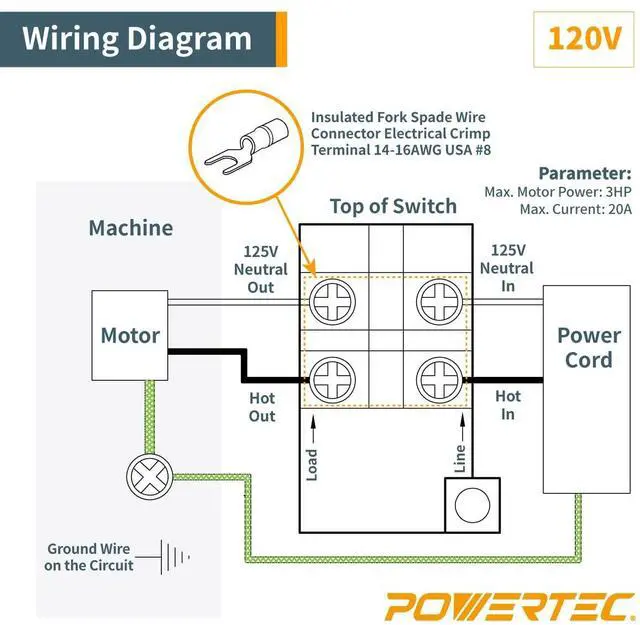

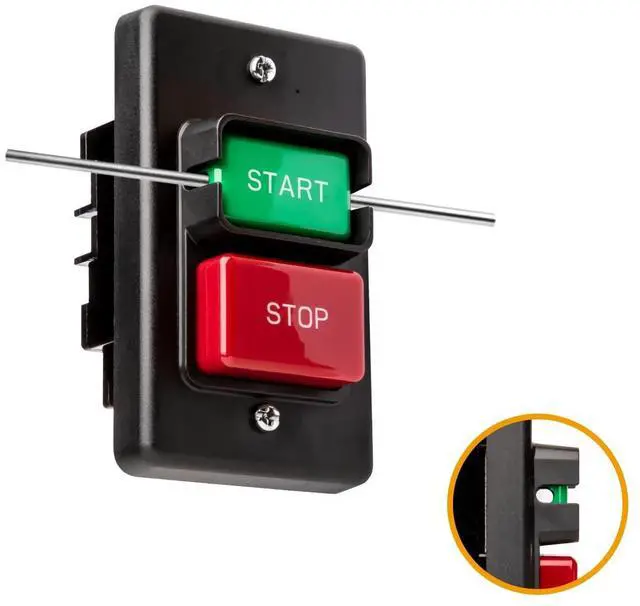

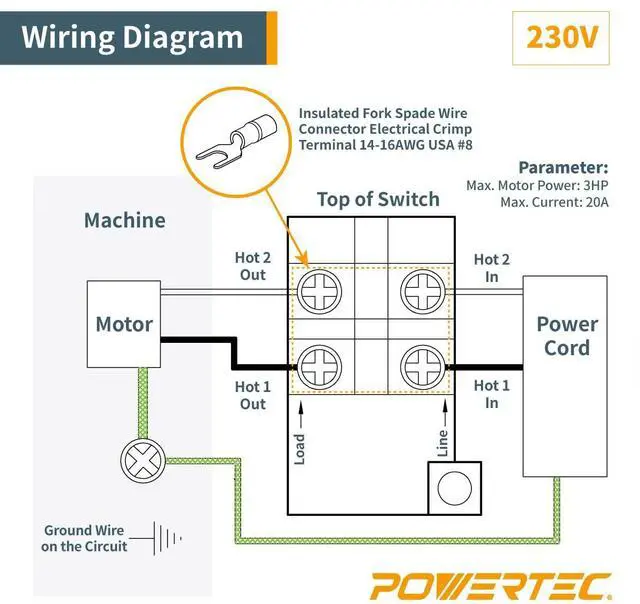

The power switch has 2 throws so one can switch both hot and neutral or both phases of a 230V line. It features an easy-to-install mounting design and comes with color-coded start stop push buttons that possess an indented/bump style profile to signify the switch has been opened or closed. For added safety measures, the start button can be locked to prevent unauthorized use.
SPECIFICATIONS
- Dual Voltage: 120V/230V; Single Phase
- Rated Current: 2 HP / 28 Amps at 120V
- Rated Current: 3 HP / 16 Amps at 230V
- Approved according to UL508 E195428

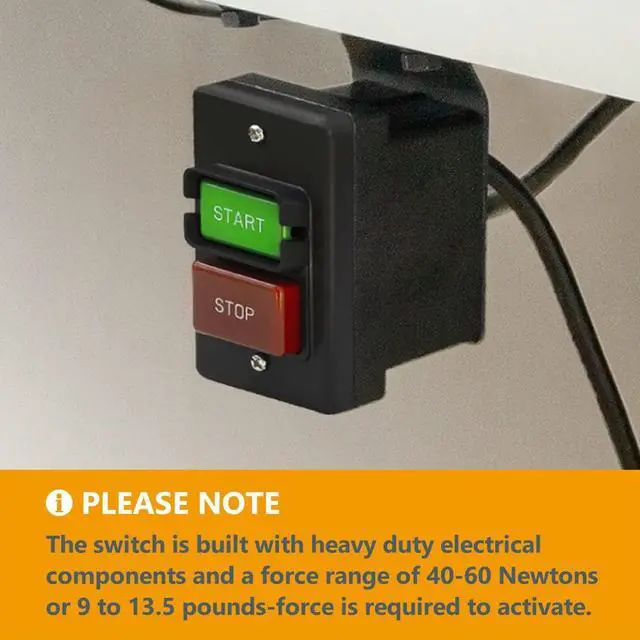

Please Note: The switch is built with heavy duty electrical components and a force range of 40-60 Newtons or 9 to 13.5 pounds-force is required to activate.
It’s the perfect safety feature for:
- Table Saws
- Drill Press
- Band Saw
- Sanders and Jointers
- Dust Collection Systems for Woodworking
Single Phase Power Switch Specifications
- Type: Start Stop Push Button
- Operation Mode: ON-OFF-ON
- Dual Voltage: 120V/230V
- Rated current: 2 HP / 28 Amps at 120V
- Rated current: 3 HP / 16 Amps at 230V
- Approved By: UL, TUV, CSA, CE, ETL standards

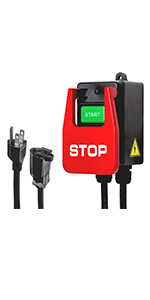

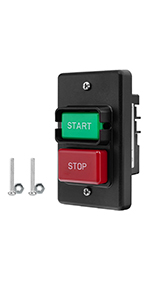

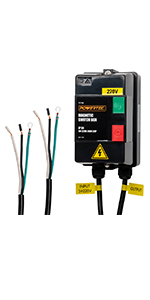

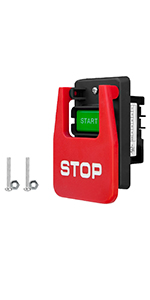

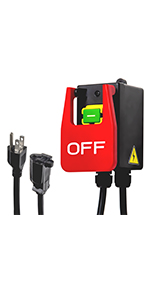

 POWERTEC 71651 110/230V Paddle Switch with Screws |  POWERTEC 71652 110/230V Single Phase Switch with Screws |  POWERTEC 71740 Prewired 220~240V Magnetic Switch Box |  POWERTEC 71754 120V Safety Power Tool Paddle Switch w/ Heavy Duty Cords |  POWERTEC 71755 120V, 9A On/Off Magnetic Paddle Switch w/ Standard Cords | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| VOLTAGE | 120V/230V | 120V/230V | 220-240V | 120V | 120V |
| SAFETY KEY / LOCK | ? | ? | - no data | ? | ? |
| Switch Style | Paddle switch | Push button | Push button | Paddle switch | Paddle switch |
| Current Rating | 2 HP / 28 Amps at 120V | 3 HP / 16 Amps at 230V | 2 HP/28 Amps at 120V | 3 HP/16 Amps at 230V | 220-240V, 21-25 Amps, rated for 3 horsepower motors | 1-1/2 HP/15 Amps at 120 volts | 1/2 HP/9 amps at 120 volts | for motor load capacity 1/2HP / 9 Amp |
| Fits POWERTEC 71834 Switch Box | ? | ? | - no data | - no data | - no data |
POWERTEC is a US manufacturer of woodworking machines, wood work accessories, and a wide assortment of OEM replacement parts. We are committed to exceeding expectations, while bringing the best innovations, technologies, and product development to the industry.
