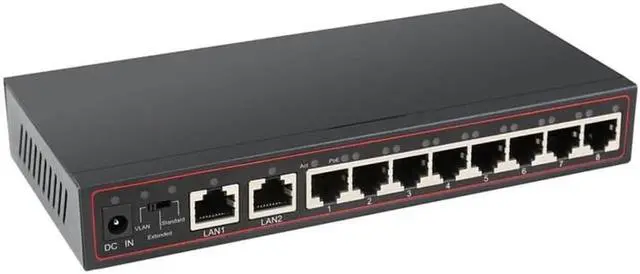

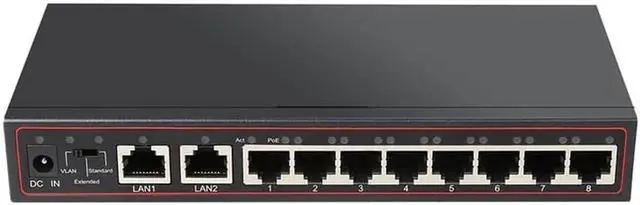

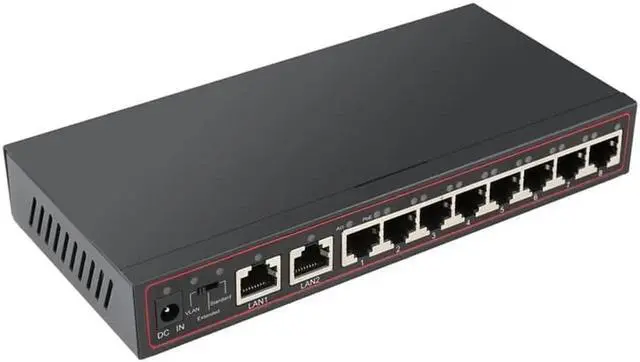

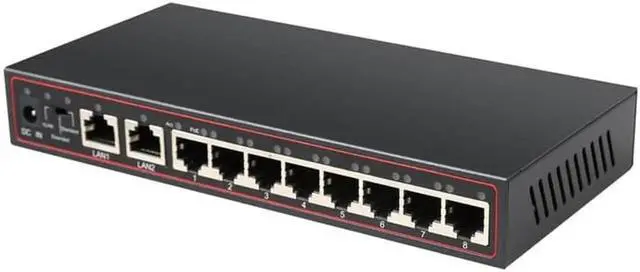

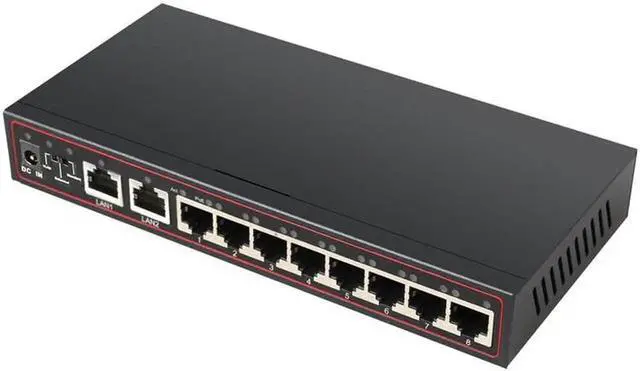

10 Ports POE Switch 52V Ethernet Network Switch 8 PoE Switch Injector for IP camera/Wireless AP/CCTV Camera System

Features:

1.Ten 10/100Mbps Power Over Ethernet Ports

2.1-10 Port: 10/100M auto sensing RJ45 port

3.Max. 30W for each PSE/PoE Port (Port 1~8)

4.Support long transmission distance at 250 meters

5.Switch Mode:

a.Mode 1(Standard): Port 1~10: 10/100M auto-sensing @ 100 meters

b.Mode 2(Extend): Port 1~8: 10M @ 250 meters; Port 9~10: 100M @ 100 meters

c.Mode 3(VLAN): Port 1~8: 100M @ 100 meters; Port 9~10: 100M @ 100 meters; Ports

6. 1 to 8 will be isolated from each other, but will still be able to communicate with uplink port 9 and 10.

7. Auto-detect full/half-duplex, MDI/MDI-X

8. IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-duplex

9. Store and forward

10. Fanless design

11. Rugged metal enclosure

Industry Standards IEEE 802.3af/at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x.

Performance Bandwidth 1.6G,Buffer Size 1M,MAC Size 1K.

Compatible Networks 10/100 Mbps.

Flow Control Full duplex flow control.

Switching Architecture Store-and-Forward.

Connector(s) Connector Type(s) 10 x 10/100M RJ45 Ports.

Port 1~8: IEEE 802.3AF/AT PoE port.

Software OS Compatibility OS Independent; No additional drivers or software required.

Indicators LED Indicators

1 Power (Green)

1 Extend (Green)

1 VLAN (Green)

8 PoE Status (Blue)

10 Link/Activity (Green)

Power Input Voltage 52V DC,Power Source DC Adapter Included.

Environmental Humidity 20~80% RH

Operating Temperature 5°C to 50°C (41°F to 122°F)

Storage Temperature -25°C to 70°C (-13°F to 158°F)

Physical Characteristics

Product Height 29mm

Product Length 190 mm

Product Width 92 mm

Product Weight 398.9 g

Color Black

Enclosure Type Steel

Package Included:

1 x 10 Port PoE Switch

1 x Power Adapter
