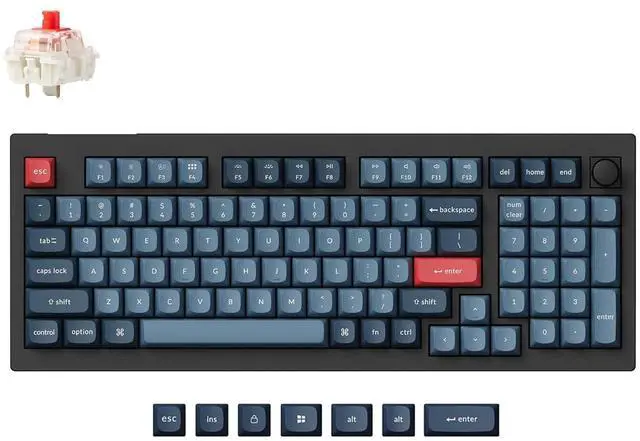

Keychron V5 Max Custom Wireless Mechanical Gaming Keyboard with Number Pad, 96% Layout QMK/VIA 2.4 GHz/Bluetooth 5.1/Wired, RGB Backlit Hot-Swappable Gateron Red Switch for Mac Windows Linux

Product description Keychron V5 Max The V5 Max is a compact 96% Layout QMK/VIA wireless mechanical keyboard upgraded with a 2.4 GHz wireless connection, featuring a 1000 Hz polling rate (on both 2.4G and wired modes). Its gasket mount design, sound absorbing foam, double-shot PBT keycaps, and more take your typing experience to a new level, delivering heightened levels of comfort and productivity. Remap with QMK & VIA Simply connect the V5 Max to your device with a cable, drag and drop your favorite keys or macro commands to remap any key you want on any system (macOS, Windows, or Linux).

ARM Cortex-M4 32-bit STM32F402 MCU which is powerful, and equipped with 256K Flash will provide more flexibility for developers.
*Note: User can remap a key on wired mode only. Once it's done, the keymap will work on both wireless and wired modes. 2.4 GHz & Bluetooth Connection Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V5 Max via Bluetooth 5.1 to three devices. OSA Profile Double-shot PBT Keycaps Our unique OSA profile double-shot non-backlight shine through PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out. South-facing RGB LED Lights The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typists angle with the premium non-shine-through PBT keycaps installed. Hot-swappable The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typists angle with the premium non-shine-through PBT keycaps installed. Screw-In PCB Stabilizers Weve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. Bluetooth Connection Steps Slide the toggle switch to the Bluetooth position.

Hold Fn + 1 until the Bluetooth indicator flashes repeatedly. Enable Bluetooth on your device, search for the keyboard, and connect.
Bluetooth connection video: see troubleshooting guide for details. Specs Dimension 391.5 x 148.7 mm / 15.41 x 5.85 Inch Weight 925 g ± 10 g / 2.04 lbs Angle 3.5 ° / 7.1 ° / 9.5 ° Body Material ABS Plastic Plate Material PC Polling Rate 1000 Hz ( 2.4 GHz and wired) / 90 Hz (Bluetooth mode) Battery 4000 mAh Rechargeable li-polymer battery Compatible System Windows/macOS/Linux N-Key Rollover (NKRO) Yes for both wireless and wired modes Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc. Keycaps Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) Switches Gateron Jupiter Backlight South-facing RGB LED Stabilizer Screw-in PCB stabs BT Working Time Up to 100 hours (Lowest brightness) MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
