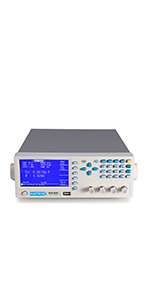

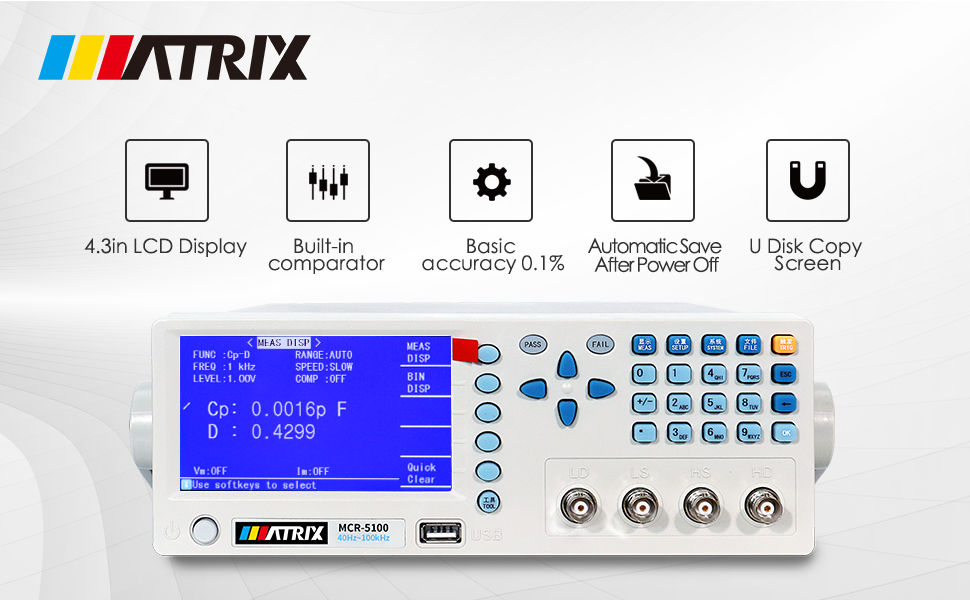

MCR-5000 Series Precision Digital LCR Meter
MCR5010 MCR5030 MCR5100 MCR5200
- A new generation of high precision and high stability of boutique MCR meter is MCR5010, MCR5100,MCR5200, the 4.3 inch 480*272 TFT display screen, display classical and intuitionistic.
- The series of equipment is highly applicable to the majority of manufacturers production inspection. And the series of equipment has a variety of output impedance model can be used for different manufacturers needs, its superior performance can be achieved business standards and military standards of a variety of tests (such as IEC and MIL).
Notice

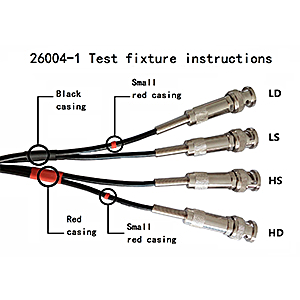

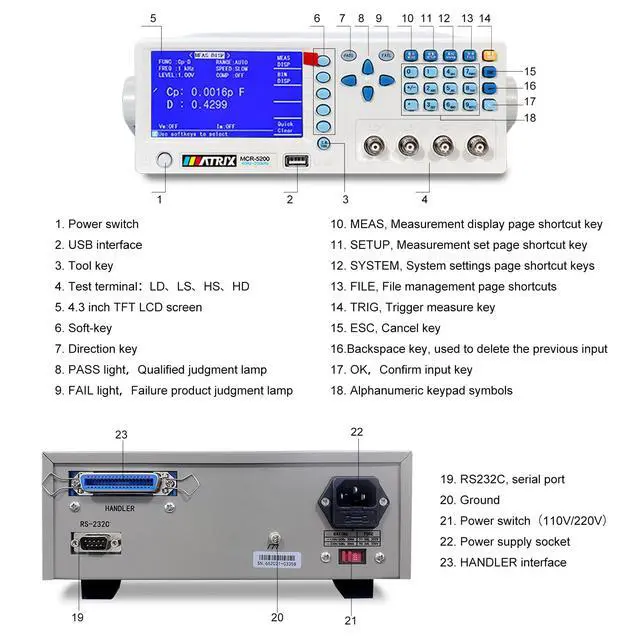

Please use the company's test fixture or test cable, the instrument test fixture or test cable should be kept clean, the test device pin to keep clean, to ensure that the test device and the fixture is in good contact. The test fixture or test cable is connected to the HD, HS, LS and LD of the front panel of the instrument. The shield layer can be connected to the rear panel of the instrument, and the shield layer can be connected with the rear panel of the instrument.
User homemade or other company test fixtures or test cables may result in incorrect measurement results.

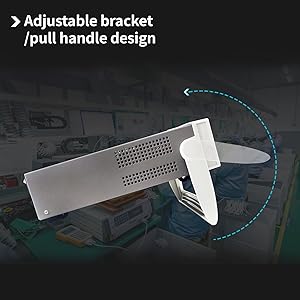

Adjustable bracket/pull handle design
- Adjust the angle as you like for easier viewing of data
- Flip up to handheld

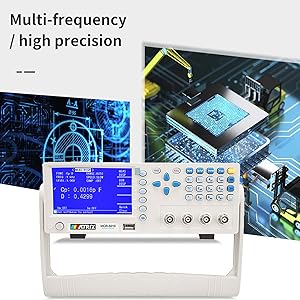

Multi-frequency / high precision
Multiple frequency points from 40Hz-200kHz and 0.1% accuracy
Shutdown automatically save test conditions
- There are a total of 5 grades, flexible qualified patterns and bad alarm reminder modes, and have automatic storage tests, humanized design

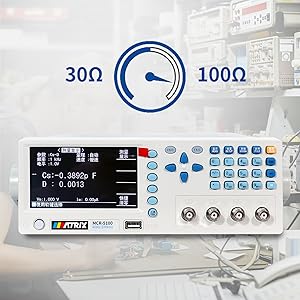

- 3O-100O Source Output Impedance

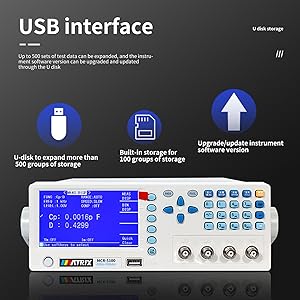

USB interface
Up to 500 sets of test data can be expanded, and the software version of the instrument can be upgraded and updated via USB flash drive
What You Get
- 1*benchtop LCR meter
- 1*power cord
- 1* four terminal test lead
- 1* CD
- 1* test report
- 1* user manual
- 1* fuse

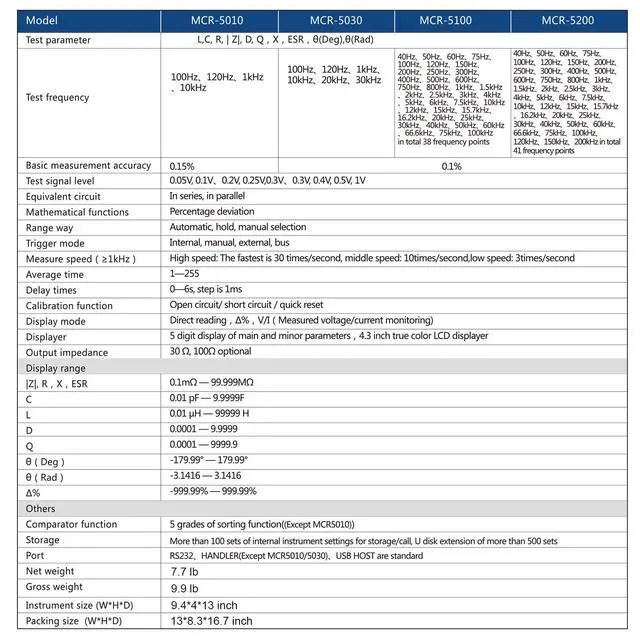

 MCR5010 |  MCR5030 |  MCR5100 |  MTXMCR5200 | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Set frequency | 100Hz,120Hz,1kHz,10kHz | 100Hz,120Hz,1kHz,10kHz,20kHz,30kHz | 40Hz?50Hz?60Hz?80Hz?100Hz?120Hz?150Hz?200Hz?250Hz?300Hz?400Hz?500Hz?600Hz?800Hz?1kHz?1.2kHz?1.5kHz?2kHz?2.5kHz?3kHz?4kHz?5kHz?6kHz?7.5kHz?10kHz?12kHz?15kHz?20kHz?25kHz?30kHz?40kHz?50kHz?60kHz?75kHz?100kHz | 40Hz?50Hz?60Hz?80Hz?100Hz?120Hz?150Hz?200Hz?250Hz?300Hz?400Hz?500Hz?600Hz?800Hz?1kHz?1.2kHz?1.5kHz?2kHz?2.5kHz?3kHz?4kHz?5kHz?6kHz?7.5kHz?10kHz?12kHz?15kHz?20kHz?25kHz?30kHz?40kHz?50kHz?60kHz?75kHz?100kHz?120kHz?150kHz?200kHz |
| Weight | 3.5kg | 3.5kg | 3.5kg | 3.5kg |
| Style | 100Hz-10kHz | 100Hz-30kHz | 40Hz-100kHz | 40Hz-200kHz |
| Basic measurement accuracy | 0.15% | 0.1% | 0.1% | 0.1% |
| equivalent circuit | In series, parallel | In series, parallel | In series, parallel | In series, parallel |
| Average number | 1—255 | 1—255 | 1—255 | 1—255 |
| Delay Time | 0—6s, 1ms step | 0—6s, 1ms step | 0—6s, 1ms step | 0—6s, 1ms step |
| Output impedance | 30 O,100O | 30 O,100O | 30 O,100O | 30 O,100O |
| Test signal level | 0.1V?0.3V?1V ; Accuracy:5% | 0.1V?0.3V?1V ; Accuracy:5% | 0.1V?0.3V?1V ; Accuracy:5% | 0.1V?0.3V?1V ; Accuracy:5% |
MCR-5000 Series Precision Digital LCR Meter
MCR5010 MCR5030 MCR5100 MCR5200
- A new generation of high precision and high stability of boutique MCR meter is MCR5010, MCR5100,MCR5200, the 4.3 inch 480*272 TFT display screen, display classical and intuitionistic.
- The series of equipment is highly applicable to the majority of manufacturers production inspection. And the series of equipment has a variety of output impedance model can be used for different manufacturers needs, its superior performance can be achieved business standards and military standards of a variety of tests (such as IEC and MIL).
Notice
Please use the company's test fixture or test cable, the instrument test fixture or test cable should be kept clean, the test device pin to keep clean, to ensure that the test device and the fixture is in good contact. The test fixture or test cable is connected to the HD, HS, LS and LD of the front panel of the instrument. The shield layer can be connected to the rear panel of the instrument, and the shield layer can be connected with the rear panel of the instrument.
User homemade or other company test fixtures or test cables may result in incorrect measurement results.
Adjustable bracket/pull handle design
- Adjust the angle as you like for easier viewing of data
- Flip up to handheld
Multi-frequency / high precision
Multiple frequency points from 40Hz-200kHz and 0.1% accuracy
Shutdown automatically save test conditions
- There are a total of 5 grades, flexible qualified patterns and bad alarm reminder modes, and have automatic storage tests, humanized design
- 3O-100O Source Output Impedance
USB interface
Up to 500 sets of test data can be expanded, and the software version of the instrument can be upgraded and updated via USB flash drive
What You Get
- 1*benchtop LCR meter
- 1*power cord
- 1* four terminal test lead
- 1* CD
- 1* test report
- 1* user manual
- 1* fuse
MCR5010 | MCR5030 | MCR5100 | MTXMCR5200 | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Set frequency | 100Hz,120Hz,1kHz,10kHz | 100Hz,120Hz,1kHz,10kHz,20kHz,30kHz | 40Hz?50Hz?60Hz?80Hz?100Hz?120Hz?150Hz?200Hz?250Hz?300Hz?400Hz?500Hz?600Hz?800Hz?1kHz?1.2kHz?1.5kHz?2kHz?2.5kHz?3kHz?4kHz?5kHz?6kHz?7.5kHz?10kHz?12kHz?15kHz?20kHz?25kHz?30kHz?40kHz?50kHz?60kHz?75kHz?100kHz | 40Hz?50Hz?60Hz?80Hz?100Hz?120Hz?150Hz?200Hz?250Hz?300Hz?400Hz?500Hz?600Hz?800Hz?1kHz?1.2kHz?1.5kHz?2kHz?2.5kHz?3kHz?4kHz?5kHz?6kHz?7.5kHz?10kHz?12kHz?15kHz?20kHz?25kHz?30kHz?40kHz?50kHz?60kHz?75kHz?100kHz?120kHz?150kHz?200kHz |
| Weight | 3.5kg | 3.5kg | 3.5kg | 3.5kg |
| Style | 100Hz-10kHz | 100Hz-30kHz | 40Hz-100kHz | 40Hz-200kHz |
| Basic measurement accuracy | 0.15% | 0.1% | 0.1% | 0.1% |
| equivalent circuit | In series, parallel | In series, parallel | In series, parallel | In series, parallel |
| Average number | 1—255 | 1—255 | 1—255 | 1—255 |
| Delay Time | 0—6s, 1ms step | 0—6s, 1ms step | 0—6s, 1ms step | 0—6s, 1ms step |
| Output impedance | 30 O,100O | 30 O,100O | 30 O,100O | 30 O,100O |
| Test signal level | 0.1V?0.3V?1V ; Accuracy:5% | 0.1V?0.3V?1V ; Accuracy:5% | 0.1V?0.3V?1V ; Accuracy:5% | 0.1V?0.3V?1V ; Accuracy:5% |
