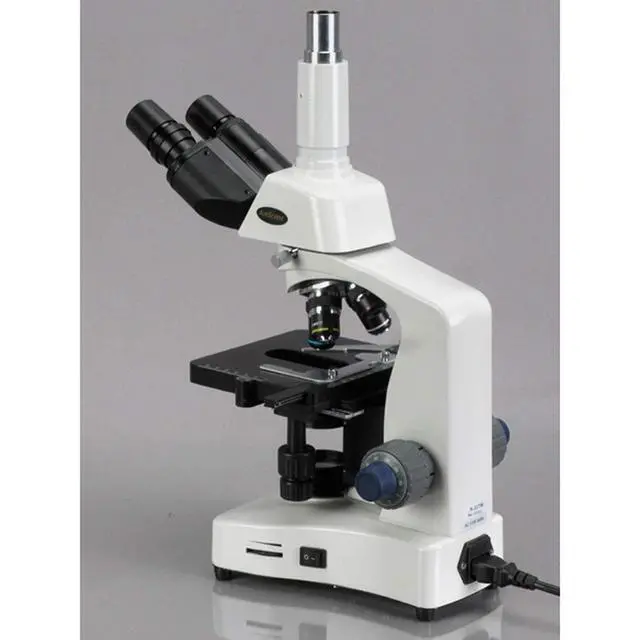

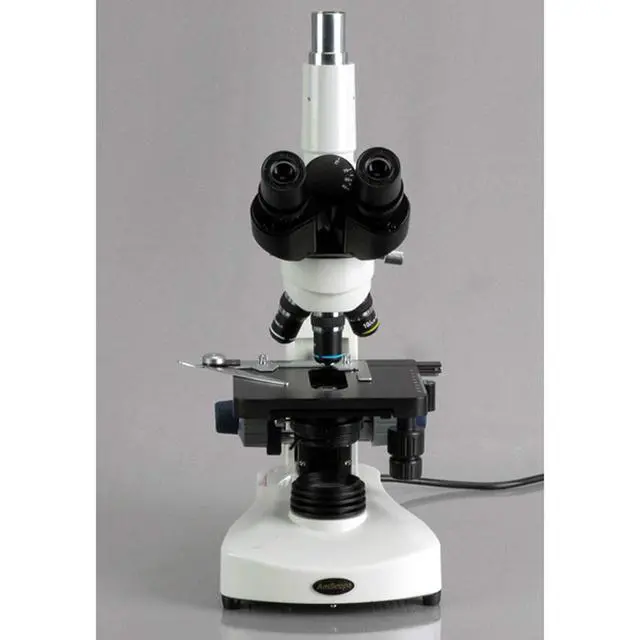

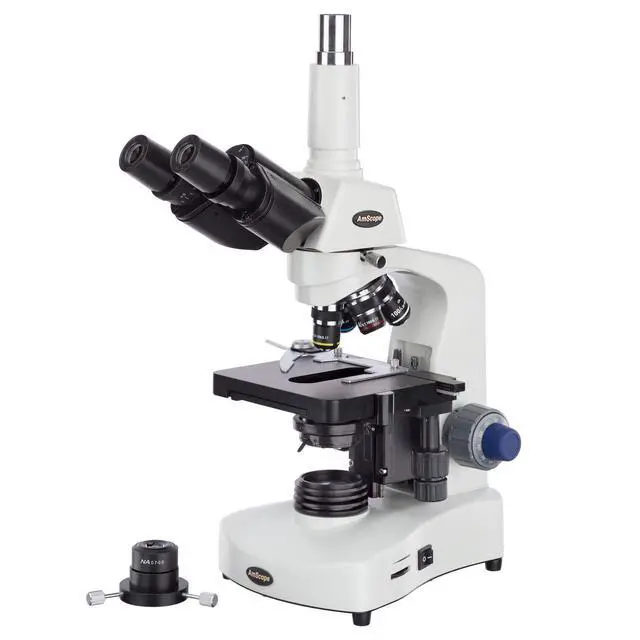

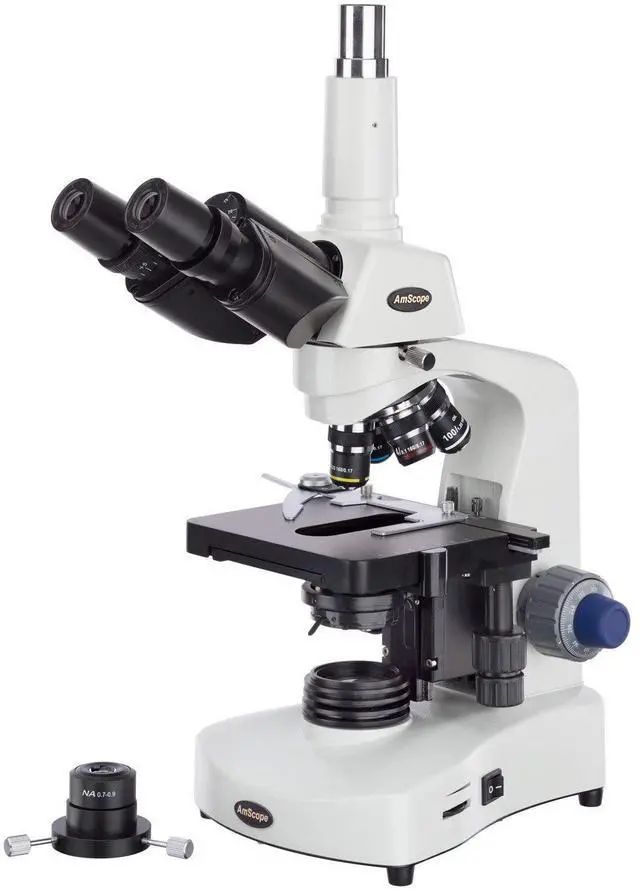

T340-DK AmScope 40X-1600X 3W LED Siedentopf Trinocular Bright/Darkfield Compound

AmScope 40X-1600X 3W LED Siedentopf Trinocular Bright/Darkfield Compound Microscope - Model T340-LED-HC2

The T340-DK-LED trinocular darkfield microscope is designed for educational and professional use.

1. A high quality darkfield and brightfield microscopy system
2. 8 darkfield and 8 brightfield power settings up to 1600x
3. Dry darkfield and brightfield Abbe condensers included
4. Backward nosepiece allocating spacious operating room
5. 3W bright LED light equivalent to 30W halogen light
6. Trinocular port for adding photo / video capability

Detailed Description

This darkfield and brightfield trinocular compound microscope is designed for clinical examination and teaching demonstration in medical field, veterinary offices, laboratories and colleges. It comes with Siedentopf trinocular head, darkfield and brightfield condensers, backward nosepiece, 3D mechanical stage and powerful 3W LED illumination. It offers eight darkfield magnification powers and eight brightfield settings (40X, 64X, 100X, 160X, 400X, 640X, 1000X and 1600X). It is an ideal instrument for biological, veterinary, bacteriological and pharmaceutical applications.

Specifications :

1. Nosepiece: quadruple
2. Head: 30 degree inclined Siedentopf trinocular head 360 degree swiveling
3. Interpupillary Distance: 48mm-75mm
4. Diopter: Adjustable left eye tube
5. Eyepiece: WF10X/18mm and WF16X
6. Achromatic Objective: 4X, 10X, 40X (spring), 100X (spring, oil)
7. Stage Dimensions: 110mm x 140mm
8. Stage Traveling Range: 78mm X 40mm
9. Focusing: Coaxial coarse fine, with tension control and stopper

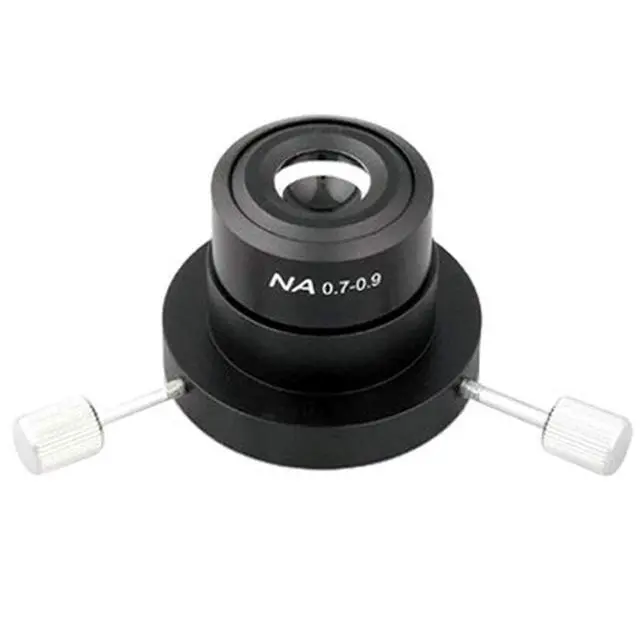

10. Abbe Condenser: NA=1.25 with iris diaphragm filter
11. Illumination: variable 3W LED
12. Power Supply: 110V/220V
13. Filter: blue and green
14. Accessories: Eye-guards, dust cover, immersion oil
