HNZXIB Small Rotary Evaporator 2000ml Rotating Flask Vacuum Evaporate Concentration 220V Lab Equipment 2L Rotavap

Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath.
The solvent steam is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which is easily decomposed at high temperature.

Easy to assemble, disassemble, operate and maintain
Unique sealing structure and selected sealing materials, strong corrosion resistance
High evaporation efficiency and high recovery rate
Stainless steel (special plastic) chassis, column, vertical shaft, aluminum alloy castings, beautiful appearance, corrosion resistance

================ Parameters ================
Model Number: RE-201D
Voltage: 220V/50HZ
Plug Type: US Plug
Evaporating Flask: 2L 24#Conical Ground Joint(0.25L-2L optional)
Receiving Flask: 1L Ball Grinding Mouth(0.25L-1L optional)
Motor Power: 40W
Rotating Speed: 0-120 r/min, Digital Display
Lifiting Mode: Water/Oil Bath Manual Lifting
Lifting Height: 0-150mm
Water/Oil Bath Power: 1200W
Temperature Accurancy: ±1°C
Water Bath Size: f24*15cm
Vacuum degree: 0.098Mpa
Glassware:High borosilicate
Sealing Mode: PTFE, fluoro Rubber sealing

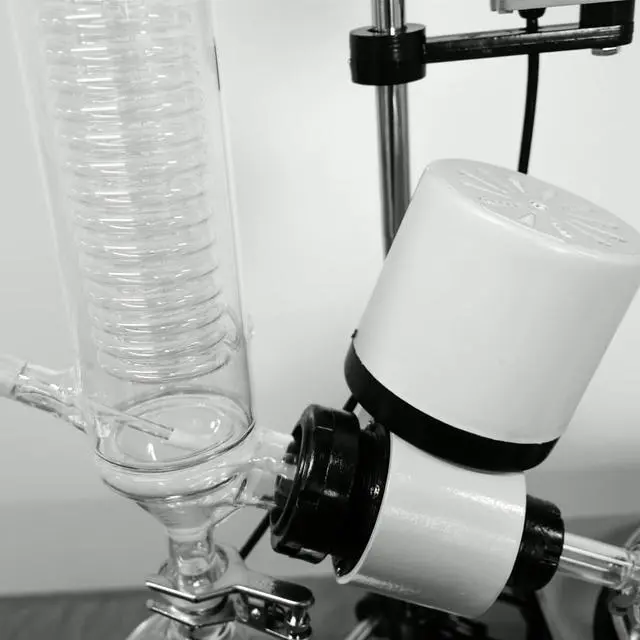

Condensor: The double backflow integration standard condenser.
Certification: CE ISO
Explosion-Proof Optional
Evaporation Rate: =1 L/H, H2O
External Size: 550*420*780(mm)

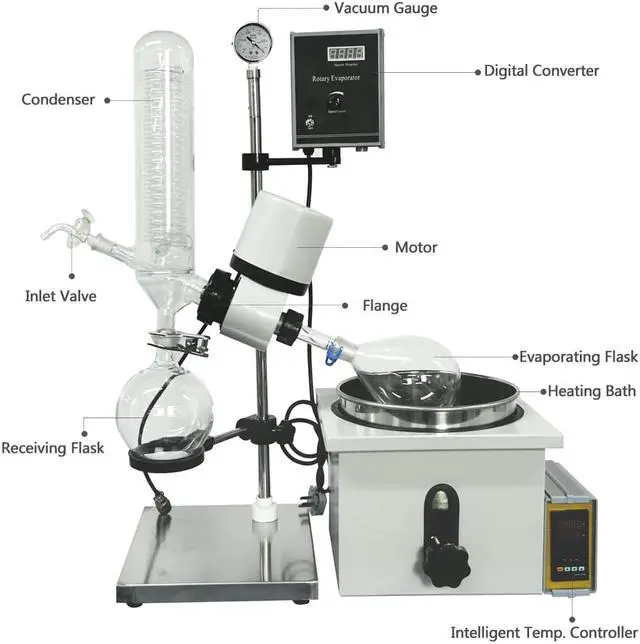

================ RE-201D ROTARY EVAPORATOR Contains ================

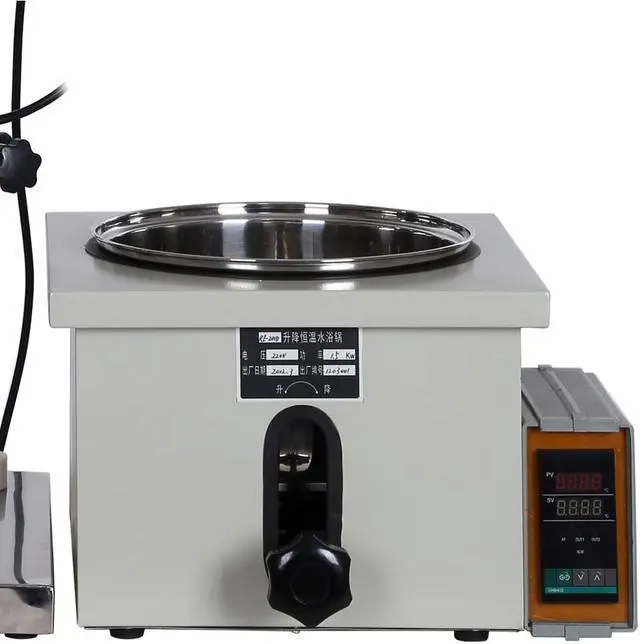

1 * Oil/Water heating bath (Digital temperature control, manual lift)
1 * 2000 ml Rotary Evaporating Flask(0.25L-2L optional)
1 * 1000 ml Receiving Flask(0.25L-1L optional)
1 * Vertical Condenser
1 * Stepless Rotary Motor
1 * Digital Converter
1 * Cast Iron Stand
2 * Metal Clamp
1 * Supporting ring
1 * Vacuum Gauge

———————— Related Supporting Products————————

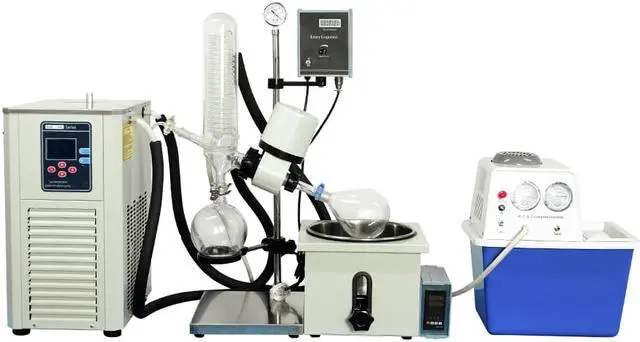

Refrigerator circulator: for condensation and reducing waste of materials
Circulating water vacuum pump: for vacuuming for negative pressure reaction
