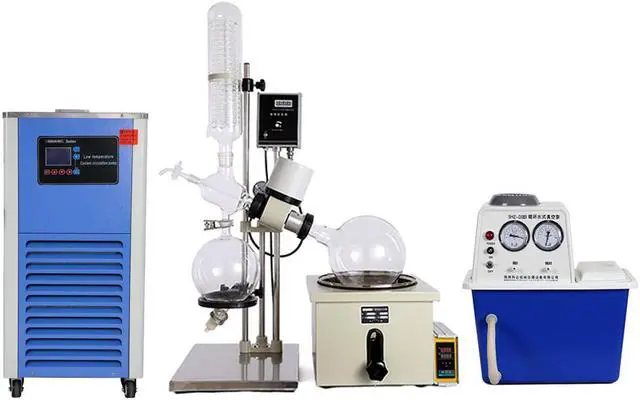

5L hand-lifting Rotavap RE501 110V Turnkey combination w/ Circulating Chiller & Vacuum Pump, 5000ml Rotary Evaporator One-stop shopping set

Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath.
The solvent steam is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which is easily decomposed at high temperatures.

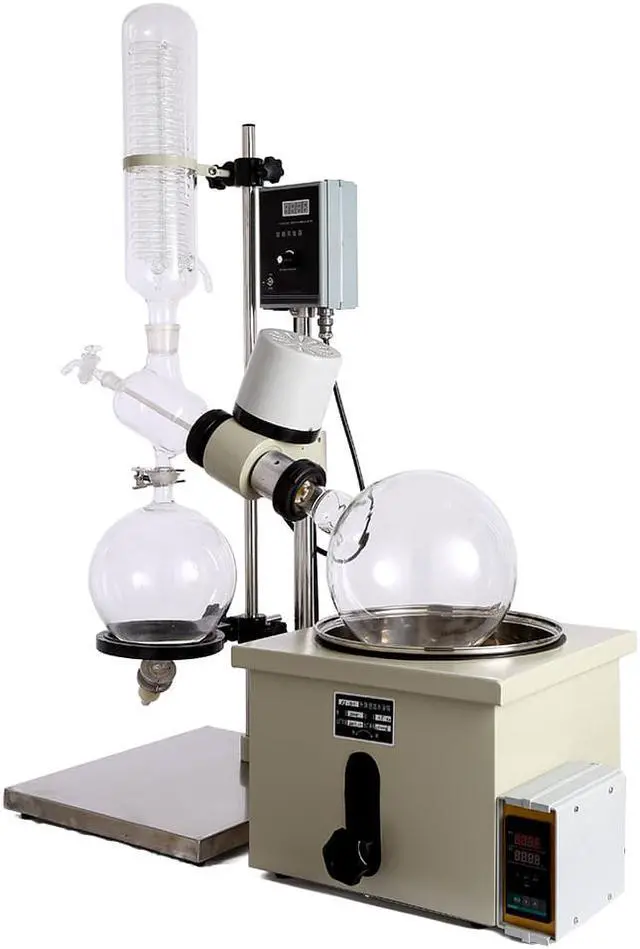

>>>> Rotary Evaporator
Model: RE-501
Voltage: 110V
Plug Type: US Plug
Evaporating Flask: 5L
Receiving Flask: 3L
Motor Power: 40W(Stepless Speed Regulation)
Rotating Speed: 0-120 r/min, Digital Display
Lifting Mode: Screw Rod Manual Lifting
Lifting height: 0-150mm
Water/Oil Bath Power: 1500W
Temperature Accuracy: ±1°C
Water Bath Size: f28*17cm
Vacuum degree: 0.098Mpa
Glassware: High borosilicate
Sealing Mode: PTFE, fluoro Rubber sealing
Condensor: The double backflow integration standard condenser.
Certification: CE ISO
Explosion-Proof Optional
Evaporation Rate: =1 L/H, H2O
External Size: 680*590*670(mm)

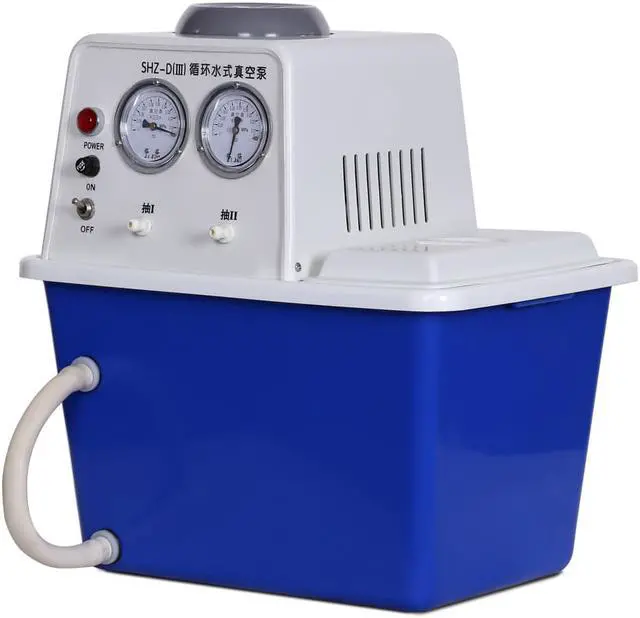

>>>> Vacuum Pump
Model: SHZ-D(III) 2-tap
Power Supply(V/Hz):110V/60Hz
Flow(L/min):60
Lift(m):8
Body material: Anti-corrosive
Material: static spraying
Max. pressure (M Pa):0.098
Sucking Rate for Single Tap:10L/min
Quantity of tap (Pcs):2
Tank Capacity:15L

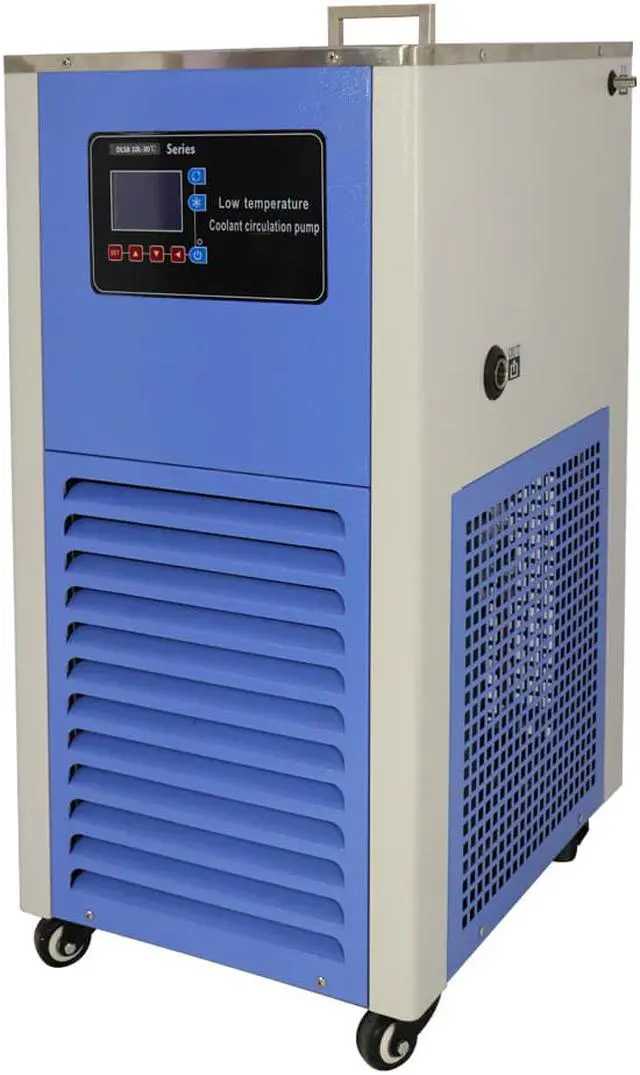

>>>> Circulating Chiller
Model: DLSB5/20
Voltage:110V/60HZ
Refrigerated Circulator Volume: 5L
No-load lowest temperature: -24 deg. Celsius
Refrigerated Circulator Temperature range: -20 deg. Celsius
Refrigerated Circulator capacity: 1328-319W
Refrigerated Circulator flow: 20L/min
Refrigerated Circulator lift: 4-6m
