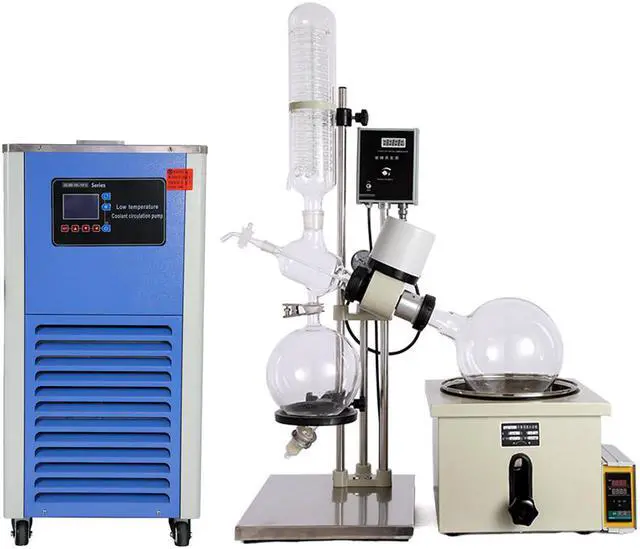

HNZXIB RE501 Rotary Evaporator and Refrigerated Circulator -10°C/10L Chiller DLSB10/10 Rotavap Basic Combination 110V/60Hz

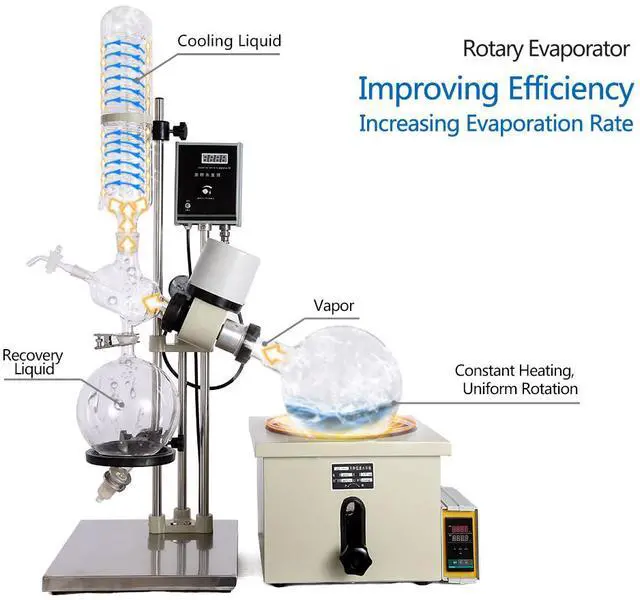

Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath.
The solvent steam is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which is easily decomposed at high temperatures.

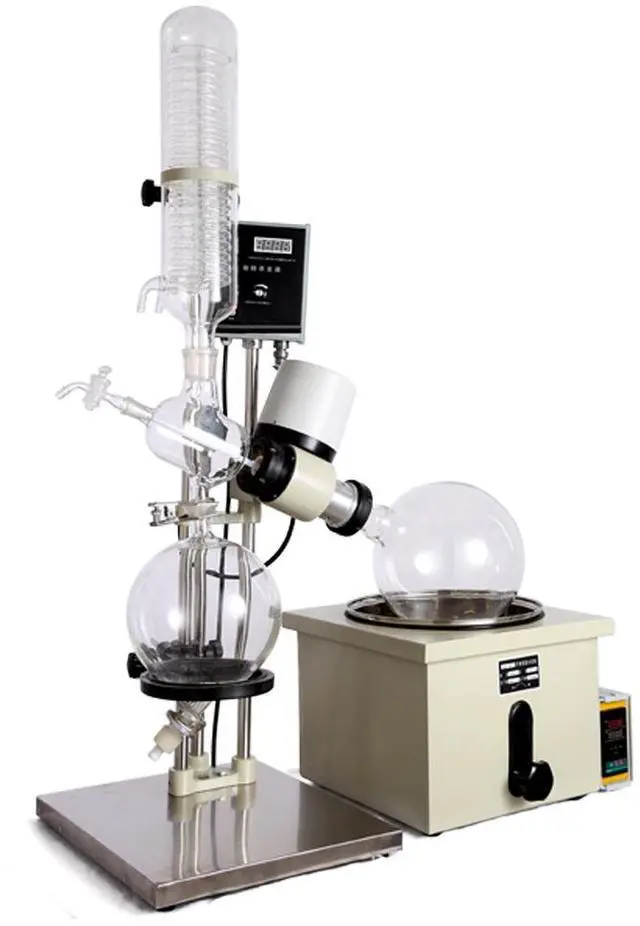

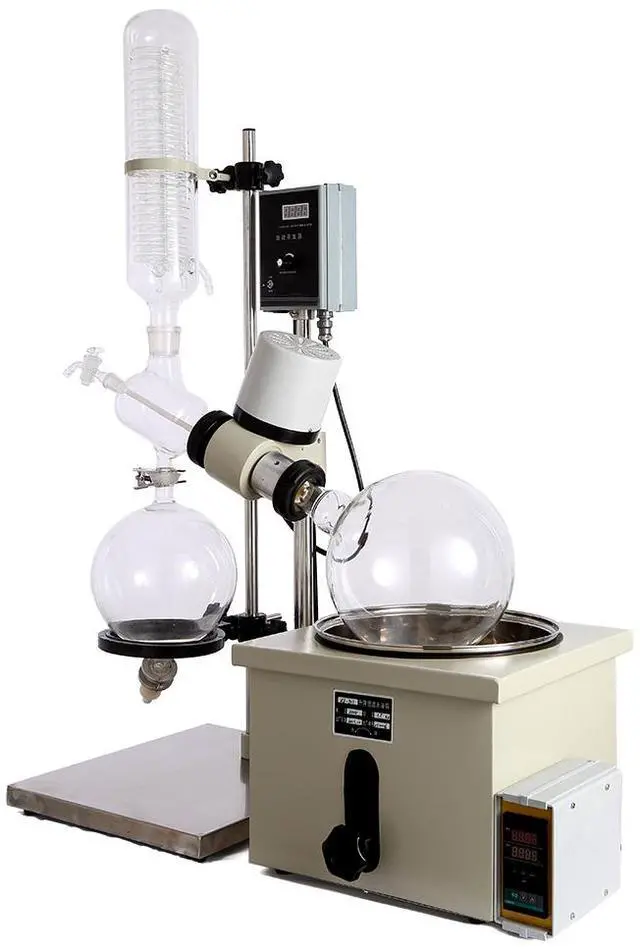

>>>> 5L Rotary Evaporator
Model Number: RE-501
Voltage: 110V/60HZ (220V optional)
Plug Type: US Plug
Evaporating Flask: 5L
Receiving Flask: 3L
Motor Power: 40W(Stepless Speed Regulation)
Rotating Speed: 0-120 r/min, Digital Display
Lifting Mode: Screw Rod Manual Lifting
Lifting height: 0-150mm
Water/Oil Bath Power: 1500W
Temperature Accuracy: ±1°C
Water Bath Size: f28*17cm
Vacuum degree: 0.098Mpa
Glassware: High borosilicate
Sealing Mode: PTFE, fluoro Rubber sealing
Condensor: The double backflow integration standard condenser.
Certification: CE ISO
Explosion-Proof Optional
Evaporation Rate: =1 L/H, H2O
External Size: 680*590*670(mm)

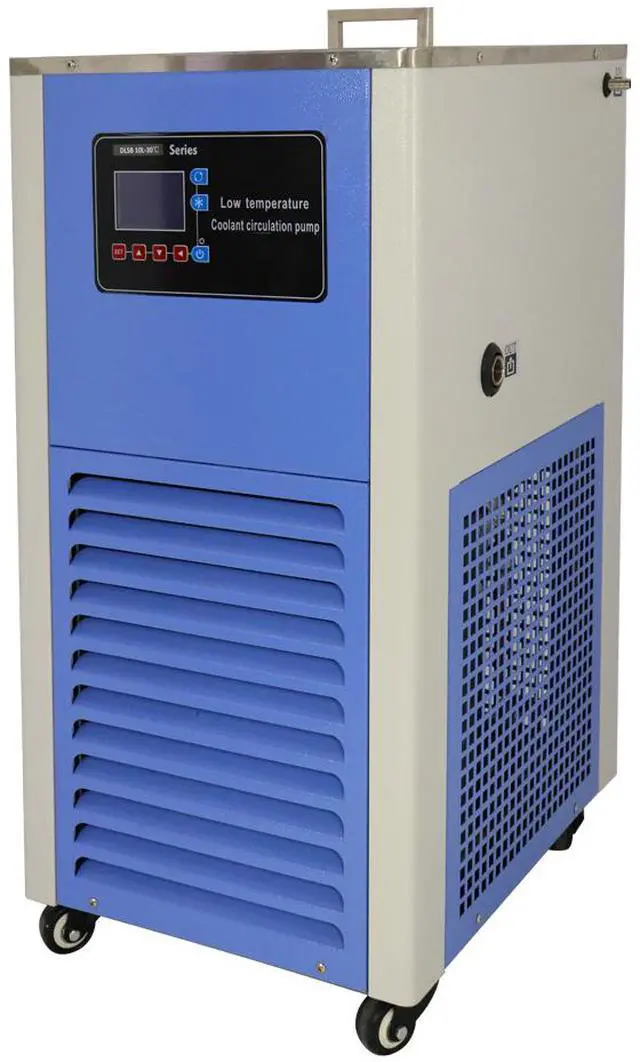

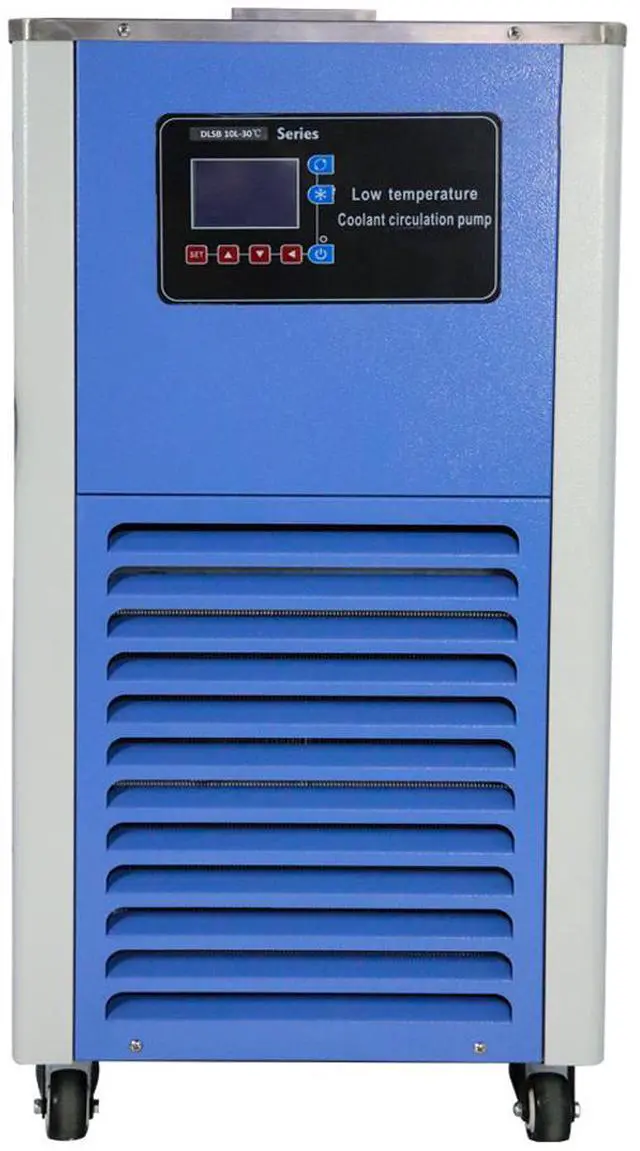

>>>> Chiller
Model: DLSB-10/10
Volume: 10L
No-load minimum temperature: -14°C
Refrigerant Capacity: 1894-884W
Flow: 20L/min
Lift: 4-6m
Temperature Range: -10°C
Temperature Precision: ±0.2°C
Power Supply: 110V
Environment Temperature: 25°C
Environment Humidity: 60-80% Ventilation
Machine Dimension: 500*450*650(mm)
