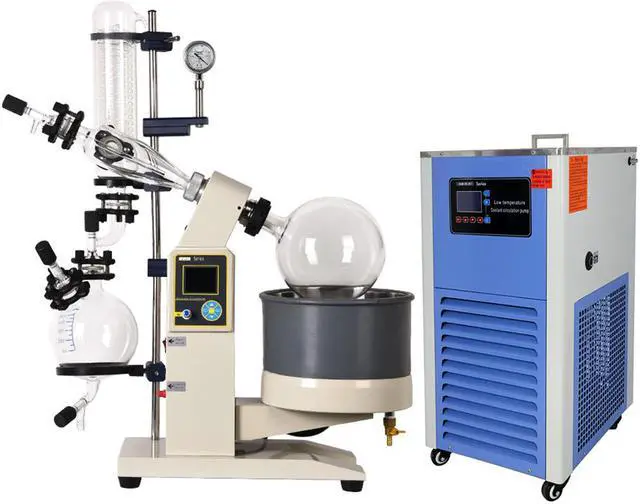

5L New Rotary Evaporator and -20°C Circulating Chiller 220V Basic Set 5000ml Auto-lifting Rotavap R1005 + DLSB5/20

Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath.
The solvent steam is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which is easily decomposed at high temperatures.

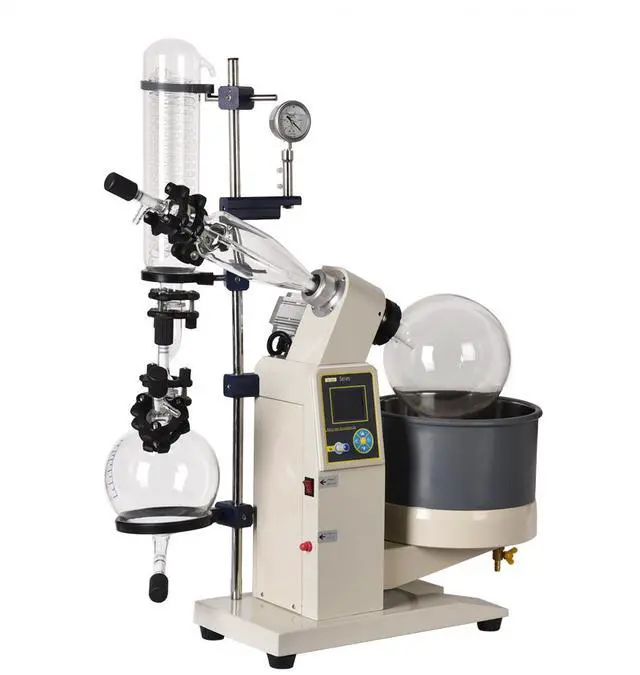

>>>> Rotary Evaporator
Model: R1005
Rotating Flask: 5L/5000ml
Working power supply: Single-phase 220V/50Hz
condenser tube: Vertical double coil
Evaporation capacity: The water is more than 2L/h Alcohol is more than 4L/h
Water bath pot material: stainless steel
Lifting function: Electric lift
Optimum ambient temperature (c):5~35
Lift stroke (mm):0~100
Whole power (Kw):2.0
Outline dimension (mm):660×400×1020
Main engine speed (RPM):20~140
Rotary electric machine (W):100
Main engine speed control: Digital frequency conversion stepless speed regulation

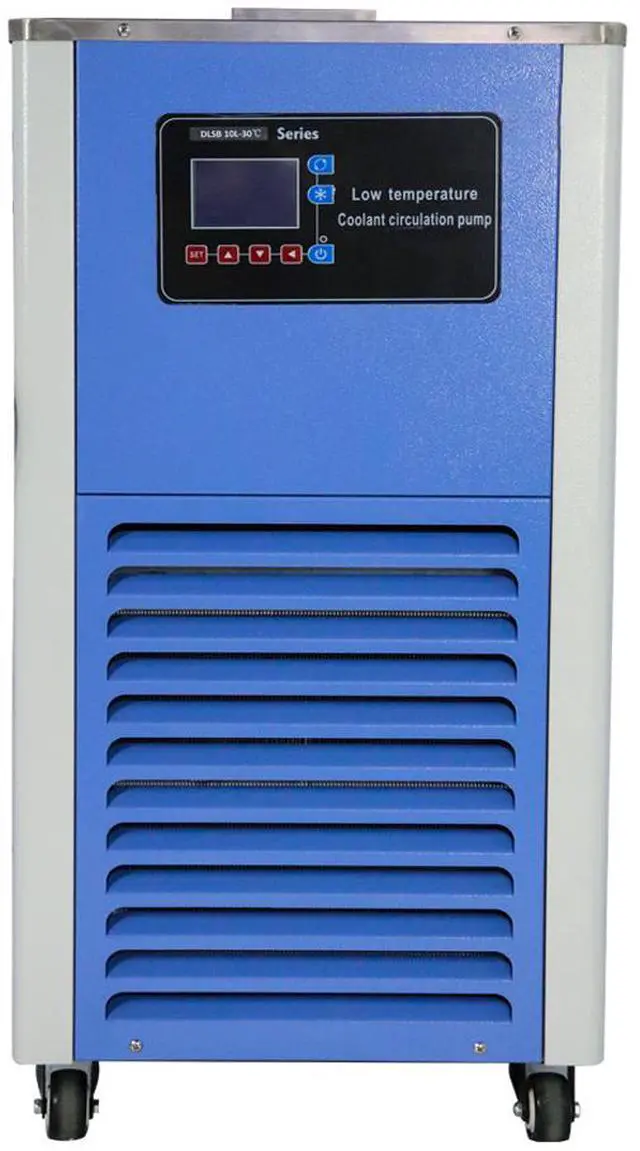

>>>> Circulating Chiller
Model: DLSB5/20
Voltage: 220V/50Hz
Refrigerated Circulator Volume: 5L
No-load lowest temperature: -24 deg. Celsius
Refrigerated Circulator Temperature range: -20 deg. Celsius
Refrigerated Circulator capacity: 1328-319W
Refrigerated Circulator flow: 20L/min
Refrigerated Circulator lift: 4-6m
