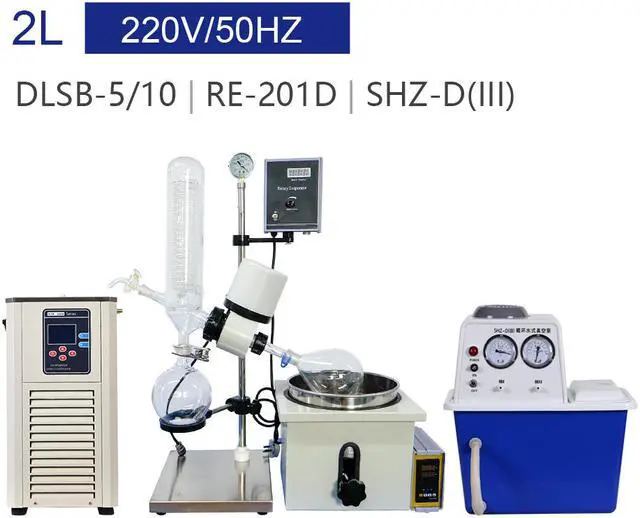

HNZXIB Rotary Evaporator Turnkey Set 2L Rotavap -10°C Chiller and Water Circulating Vacuum Pump 220V/50Hz Rotavap One-stop Shopping Combination 2000ml Rotating Flask 5L Refrigerated Circulator

Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath.
The solvent steam is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which is easily decomposed at high temperatures.
High evaporation efficiency and high recovery rate
Unique sealing structure and selected sealing materials, strong corrosion resistance

>>>> 2L Rotary Evaporator
Model Number: RE-201D
Voltage: 220V/50Hz
Plug Type: US Plug
Evaporating Flask: 2L 24#Conical Ground Joint(0.25L-2L optional, please leave a note to tell the volume you need)
Receiving Flask: 1L Ball Grinding Mouth(0.25L-1L optional)
Motor Power: 40W
Rotating Speed: 0-120 r/min, Digital Display
Lifting Mode: Water/Oil Bath Manual Lifting
Lifting height: 0-150mm
Water/Oil Bath Power: 1200W
Temperature Accuracy: ±1°C
Water Bath Size: f24*15cm
Vacuum degree: 0.098Mpa
Glassware: High borosilicate
Sealing Mode: PTFE, fluoro Rubber sealing

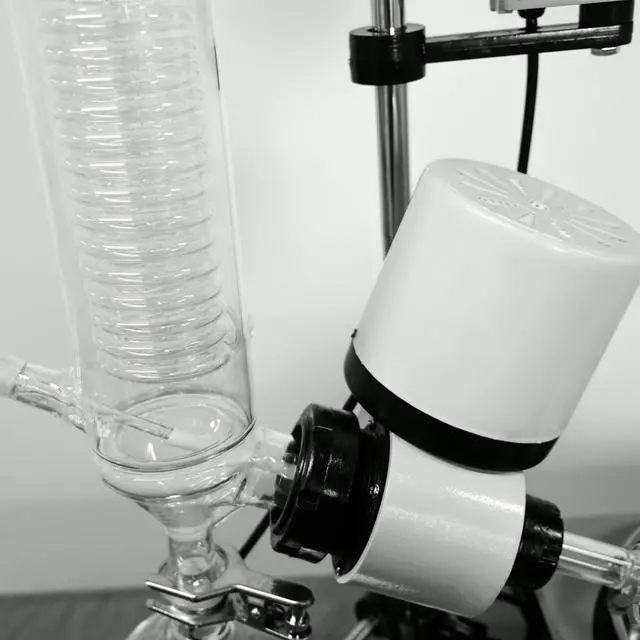

Condensor: The double backflow integration standard condenser.
Certification: CE ISO
Explosion-Proof Optional
Evaporation Rate: =1 L/H, H2O
External Size: 550*420*780(mm)

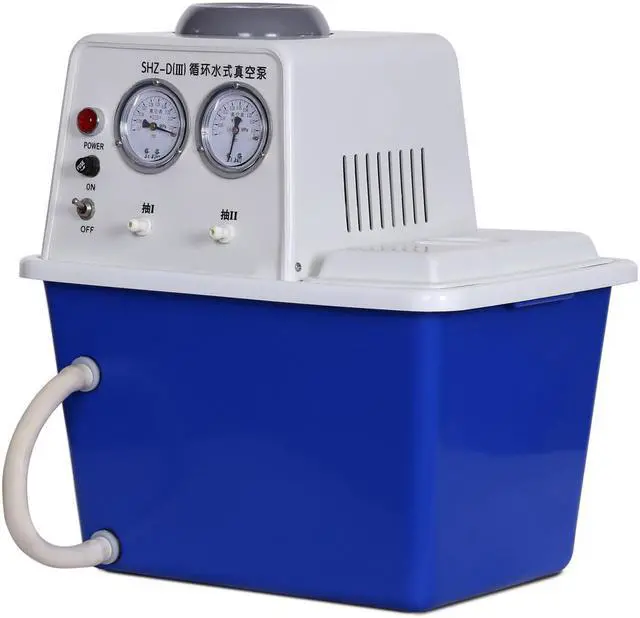

>>>> Desktop Water Circulating Vacuum Pump
Model: SHZ-D(III) 110V Double-gauge/Double-tap
Voltage: 220V/50Hz
Flow: 60 L/m, Lift: 8 m
Max. Vacuum Degree: 0.098 MPa
Sucking Rate for Each Tap: 10 L/min
Tank Capacity: 15 L, Power: 180W
Body material: Anti-corrosive Material, static spraying

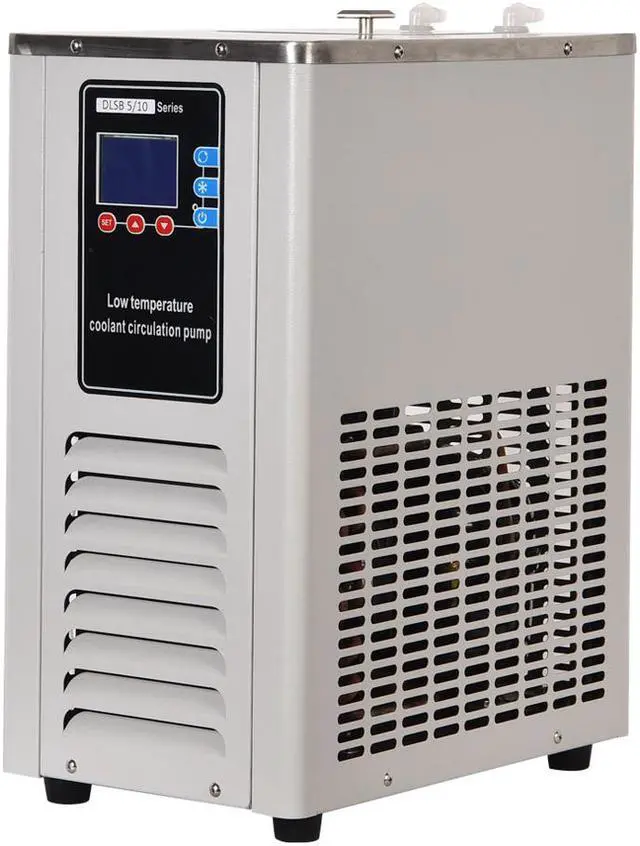

>>>> Refrigerated Circulator Cooling Chiller
Model: DLSB5/10
Power Supply: 220V/50Hz
Volume: 5L
Temperature Range: -10°C
Temperature Precision: ±0.2°C
No-load minimum temperature: -14°C
Refrigerant Capacity: 1328-319W
Flow: 20L/min
Lift: 4-6m
Environment Temperature: 25°C
Environment Humidity: 60-80% Ventilation
Machine Dimension: 500*370*540(mm)
