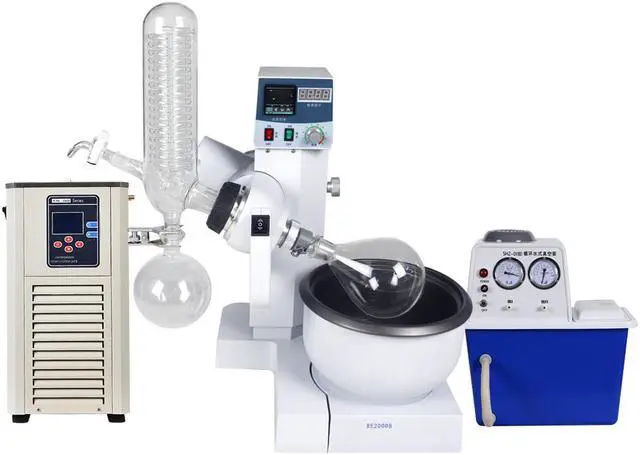

HNZXIB Lab Rotavap Turnkey Combination RE-2000B Automatic lifting 2L Rotating Flask and Desktop Water Circulating Vacuum Pump + Refrigerated Circulator -10°C/5L Chiller 220V

Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath.
The solvent steam is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which is easily decomposed at high temperature.

Unique sealing structure and selected sealing materials, strong corrosion resistance
Stainless steel (special plastic) chassis, column, vertical shaft, aluminum alloy castings, beautiful appearance, corrosion resistance

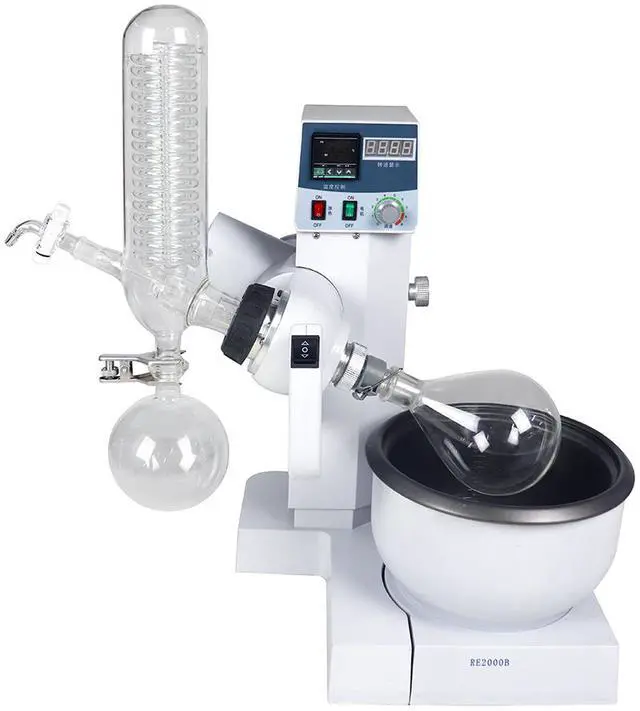

>>>> 2L Rotary Evaporator
Model Number: RE-2000B
Plug Type: US / EU / UK / AU
Evaporating Flask: 2L 29#Conical Ground Joint(0.25L-2L optional)
Receiving Flask: 1L Ball Grinding Mouth(0.25L-2L optional)
Motor Power: 40W

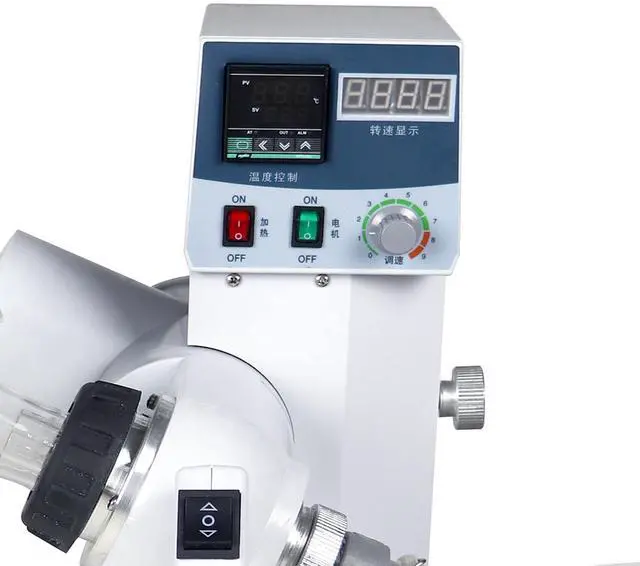

Rotating Speed: 0-120 r/min, Digital Display
Lifting Mode: Motor Automatic Lifting
Lifting height: 0-140mm
Water/Oil Bath Power: 1500W
Condensor: The double backflow integration standard condenser.
Voltage: 220V/50Hz
Bath Temp Control Range: RT~180°C (RT-99°C/399°C optional)
Water Bath Size: f230*130mm
Evaporation Rate: =1 L/H, H2O
External Size: 550*420*780(mm)
Vacuum degree: 0.098Mpa
Glassware: High borosilicate
Temperature Accuracy: ±1°C
Water Bath Size: f24*15cm
Sealing Mode: PTFE, fluoro Rubber sealing

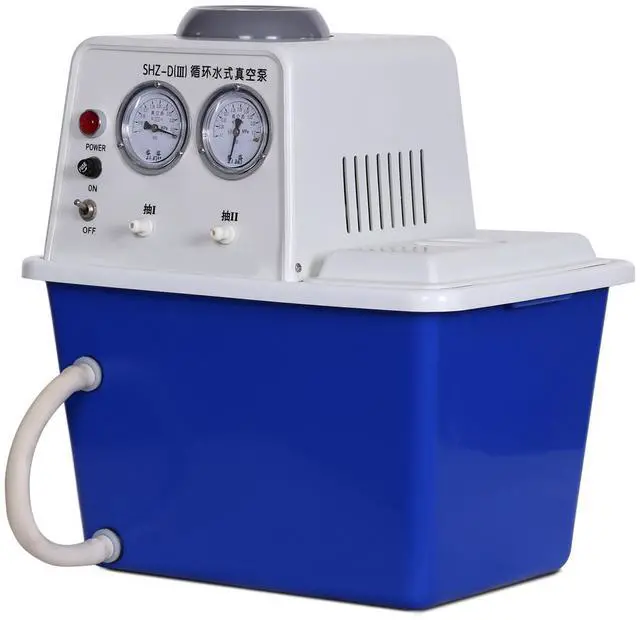

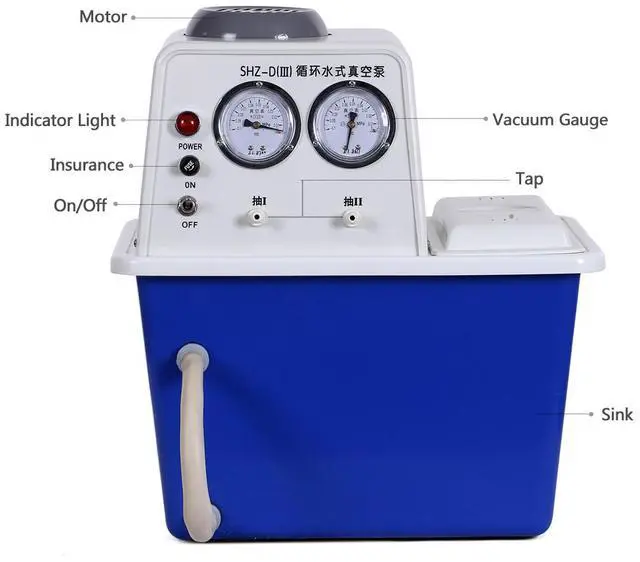

>>>> Desktop Water Circulating Vacuum Pump
Model: SHZ-D(III) Double-gauge/Double-tap
Voltage: 220V/50Hz
Flow: 60 L/m, Lift: 8 m
Max. Vacuum Degree: 0.098 MPa
Sucking Rate for Each Tap: 10 L/min
Tank Capacity: 15 L, Power: 180W
Body material: Anti-corrosive Material, static spraying

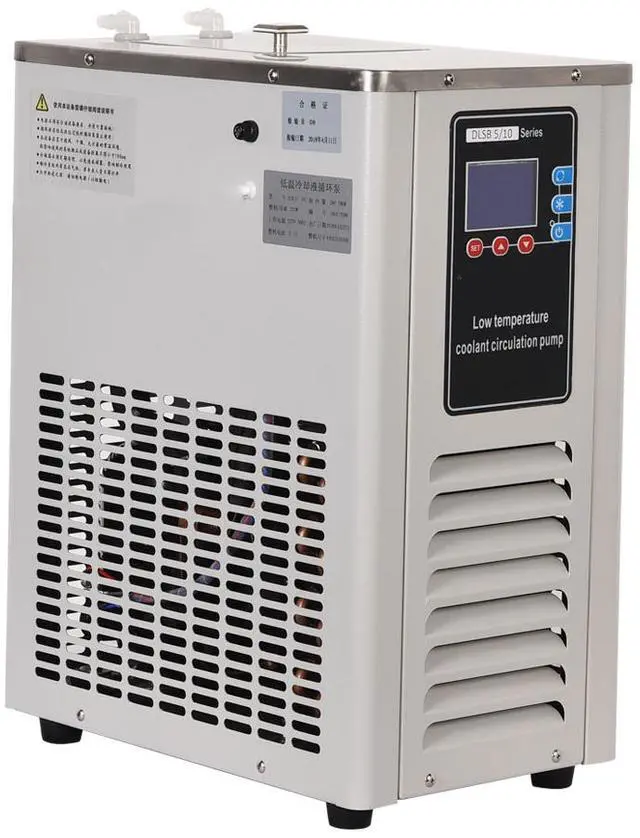

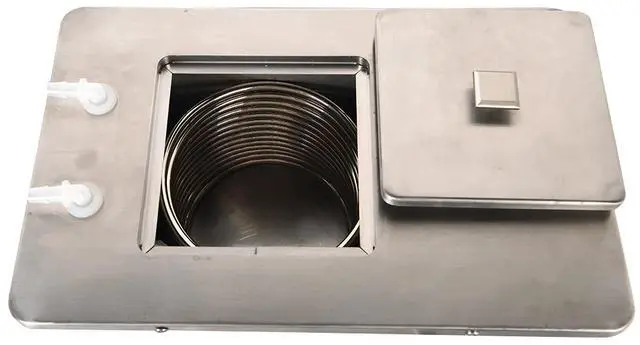

>>>> Refrigerated Circulator Cooling Chiller
Model: DLSB5/10
Power Supply: 220V/50Hz
Volume: 5L
Temperature Range: -10°C
Temperature Precision: ±0.2°C
No-load minimum temperature: -14°C
Refrigerant Capacity: 1328-319W
Flow: 20L/min
Lift: 4-6m
Environment Temperature: 25°C
Environment Humidity: 60-80% Ventilation
Machine Dimension: 500*370*540(mm)

================ Features ================
(1) Adopt the advanced EL airtight system in the world to maintain a high vacuum. Gas-liquid separation, no reflux.
(2) The rotating bottle is connected with the nut for ease of loading and unloading.
(3) Collecting bottles with a discharge valve at the bottom, and recovering the solvent quickly.
(4) The vacuum system is equipped with a vacuum gauge to adjust the best working vacuum degree for low boiling point material.
(5) The water bath pot is controlled by electronic constant temperature and can be lifted up or down.
(6) The structure is reasonable and the material is exquisite.
