    10L Short Path Distillation Kit with Cooling Chiller,Vacuum Pump,Cold Trap and Stirring Heating Mantle for Distillation Extraction 110V/60HZ Laboratory Distillation Equipment One-stop buying

    • Voltage:110V/60Hz
    • High quality and heavy duty Borosilicate GG17 glass for durability
    • This is a completed Short Path Distillation Sets including
    • Short-path Distillation Apparatus (Glassware and Heating Mantle) + Cold Trap + Rotary Vane Vacuum Pump 2XZ-2 + Chiller DLSB5/10
    • Shipping: We Use Wooden Case Packaging,7-14 Working Days Arrived; One Year Warranty
    +
    +
    Overview
    Specs
    Reviews
    This Turnkey Combination is a good choice for One-stop shopping and starts your business ASAP.

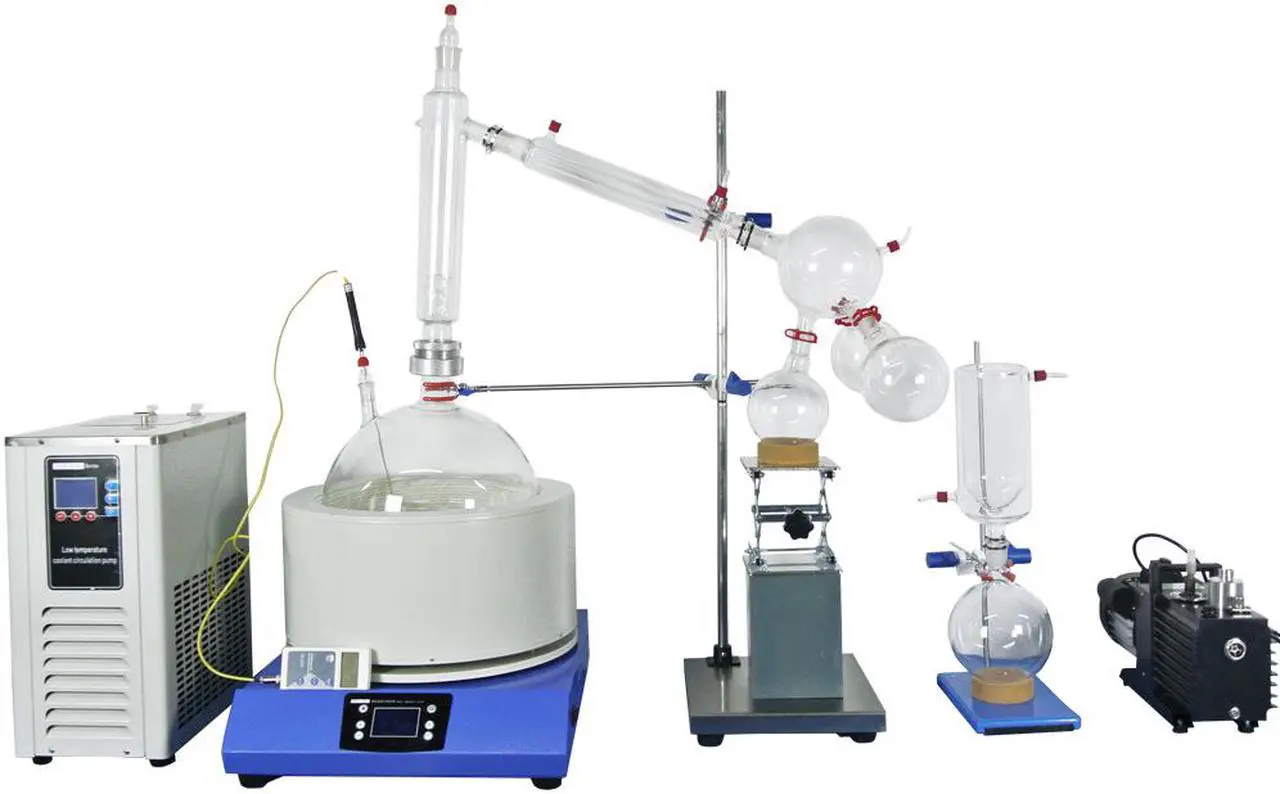

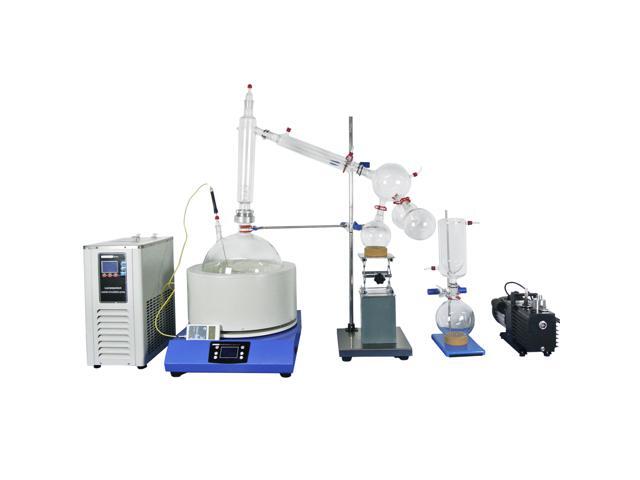

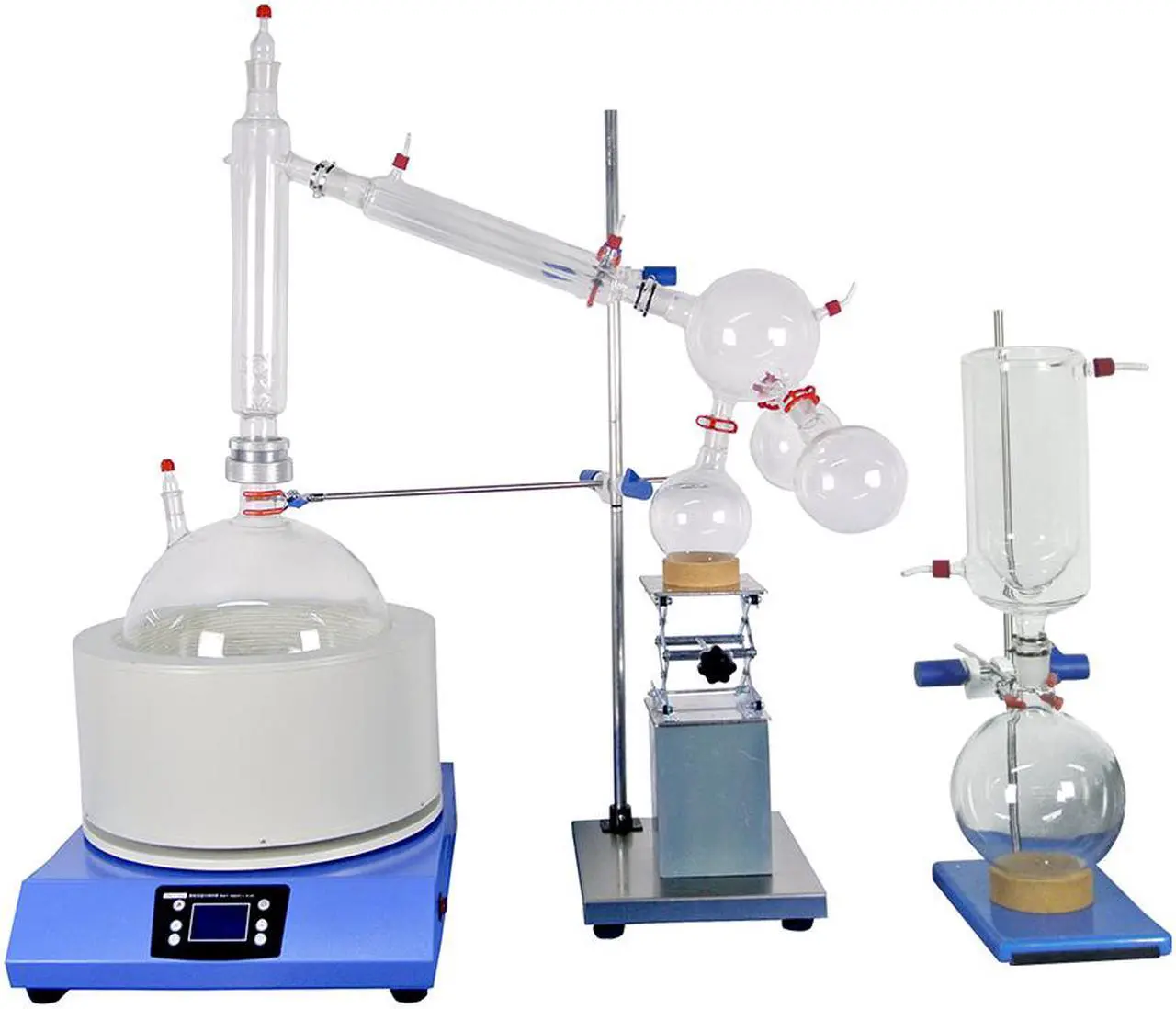

    It is a completed Short Path Distillation set including
    Short-path Distillation Apparatus (Glassware and Heating Mantle) + Cold Trap + Rotary Vane Vacuum Pump 2XZ-2 + Chiller DLSB5/10

    >>>> INTRODUCTION
    Short path distillation is mainly used for enrichment / Purification / Crystallization, drying, separation, drug, solvent recycling,/ Solvent recovery / Separate solvent elements and others. It is widely used in university, bio-pharmaceutical industry,petrochemical industry other industries.
    Distillation is the process of separating the components or substances from a liquid mixture by selective evaporation and condensation. Distillation may result in essentially complete separation (nearly pure components), or it may be a partial separation that increases the concentration of selected components of the mixture. In either case the process exploits differences in the volatility of the mixture's components. In industrial chemistry, distillation is a unit operation of practically universal importance, but it is a physical separation process and not a chemical reaction.

    We have 2L ,5L 10L, 20L short path distillation complete kit for you to choose.

    >>>> FEATURES
    Our products have good chemical stability, electrical insulation properties and mechanical properties.
    High quality GG17 high borosilicate glass for durability
    Vacuum-jacketed distillation adapter, with 4 Vigreux stages

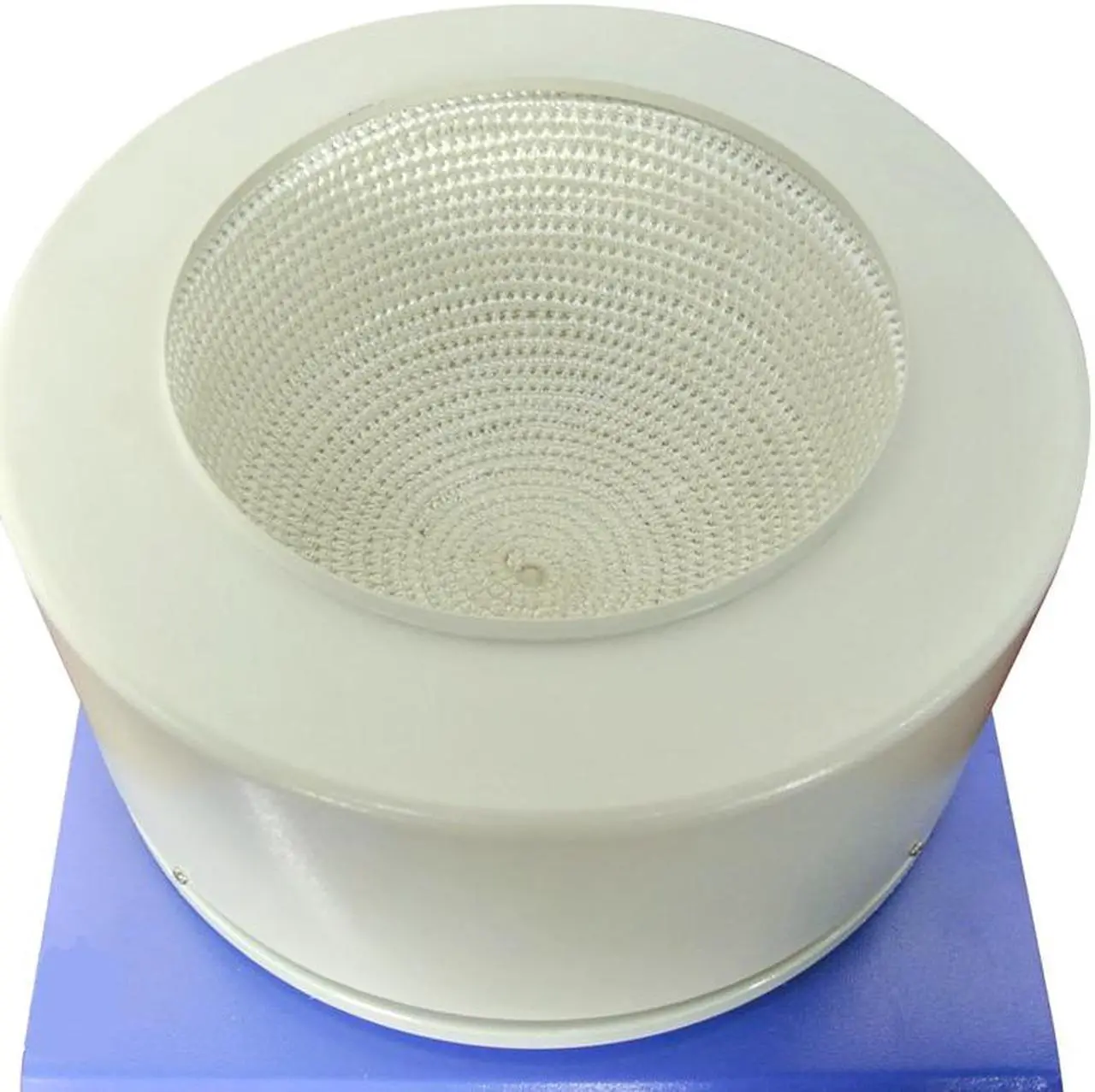

    It adopts electric heating mantle, no flame, large heating area and fast heating speed;
    The electric heating set has magnetic stirring function and intelligent digital display.
    The Liner is made of high-temperature alkali-free glass fiber as the insulating material.
    The resistance wire in the insulation layer is sealed and then woven into a hemispherical heater for good insulation performance.
    Note: Glass fiber contains grease and other compounds in the production process, so white smoke and odor appear in the inner casing when the first time heating up.

    >>>> PARAMETERS
    >>>> 10L Short Path Distillation
    Product Name:10L Short Path Distillation Lab Equipments
    Model: SPD-10L
    Power Supply: 110V/60Hz
    Capacity: 10L
    Stirring Power: 80W
    Heating Power: 1500W
    Vacuum Degree:0.098Mpa
    * Please leave a message to note the type of PLUG you need.

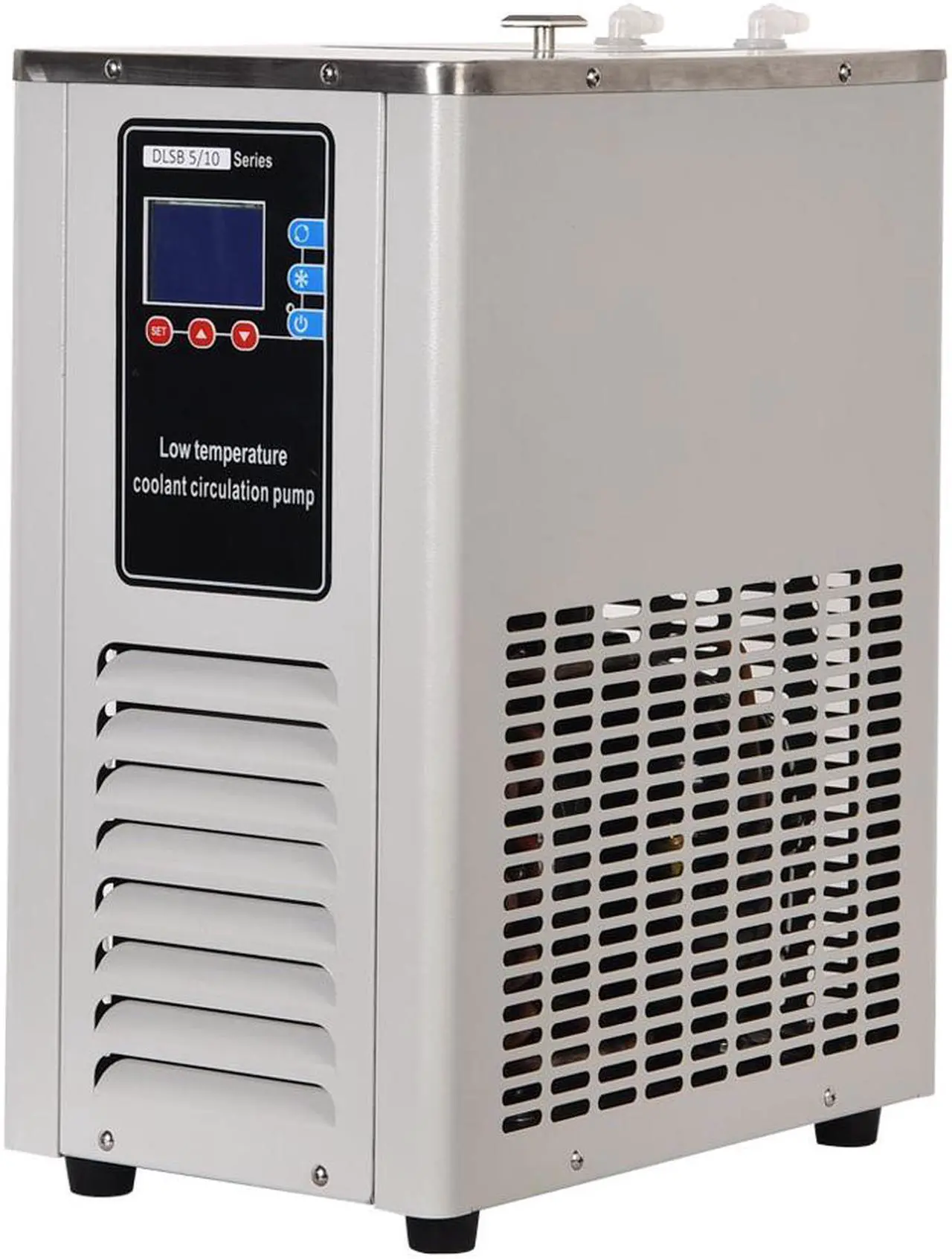

    >>>> Chiller
    Model: DLSB-5/10
    Volume: 5L
    No-load minimum temperature: -15°C
    Refrigerant Capacity: 1328-319W
    Flow: 20L/min
    Lift: 4-6m
    Temperature Range: -10°C
    Temperature Precision: ±0.2°C
    Power Supply: 110V/60Hz
    Environment Temperature: 25°C
    Environment Humidity: 60-80% Ventilation
    Machine Dimension: 500*370*540(mm)

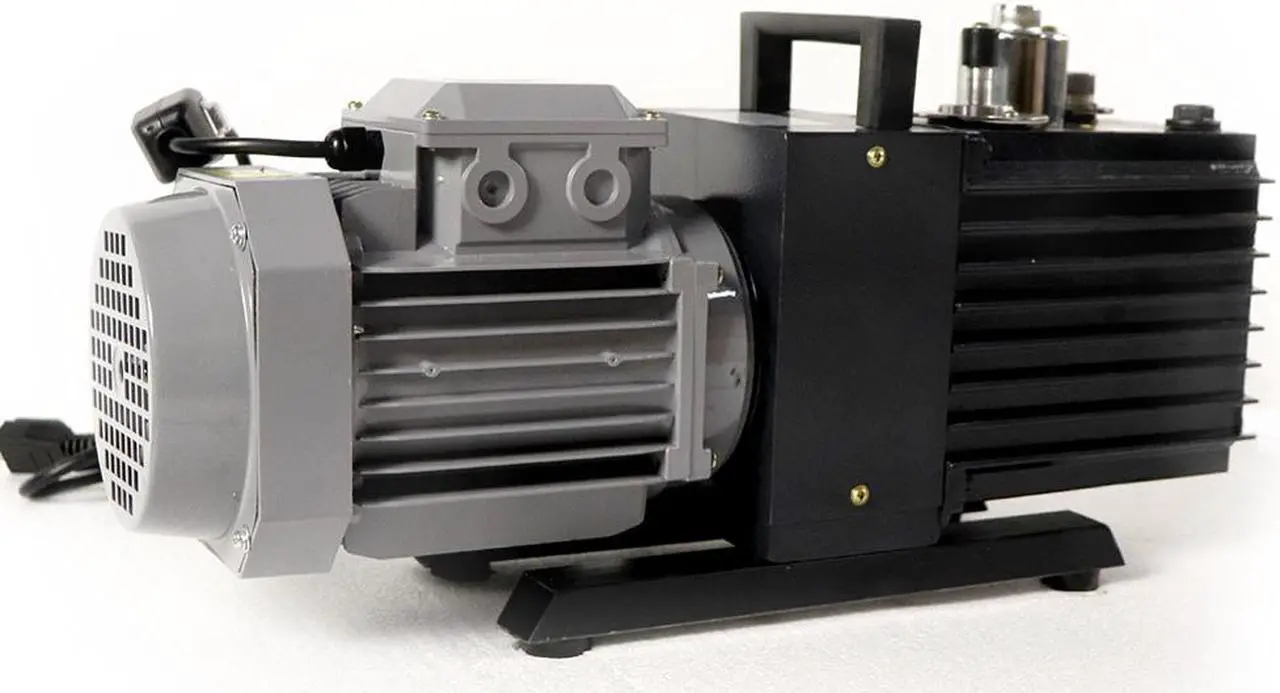

    >>>> Vacuum Pump
    Model: 2XZ-2
    Exhausting speed(L/S): 2
    Ult. vacuum (Pa): Without gas ballast =6×10^(-2). With gas ballast =1.33
    Rotary speed (r/min): 1400
    Working Voltage (V): 110 (220V / 380V available)
    Motor power (Kw): 0.37
    Inlet diameter (mm): F25
    Temp. rise of pump oil (°C): =45
    Oil capacity (L): 0.8
    Size(W*D*H,mm): 488*145*280
    Weight (kg) (with 3-phase motor): 20
    Noise (db): =60


    >>>> PACKING LIST

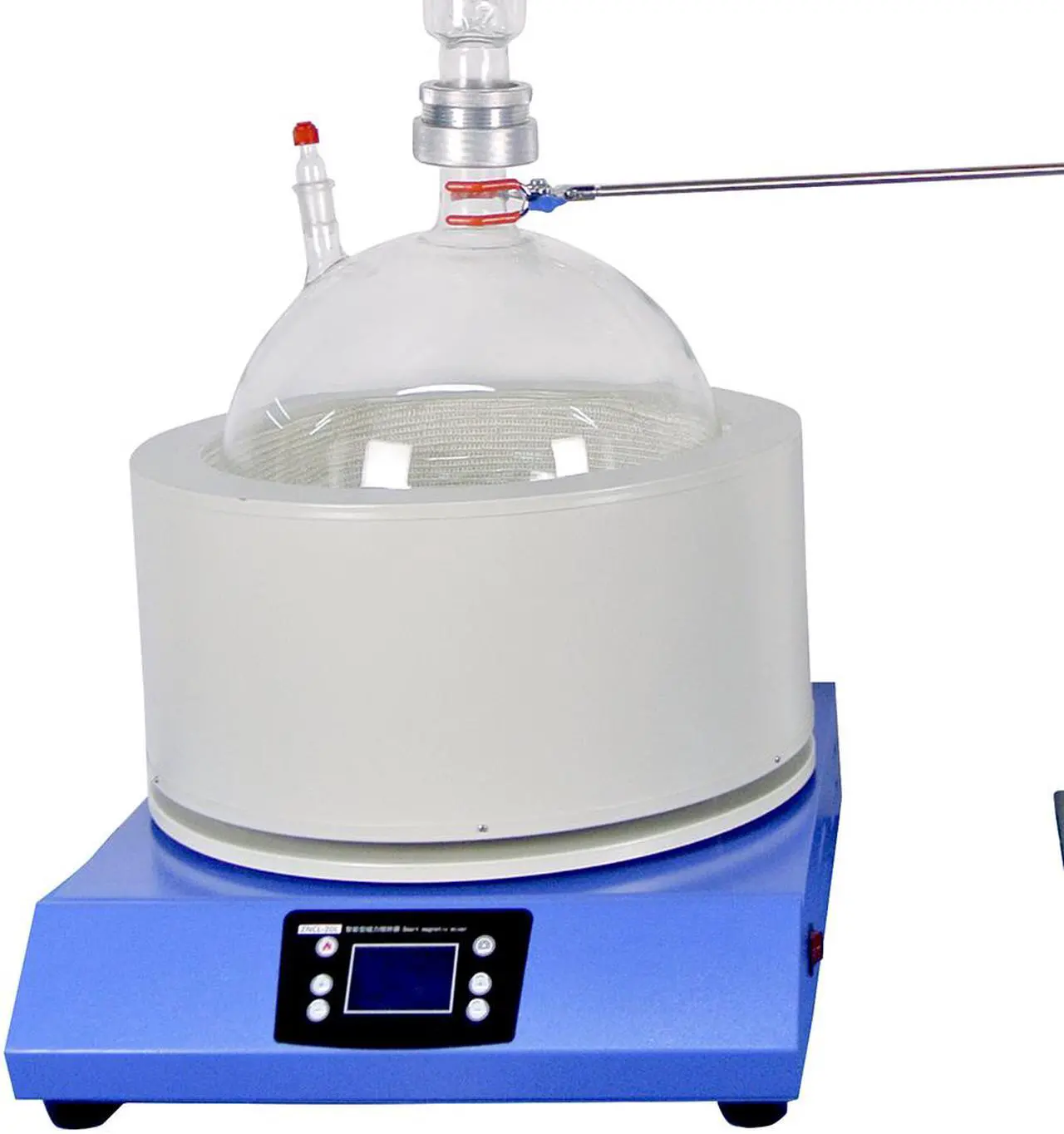

    1 * 10 L Digital Heating Mantle( 110V)
    1 * 10 L Neck Boiling Flask

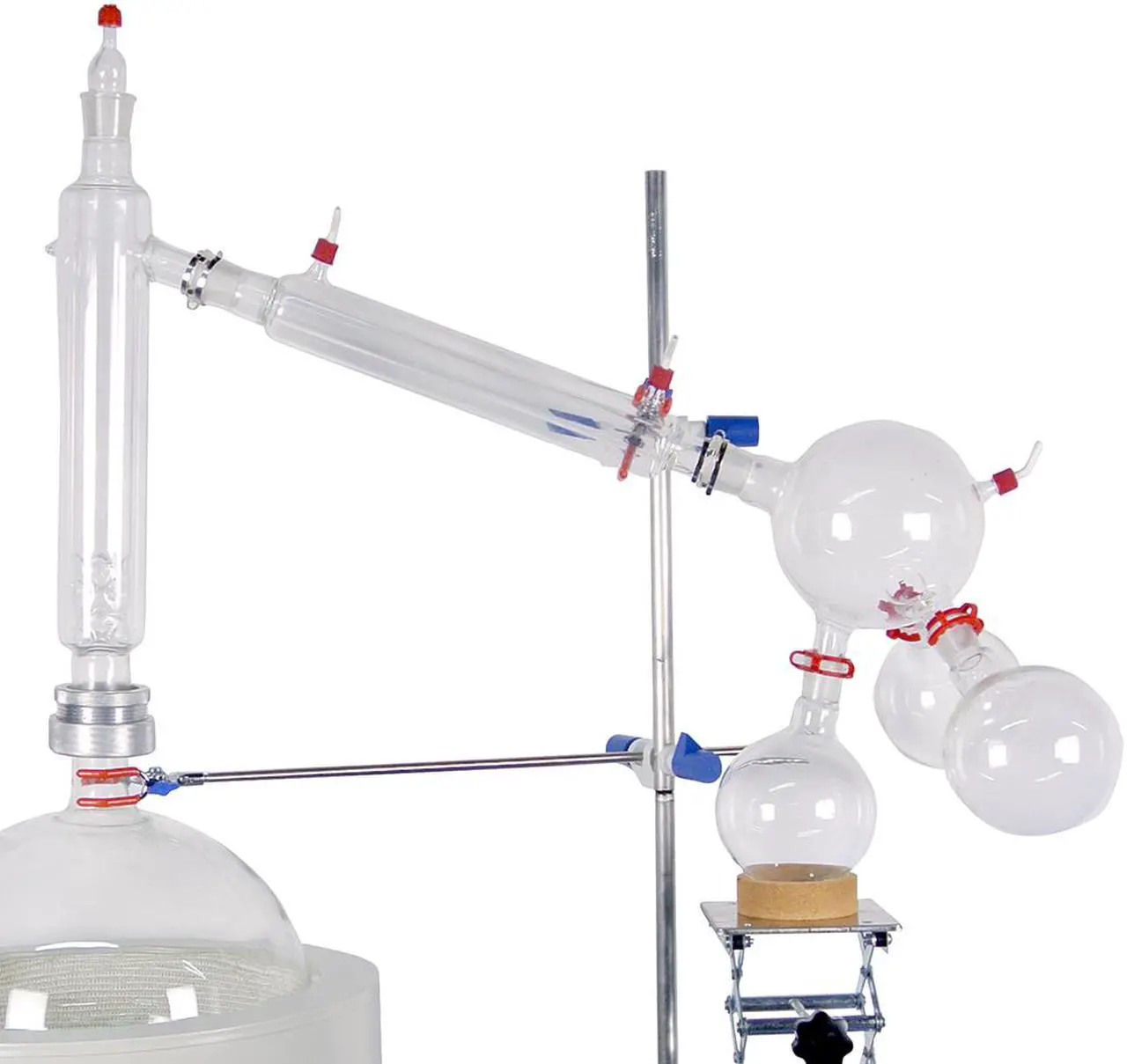

    1 * Short Path Distillation Head
    1 * Cow Receiver
    3 * 500 ml Round Bottom Flasks
    7 * Plastic/Iron Keck Clips
    1 * Cast Iron Stand
    2 * Metal Three Finger Clamp
    1 * Lab Jack
    1 * DLSB-5/10(110V)
    1 * Hose 3m
    1 * 2XZ-2 (110V)
    1 * Vacuum pipe 3m

    >>>> NOTICE
    Price NOT including any destination tariffs or taxes.
    This set is 110V/60Hz, please make sure the choosen VOLTAGE/HERTZ will work with your electric system.
