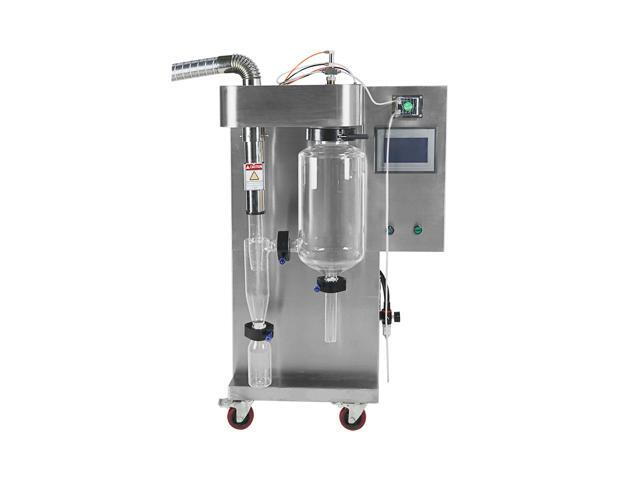

2L High Quality Spray Dryer in Both Automatic Control or Manual Control Mode for Laboratory Use High Speed Centrifugal Spray Dryer,220V
- •Use the screen of touch to display operations, control temperature, air volume, air pressure, pump speed and de-blocking frequency. The inlet and outlet temperatures are precisely controlled by PID.
- •High borosilicate glass, convenient and intuitive to monitor the process status.And easy to clean, very easy to assemble and disassemble.
- •The air compressor is oil-free and does not pollute the compressed air. The sound is lower than 60db, and follow the GMP standard.
- •The spray chamber, cyclone separator and receiving box are all made of borosilicate glass, which can resist strong acid/alkali and high temperature. It can work in a pollution-free and stable environment.
- •Automatic blocking device can prevent nozzle blockage and carry out variable control.
+
+
Overview
Specs
Reviews

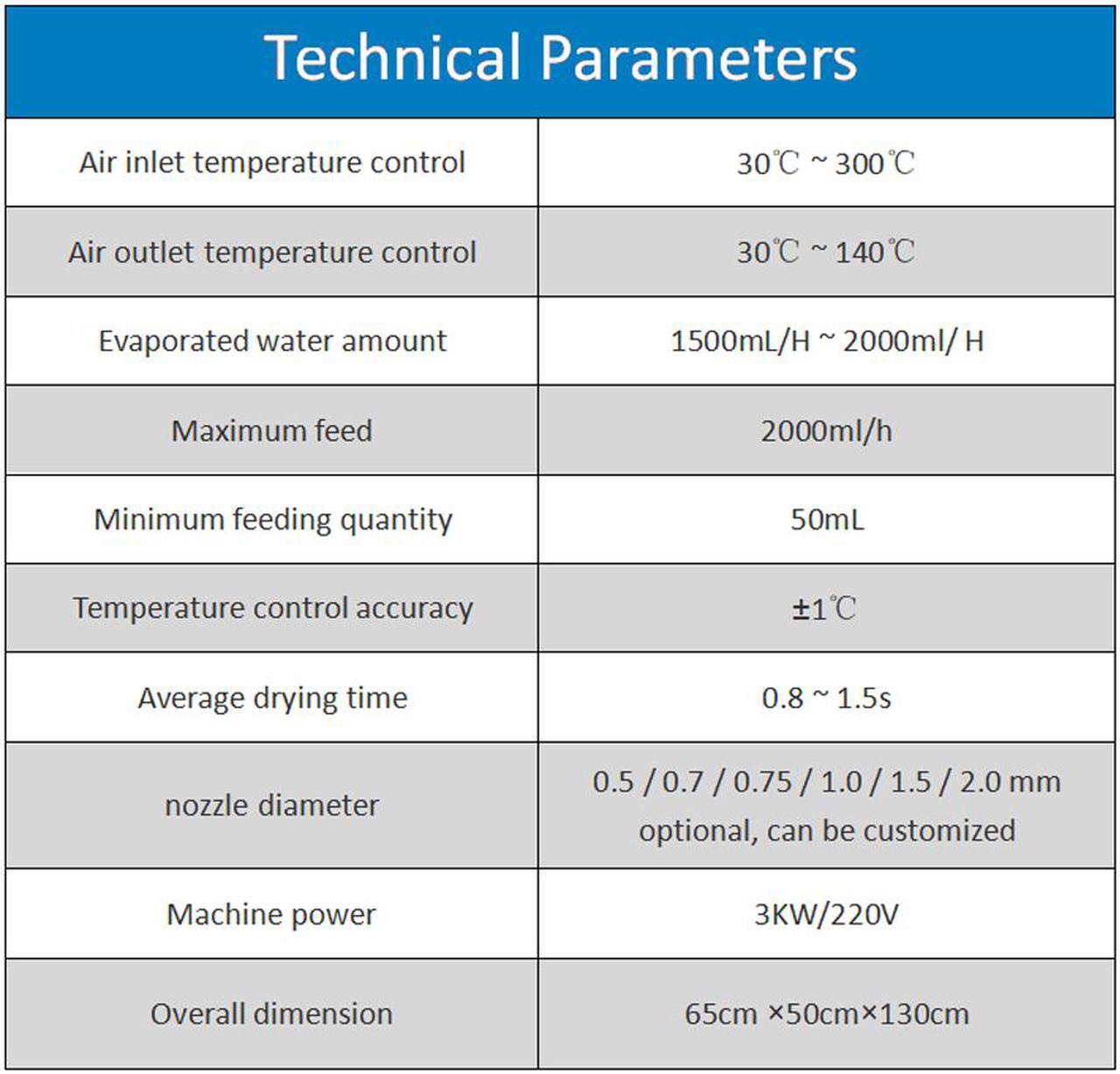

parameter
Voltage: 220V/50HZ
Water evaporation capacity: 2L/h
Heating power: 2.2KW & 4.4KW & 8.8KW
Maximum power: 10KW
Medium: air
Material: stainless steel, high borosilicate glass
Average drying time: 0-1 S
Inlet air temperature control range: RT-300?
Outlet temperature control range: RT-160?
Reaction material: solution or part of suspension
feature
1. Immediately dry, high temperature has little effect on the material, and the powder or particle size is uniform.
2. It can dry heat sensitive materials.
3. Small spray dryer components include: drying tower, atomizer, cyclone separator, collection bottle, waste collection bottle, air compressor, fan, spray dryer body, integrated control circuit.
Note: laboratory research, at least 20-30ml liquid to complete a test.
This machine supports various fields that need to produce powder samples. So far, we have successfully processed samples in the following fields: beverages, flavors and colors, milk and egg products, plant and vegetable extracts, pharmaceuticals, synthetic materials, heat-sensitive materials, plastic polymers and resins, perfumes, blood, ceramics and superconductors Reagents, dyes, soaps and detergents, food, adhesives, oxides, textiles, bones, teeth and dental amalgams, etc.
Voltage: 220V/50HZ
Water evaporation capacity: 2L/h
Heating power: 2.2KW & 4.4KW & 8.8KW
Maximum power: 10KW
Medium: air
Material: stainless steel, high borosilicate glass
Average drying time: 0-1 S
Inlet air temperature control range: RT-300?
Outlet temperature control range: RT-160?
Reaction material: solution or part of suspension
feature
1. Immediately dry, high temperature has little effect on the material, and the powder or particle size is uniform.
2. It can dry heat sensitive materials.
3. Small spray dryer components include: drying tower, atomizer, cyclone separator, collection bottle, waste collection bottle, air compressor, fan, spray dryer body, integrated control circuit.
Note: laboratory research, at least 20-30ml liquid to complete a test.
This machine supports various fields that need to produce powder samples. So far, we have successfully processed samples in the following fields: beverages, flavors and colors, milk and egg products, plant and vegetable extracts, pharmaceuticals, synthetic materials, heat-sensitive materials, plastic polymers and resins, perfumes, blood, ceramics and superconductors Reagents, dyes, soaps and detergents, food, adhesives, oxides, textiles, bones, teeth and dental amalgams, etc.
