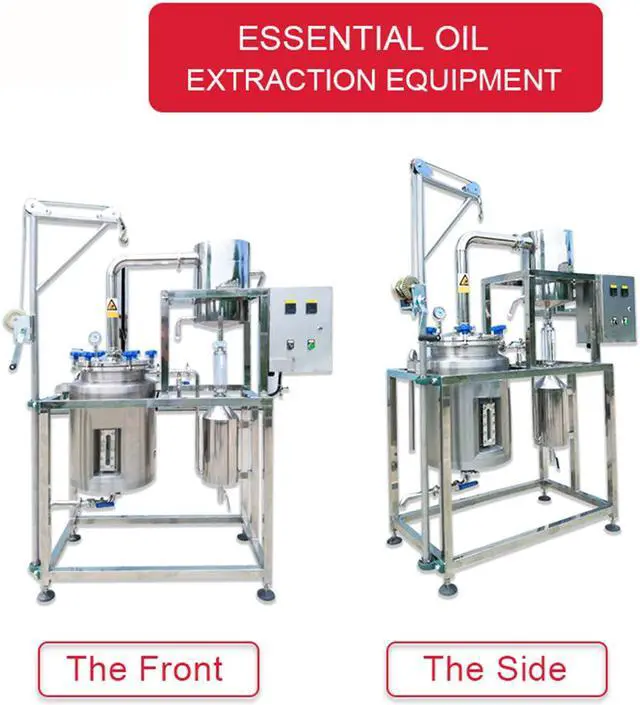

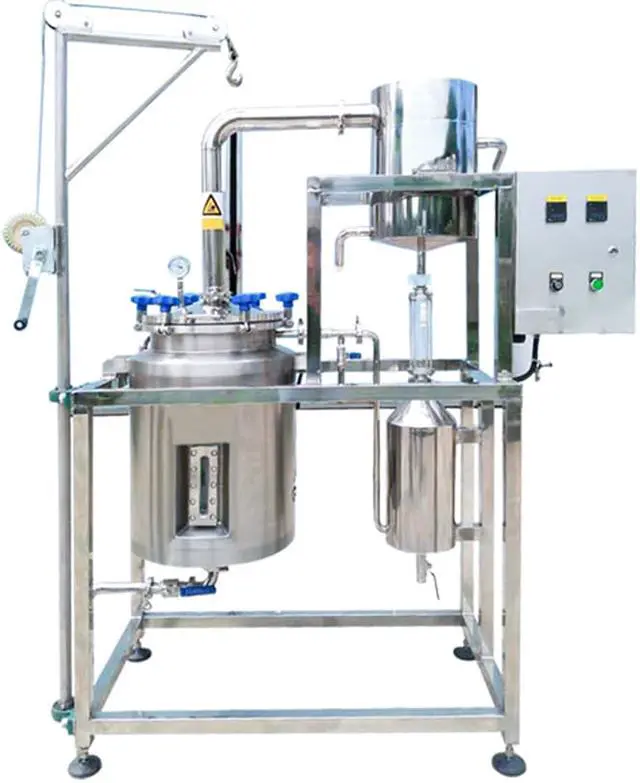

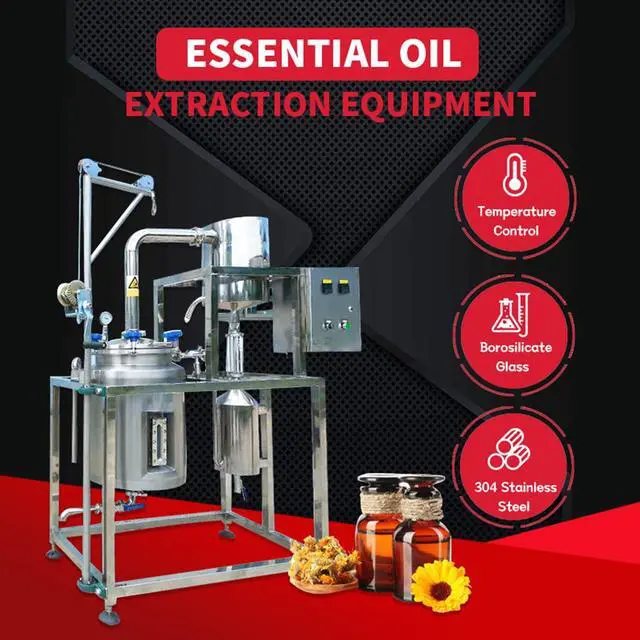

    30L Essential Oil Extraction Equipment Plant Essential Oil Extractor, Low Energy Consumption Stainless Steel Essential Oil Extraction System, High Purity Essential Oil Extraction Device

    Be the first to review this product...
    • Use steam distillation to distill and extract the materials with water or co-water.
    • According to the classic process of essential oil extraction, equipped with advanced automatic control system, reasonable structure design, superior performance, simple and flexible operation, one person can easily complete the entire production.
    • The equipment uses heat-conducting oil for indirect heating, which can quickly reach a high temperature of 100°C under the conditions of ensuring clean, safe and normal pressure.
    • The design of the condensing part of the equipment is unique and the condensing effect is good. The oil-water separation adopts a laboratory-grade glass multi-pipe design, and a special-structure oil-water separator is used to facilitate the separation and collection of essential oils.
    • The equipment has a built-in layered multi-layer distillation blue with an open-top structure, which is very convenient for placing flowers and plants and cleaning the equipment.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Technical Parameters
    Effective volume of extraction tank: 30L
    Heating area of extraction tank: 0.33 cubic meter
    Condenser condensing area: 0.72 cubic meter
    Electric heating power: 6KW (including heat transfer oil heating)
    Condenser material: boride glass and SUS304 stainless steel
    Condenser form: drip irrigation type or short-distance reflux type
    Oil-water separator: boride glass material
    Interlayer pressure: 0.3-0.4Mpa
    Vacuum degree: -0.08Mpa (optional)
    Material: The whole machine adopts 0CR18NI9TI; SUS304
    Liquid level control: glass liquid level test
    Filtration system: two-stage filtration device
    Equipment area: about 1cubic meter

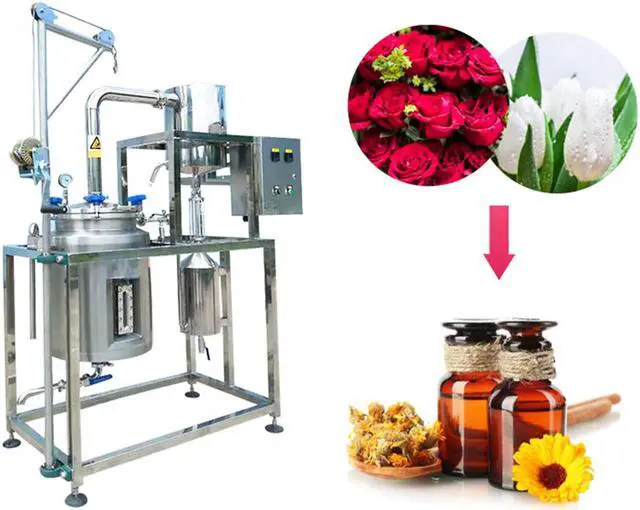

    The essential oil extraction equipment is suitable for the common water and water-proof distillation extraction process of the conventional oils in plant branches, flowers, grasses and animal materials with higher oil content, and the aromatic oils are placed in the distillation container. Pass high-temperature steam into it or put spices and water together to boil, then the essential oils containing aromatic components in the plant will diffuse into the water vapor to form an azeotrope of oil and water; then the azeotrope Cooling, because the oil is insoluble in water, the oil is separated out through the oil-water separator.
