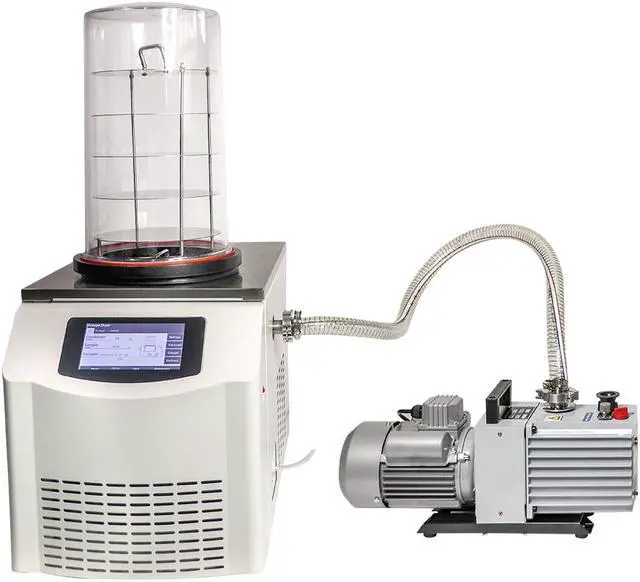

HNZXIB 10N-60A Lab Supplies Small Vertical Laboratory Smart Vacuum Freeze Dryer with Efficient Vacuum-Pump, Sublimation Drying Oven, 110V/220V

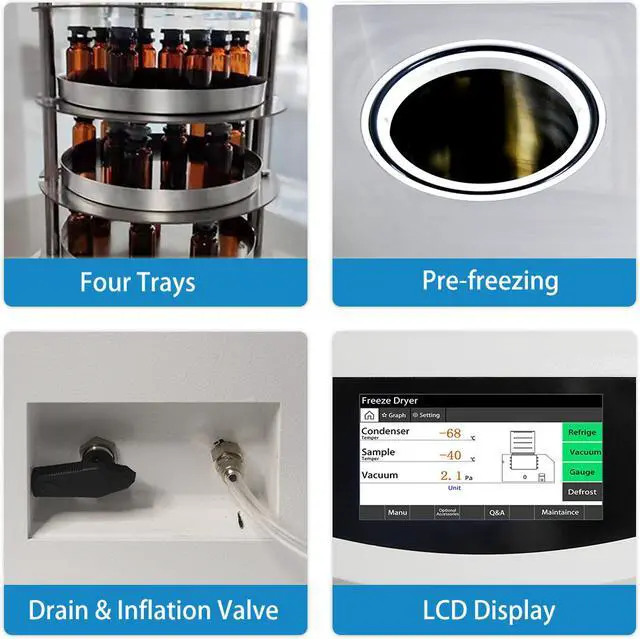

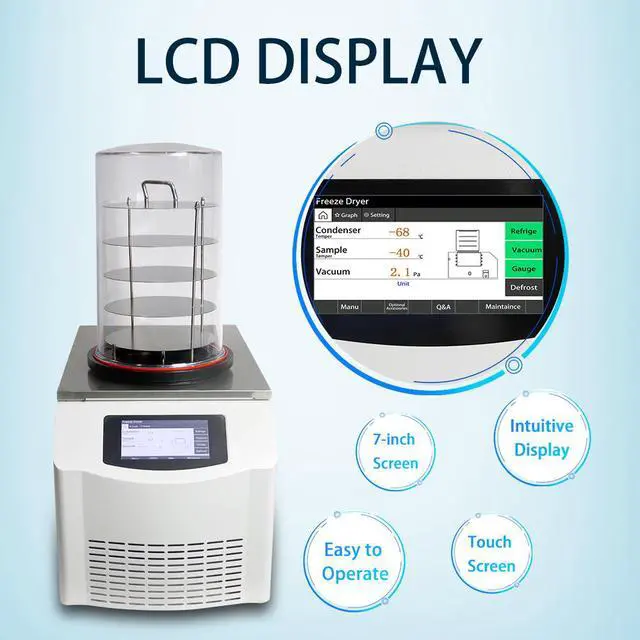

- 1. 7-inch color LCD touch screen display.
- 2. Liquid crystal display drying curve.
- 3. Transparent bell-type drying room, safe and intuitive.
- 4. Anti-return oil vacuum pump and place the pollution of materials.
- 5. High cost-effective laboratory vacuum freeze dryer.
- 6. Mixed environment-friendly refrigerant, green environment-friendly refrigeration capacity is large.

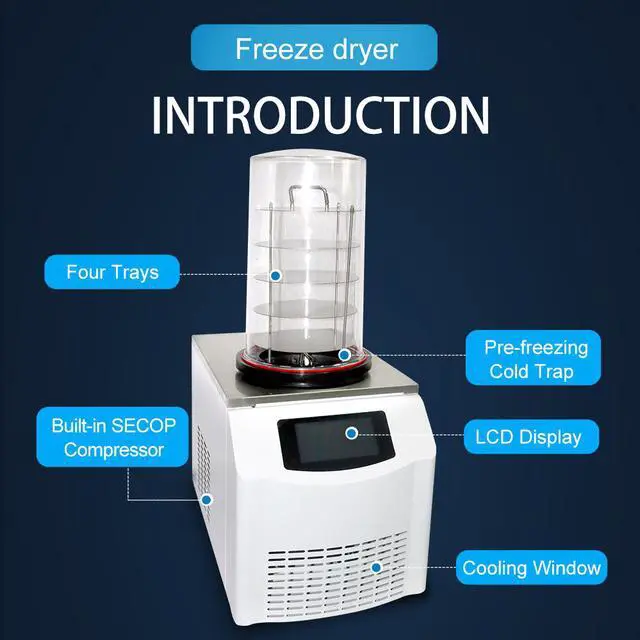

- 7. The drying chamber is integrally formed. No bonding, high strength, no leakage.
- 8. The cold trap has a pre-freezing function, which saves the cost of a low-temperature refrigerator.
- 9. The internal heat exchanger effectively reduces the temperature of the cold trap and has a strong water catching capacity
- 10. SECOP Scop compressor. Low noise, high power and long life.
- 11. Add a nitrogen gas filling valve, which can be filled with nitrogen or inert gas for maintenance after drying.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Vacuum freeze-drying technology, called freeze-drying for short, is also called sublimation drying. It is a method of pre-freezing water-containing materials and then sublimating them under vacuum. Freeze-dried items have basically the same original biological and chemical properties, and are easy to store for a long time. After adding water, they can return to the form before freeze-drying and can maintain their original biochemical properties. Therefore, freeze drying technology is widely used in the chemical industry, lab, food freeze dryers and other fields.
>>>>>>>> 10N-60A Vacuum Freeze Dryer
Ability to capture water(Kg): 3
Drying area(?): 0.12
Tray size(mm): 200*4
Power(W): 850
Vacuum(Pa): Blow 10pa
Tray capacity(L): 1.5
Condenser no-load temperature(?): Blow -60 (-80 optional)
Model: 10N-60A
Voltage(V/Hz): 220V/50Hz or 110V 60hz
Distance between trays(mm): 70
2XZ-2 Efficient Vacuum Pump
Vacuum Pump Features
1.The 2XZ series rotary vane vacuum pump belongs to a two-stage direct connection structure rotary vane vacuum pump, which can be used for drying, sealing the container and other ancillary pumping air or net vacuum equipments.
2.It has the advantages of small size, lightweight, low noise, convenient for using and more.
3.The 2XZ Series Rotary Vane Vacuum Pump can not be used as the compression type delivery pump.
Vacuum Pump Technical Details
Pumping rate (L/S): 2
Ultimate pressure (Pa): 6*10¯²
Speed (r/min): 1400
Working voltage (V): 220
Motor power (KW): 0.37
Inlet diameter (mm): 25
Oil consumption (L): 0.65
Dimensions (mm): 488 x 145 x 280
Noise LwdB(A): 70
Weight (KG): 22
>>>>>>>> Package Contents
1 x 10N-60A Vacuum Freeze Dryer (110V/220V)
1 x 2XZ-2 Efficient Vacuum Pump (110V/220V)
>>>>>>>> 10N-60A Vacuum Freeze Dryer
Ability to capture water(Kg): 3
Drying area(?): 0.12
Tray size(mm): 200*4
Power(W): 850
Vacuum(Pa): Blow 10pa
Tray capacity(L): 1.5
Condenser no-load temperature(?): Blow -60 (-80 optional)
Model: 10N-60A
Voltage(V/Hz): 220V/50Hz or 110V 60hz
Distance between trays(mm): 70
2XZ-2 Efficient Vacuum Pump
Vacuum Pump Features
1.The 2XZ series rotary vane vacuum pump belongs to a two-stage direct connection structure rotary vane vacuum pump, which can be used for drying, sealing the container and other ancillary pumping air or net vacuum equipments.
2.It has the advantages of small size, lightweight, low noise, convenient for using and more.
3.The 2XZ Series Rotary Vane Vacuum Pump can not be used as the compression type delivery pump.
Vacuum Pump Technical Details
Pumping rate (L/S): 2
Ultimate pressure (Pa): 6*10¯²
Speed (r/min): 1400
Working voltage (V): 220
Motor power (KW): 0.37
Inlet diameter (mm): 25
Oil consumption (L): 0.65
Dimensions (mm): 488 x 145 x 280
Noise LwdB(A): 70
Weight (KG): 22
>>>>>>>> Package Contents
1 x 10N-60A Vacuum Freeze Dryer (110V/220V)
1 x 2XZ-2 Efficient Vacuum Pump (110V/220V)
