Introduce
Vacuum freeze-drying technology, called freeze-drying for short, is also called sublimation drying. It is a method of pre-freezing water-containing materials and then sublimating them under vacuum. Freeze-dried items have basically the same original biological and chemical properties, and are easy to store for a long time. After adding water, they can return to the form before freeze-drying and can maintain their original biochemical properties. Therefore, freeze drying technology is widely used in the chemical industry, lab, food freeze dryers and other fields.
2XZ-2 Efficient Vacuum Pump
A rotary vane vacuum pump is an oil- sealed rotary displacement pump. The pumping system consists of a housing, an eccentrically installed rotor, vanes that move radially under centrifugal and resilient forces and the inlet and outlet. The inlet valve, if available, is designed as a vacuum safety valve that is always open during operation.
10N-60B Top stopper type
Condenser Temperature: 60
Condenser Ice Capacity: 3kg/batch

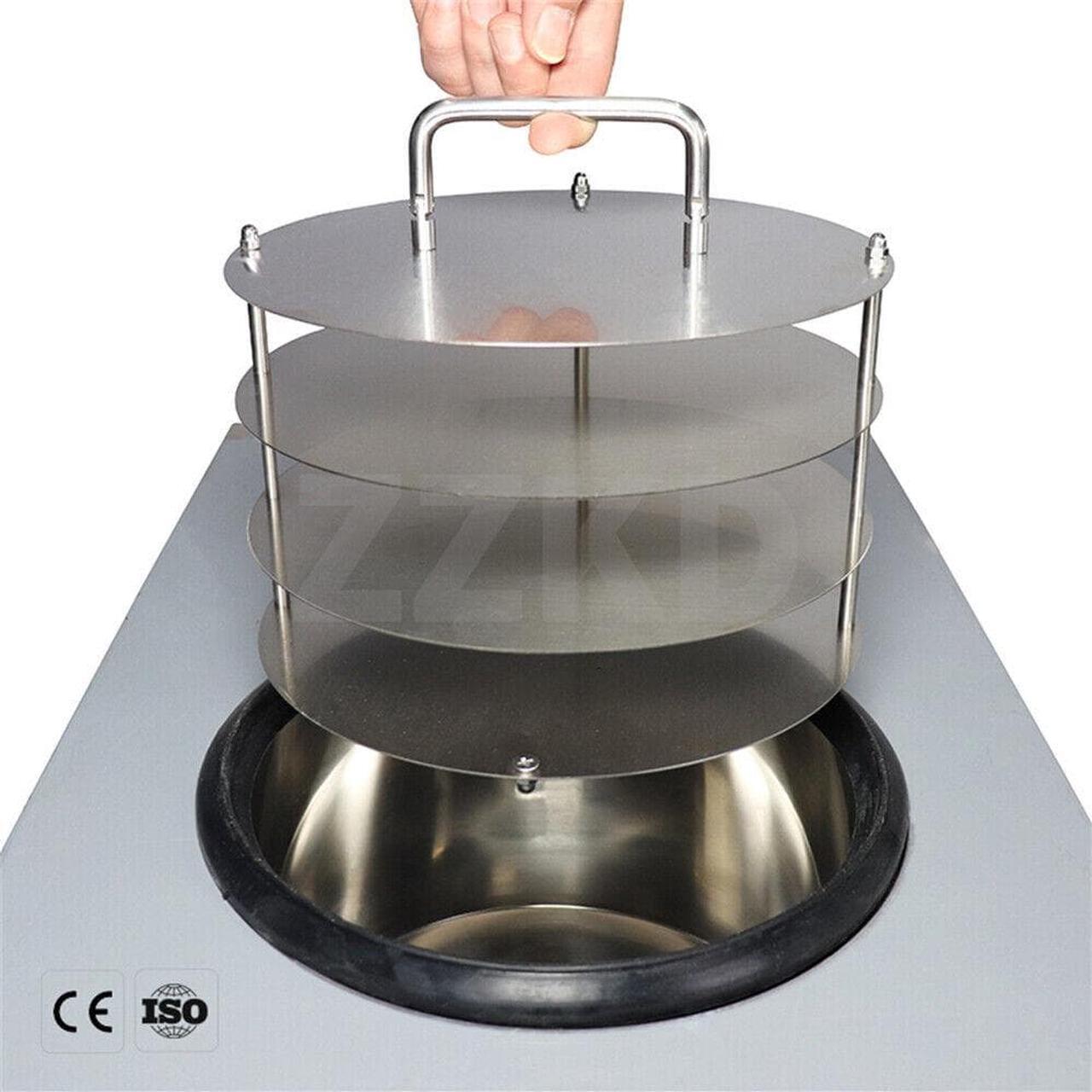

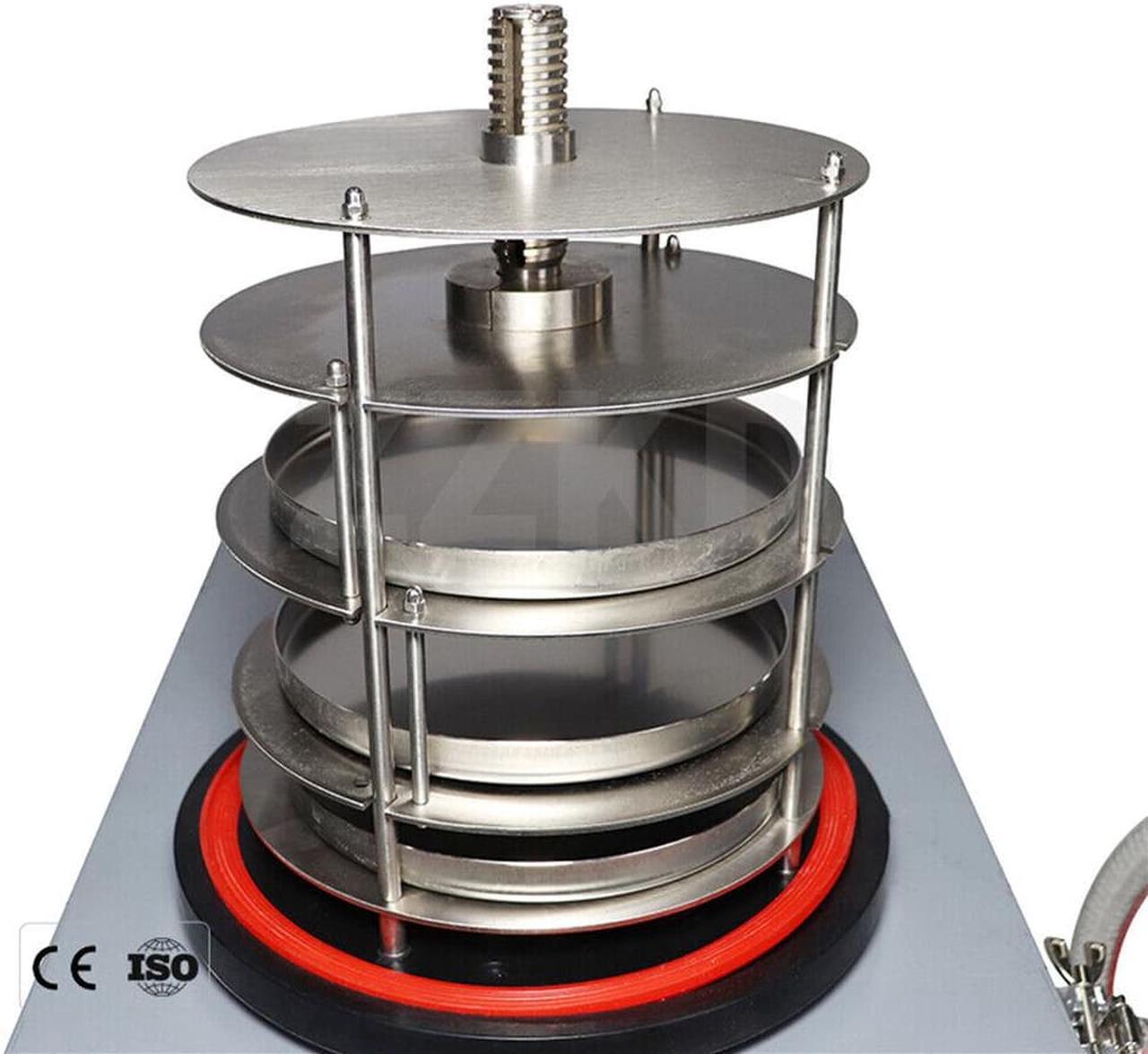

Tray size: Ø200mm x3
Drying area: 0.092 / 0.12
vacuum pressure: 5Pa
Rated power: 850w
Power supply: 110V/60hz

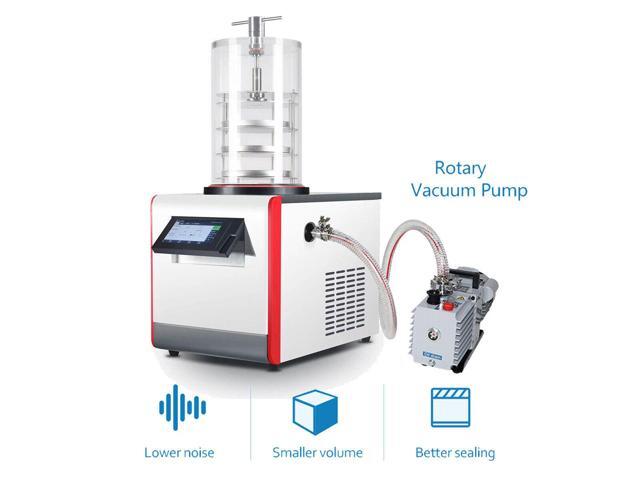

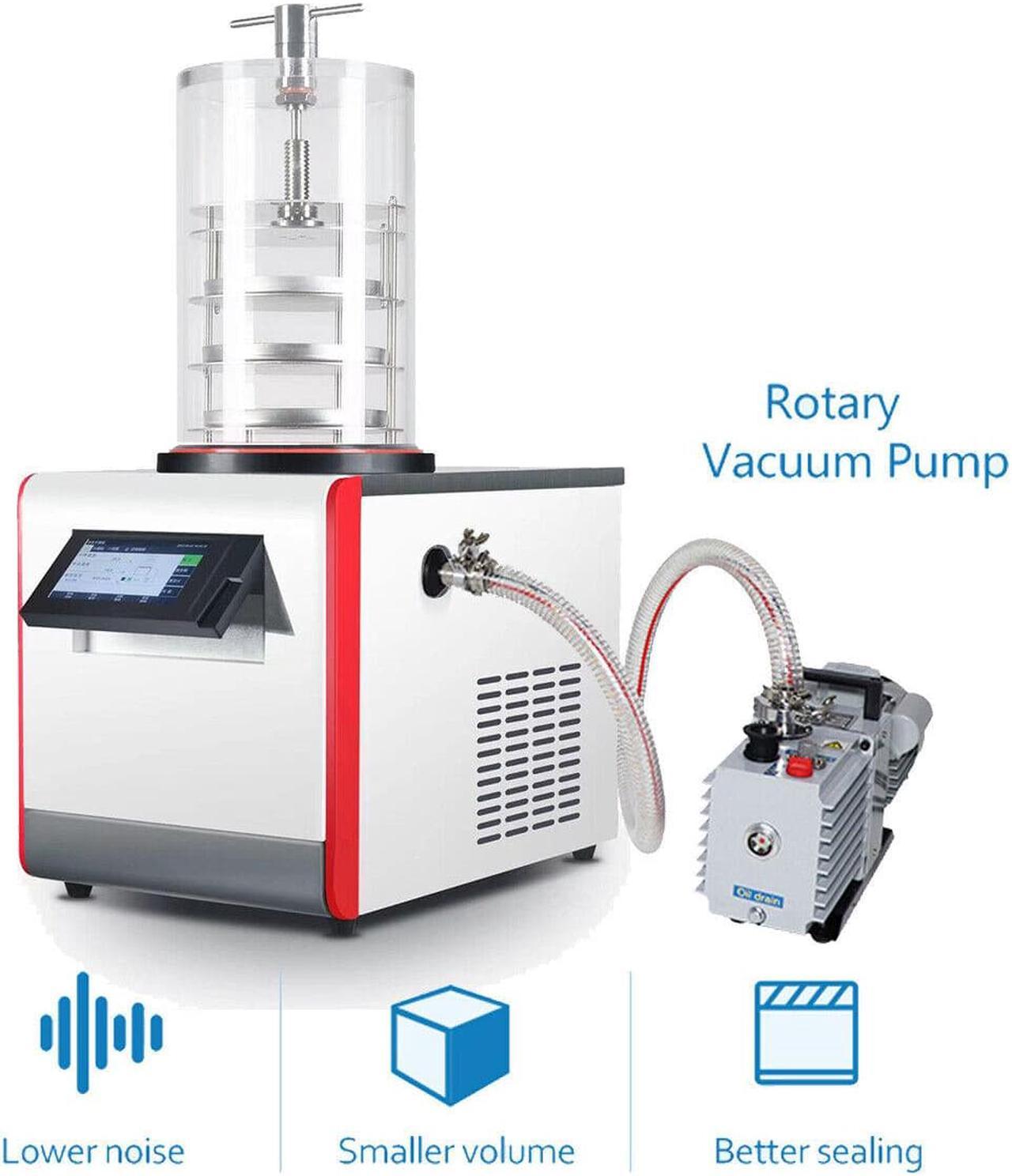

Rotary Vane Vacuum Pump
Model: 2XZ-2
Exhausting Speed(L/S): 2
Without Cas Ballast: 6*10-2
Rotary Speed(r/min): 1400
Working Voltage (V): 110V/60HZ
Motor power (kW): 0.37
Inlet diameter (mm): 25(KF-25)
Oil Capacity (L): 0.65
Temp. Rise of
Pump Oil(): 40
Noise (Db): 70
Package Contents
1 x 10N-60 Vacuum Freeze Dryer (110V/60HZ)
1 x 2XZ-2 Efficient Vacuum Pump (110V/60HZ)
