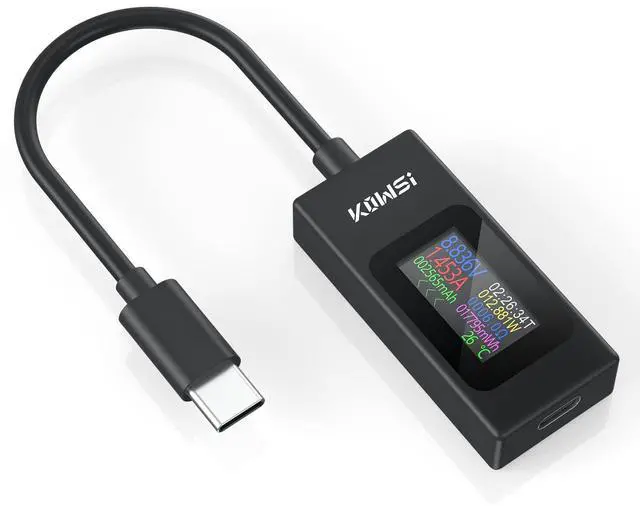

YOJOCK Upgraded USB TESTER - KWS-066C
NOTE:
- If it is powered by the USB A charger, the screen of USB Tester will light up without connecting charging device.
- If it is powered by a PD (Type-C) charger, it requires a charging device to be connected to light up the USB Tester Screen.

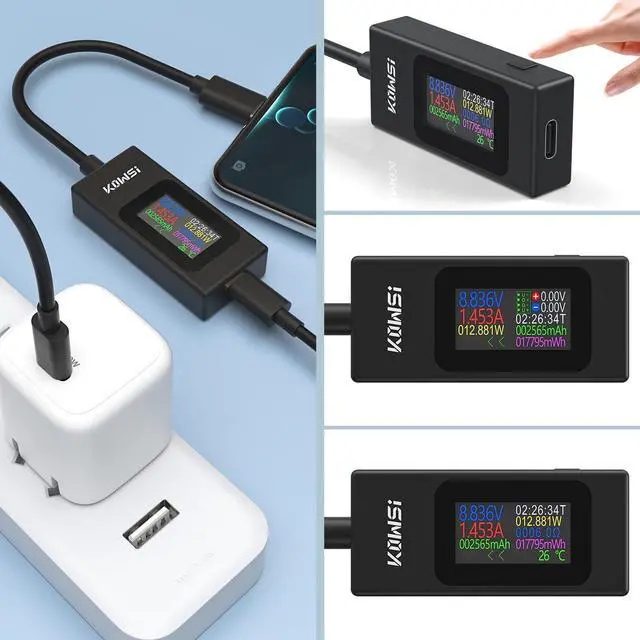

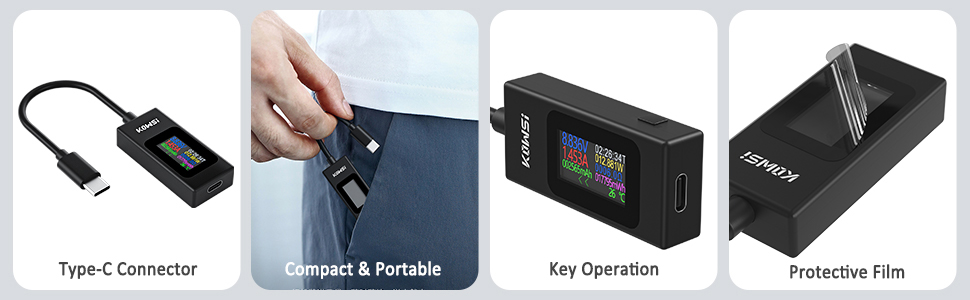

Method of Operation
- Click the button once to switch screens in a cyclical manner.
- Double-click the button to rotate the displayed content.
- Press and hold the button (3 seconds): Clear all capacity(mAh), amount of electricity(mWh), and timing.
Calibration Method
- If it is powered by the USB A charger, press and hold the button and then connect the power supply (no need to connect the load), the USB tester will automatically calibrate.
- If it is powered by a PD charger, press and hold the button and then connect the power supply (requires a load to be connected), the USB tester will automatically calibrate.
Additional Notes
Please note that under normal circumstances the USB tester will not power on without a device connected (host, charger, accessory, etc) at both ends.

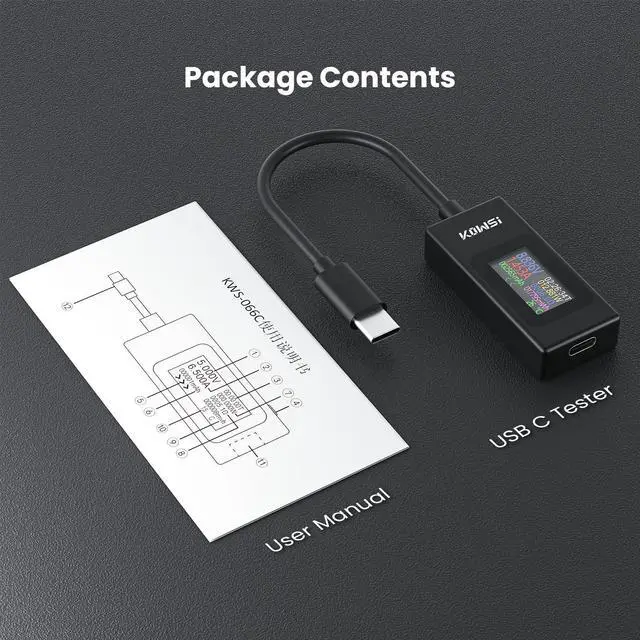

Package Included
- 1 x USB C Tester
- 1 x Storage Box
- 1 x User Manual
Measuring Parameters
Test the Maximum Output Current of the Charger
The USB meter can test the highest current output of the Wireless Charger/ Wireless Charging Stand/Wireless Charging Pad. With power-off storage function, which is convenient for subsequent viewing.
Test Capacity and Electric Energy of Power Bank
Fully charge power bank firstly, then connect this USB C tester to it and reset the capacity and electric energy by long pressing. Then fully discharge with USB C meter by 5v load till power bank run out of its energy. The mAh shows is the real capacity of your power bank.

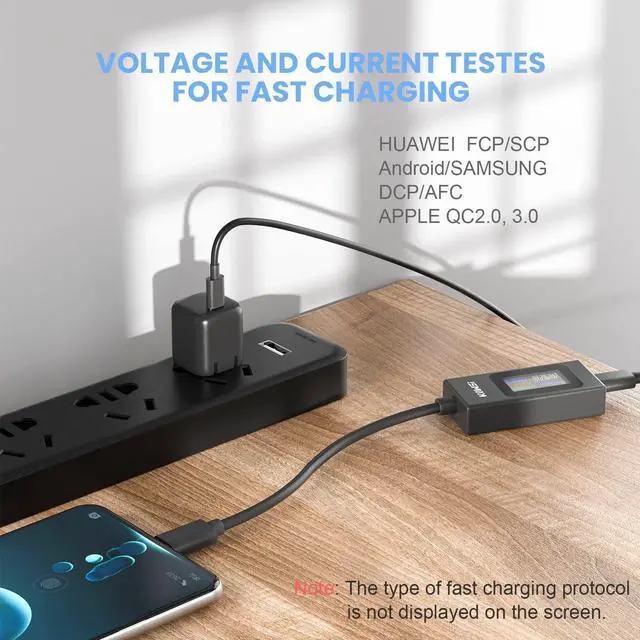

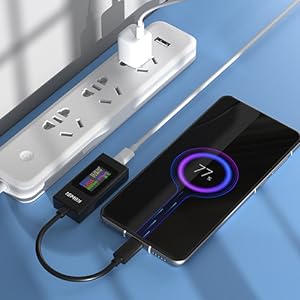

Monitor The Charging Status in Real Time
When powering the Type-C devices, connect a YOJOCK test meter to monitor the voltage, current, capacity, power, temperature and other technical parameter information in real time.
YOJOCK is a global brand in the consumer electronics accessories industry, provide customer around the world with high quality product and authentic service.
We devote ourselves to provide reliable, safe, durable and stable quality products to our customers. Take a look at our extensive products on store. I believe you will be able to find to meet the needs of electronics products.
YOJOCK USB C Tester
A Must Gadget checks the charging performance(charging speed and quality).
USB Tester Tool
![YOJOCK 8K Displayport Cable 1.4, Monitor DP Cable 6.6ft/2M [8K@60Hz, 4K@144Hz, 2K@165Hz, HDR] Hig...](//c1.neweggimages.com/sellingpilot/modules/product/a-plus/5864b43f2008ce00b210d9a799b64ee6a472b8403690635962a4b7f30a17e656.jpg)
Cable Accessories
![YOJOCK 8K Displayport Cable 1.4, Monitor DP Cable 6.6ft/2M [8K@60Hz, 4K@144Hz, 2K@165Hz, HDR] Hig...](http://c1.neweggimages.com/sellingpilot/modules/product/a-plus/5864b43f2008ce00b210d9a799b64ee6a472b8403690635962a4b7f30a17e656.jpg)
YOJOCK Upgraded USB TESTER - KWS-066C
NOTE:
- If it is powered by the USB A charger, the screen of USB Tester will light up without connecting charging device.
- If it is powered by a PD (Type-C) charger, it requires a charging device to be connected to light up the USB Tester Screen.
Method of Operation
- Click the button once to switch screens in a cyclical manner.
- Double-click the button to rotate the displayed content.
- Press and hold the button (3 seconds): Clear all capacity(mAh), amount of electricity(mWh), and timing.
Calibration Method
- If it is powered by the USB A charger, press and hold the button and then connect the power supply (no need to connect the load), the USB tester will automatically calibrate.
- If it is powered by a PD charger, press and hold the button and then connect the power supply (requires a load to be connected), the USB tester will automatically calibrate.
Additional Notes
Please note that under normal circumstances the USB tester will not power on without a device connected (host, charger, accessory, etc) at both ends.
Package Included
- 1 x USB C Tester
- 1 x Storage Box
- 1 x User Manual

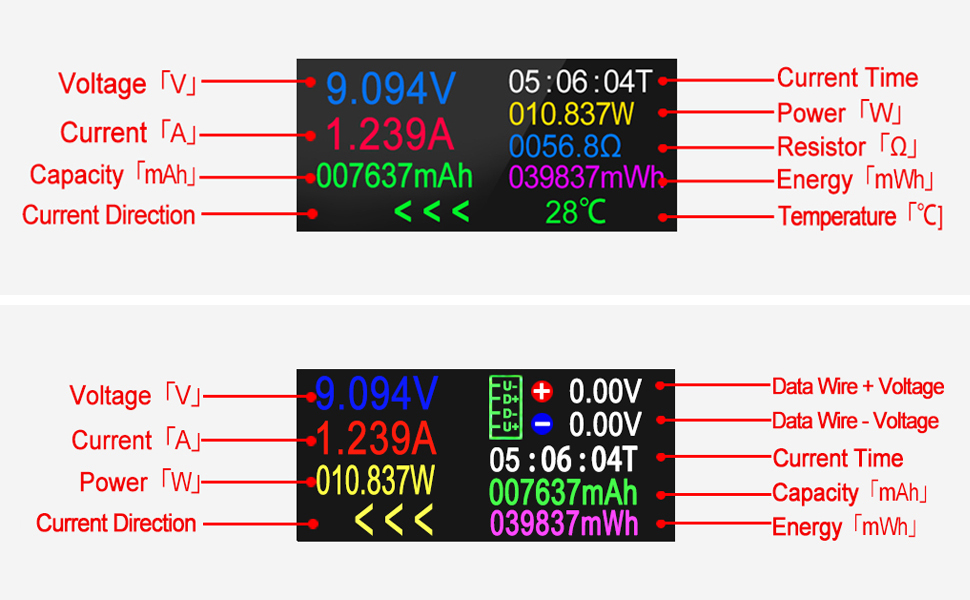

Measuring Parameters
| Voltage: | 4-30V |
| Current: | 0-6.5A |
| Power: | 0-195W |
| Capacity: | 0-999999mAh |
| Energy: | 0-999999mWh |
| Resistance: | 1-9999.9O |
| Time: | 0-99h |
| Temperature: | 0-80? |
Test the Maximum Output Current of the Charger
The USB meter can test the highest current output of the Wireless Charger/ Wireless Charging Stand/Wireless Charging Pad. With power-off storage function, which is convenient for subsequent viewing.

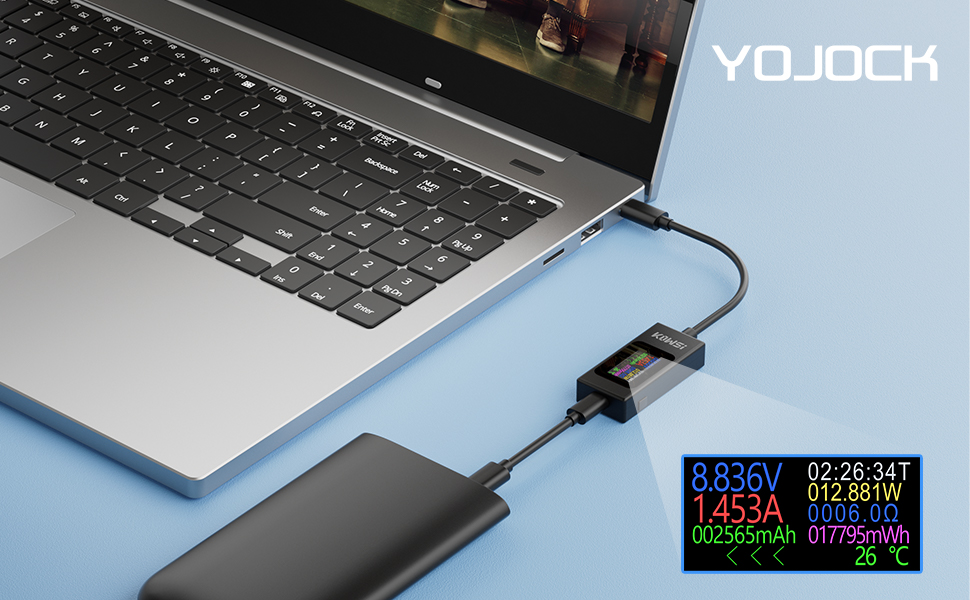

Test Capacity and Electric Energy of Power Bank
Fully charge power bank firstly, then connect this USB C tester to it and reset the capacity and electric energy by long pressing. Then fully discharge with USB C meter by 5v load till power bank run out of its energy. The mAh shows is the real capacity of your power bank.

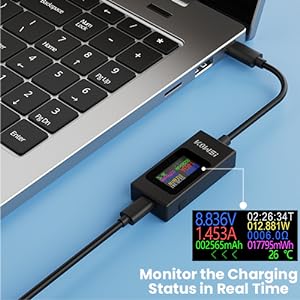

Monitor The Charging Status in Real Time
When powering the Type-C devices, connect a YOJOCK test meter to monitor the voltage, current, capacity, power, temperature and other technical parameter information in real time.
YOJOCK is a global brand in the consumer electronics accessories industry, provide customer around the world with high quality product and authentic service.
We devote ourselves to provide reliable, safe, durable and stable quality products to our customers. Take a look at our extensive products on store. I believe you will be able to find to meet the needs of electronics products.

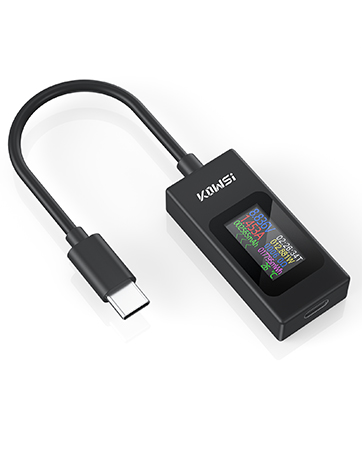

YOJOCK USB C Tester
A Must Gadget checks the charging performance(charging speed and quality).
USB Tester Tool
