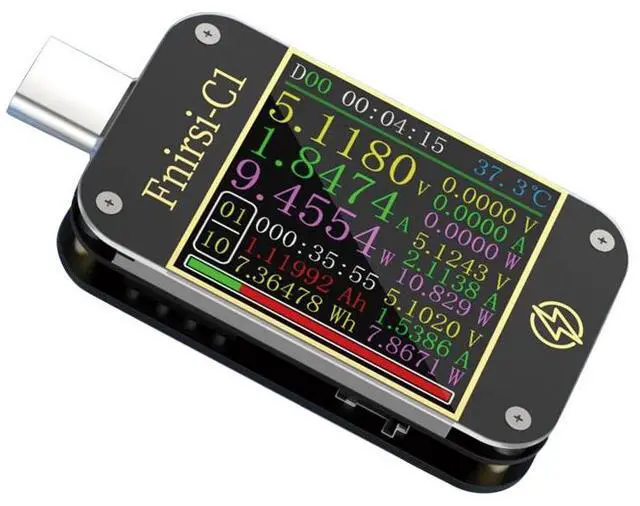

SI-C1 Type-C PD Trigger USB-C Voltmeter Ammeter Fast Charging Protocol Test Type-C Meter Power Bank tester With PC Software

FNIRSI-C1 Product Manual:

https://www.mediafire.com/file/ju57qo52v3tx3nf/FNIRSI-C1_Product_Manual_v1.0.docx/file

FNIRSI UsbMeter PC Software: https://www.mediafire.com/file/i9cw11iu5zaucea/FNIRSI_UsbMeter_PC_Software_V0_0_4.rar/file

FNIRSI UsbMeter PC Software Manual:

https://www.mediafire.com/file/fuqw55k572ti94q/FNIRSI_UsbMeter_PC_Software_Manual-EN-V0.1.docx/file

FNIRSI-C1 Bluetooth APP :

https://www.mediafire.com/file/wtg9tez17iyutrw/FNIRSI-C1_Bluetooth_APP_%25C3%25AF%25C2%25BC_Android%25C3%25AF%25C2%25BC__v1.0.apk/file

FNIRSI-C1 Firmware-v0.60:

https://www.mediafire.com/file/fprj51scc5wycag/FNIRSI-C1_Latest_Firmware_V0.60.rar/file

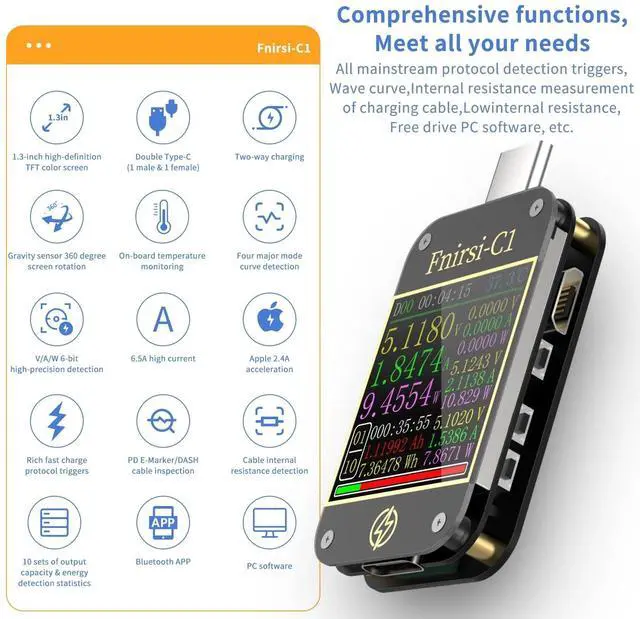

Features:

Specifications:

Monitoring voltage: 4~24V

Monitor voltage resolution: 0.00001V

Monitoring voltage accuracy: ±(0.2+2)

Monitoring current: 0~6.5A

Display current resolution: 0.00001A

Monitoring current accuracy: ±(0.5+2)

Display power: 0~130W

Display current resolution: 0.00001W

Monitoring current accuracy: ±(0.5+2)

Load equivalent resistance: 0~9999.9

Load equivalent resistance resolution: 0.0001

Load equivalent resistance accuracy: ±(0.5+2)

Capacity: 0~9999.99Ah

Use energy: 0~9999.99Wh

Cable resistance: 0~9999.9

D+/D- voltage: 0~3.3V

D+/D- voltage resolution: 0.001V

D+/D- voltage accuracy: ±(1.0%+2)

Equipment temperature: /

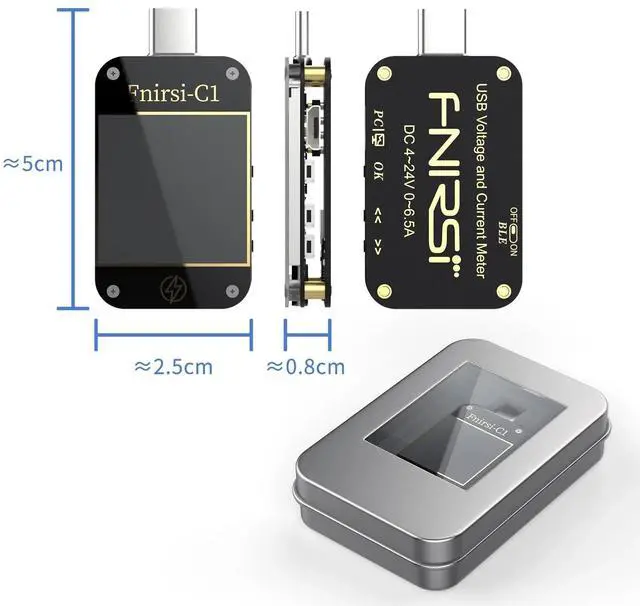

Package size: 50*25*8mm / 1.97* 0.98 * 0.31in

Package weight: 47g / 1.66oz

Compatibility Issues:

There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and

test the software before buying the product.

There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install

and test the APP before buying the product.

If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or

APP, we refuse to refund.

Please do install and test the APP if you use Samsung mobile phone.

How to upgrade the firmware of FNIRSI's latest Type-C USB tester? Look Here !!

https://www.youtube.com/watch?v=O4mb23lNBiE

The evaluation plan is in progress....
