Vszerda Passive HD Video Balun BNC to RJ45 Network Transceiver Cat5/Cat6 Adapter Cable with DC Power 720P - 8MP Cat6 to BNC Male Connecto for CCTV Security Surveillance Camera System(16.5cm/4Pairs)

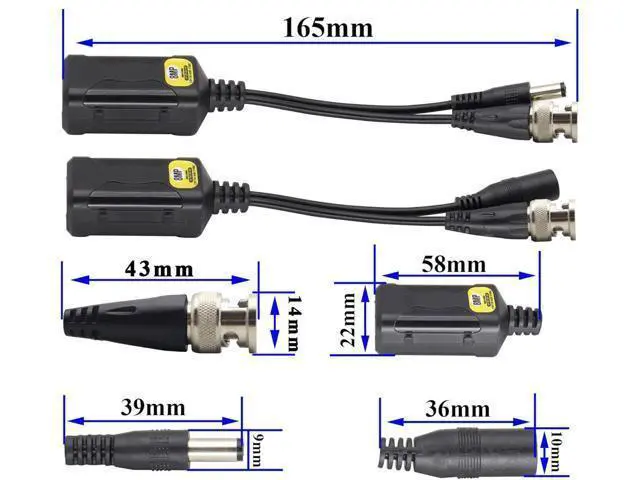

Size: Length
16.5CM / 6.5I nch)Colour: (Black)

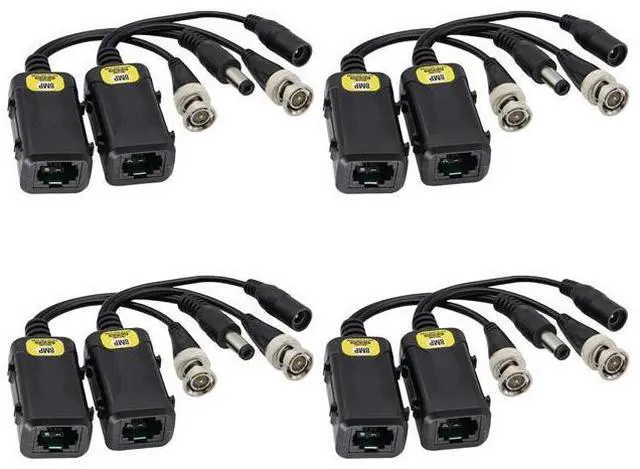

Package Quantity: (4
Pairs) Material: Plastic+Metal

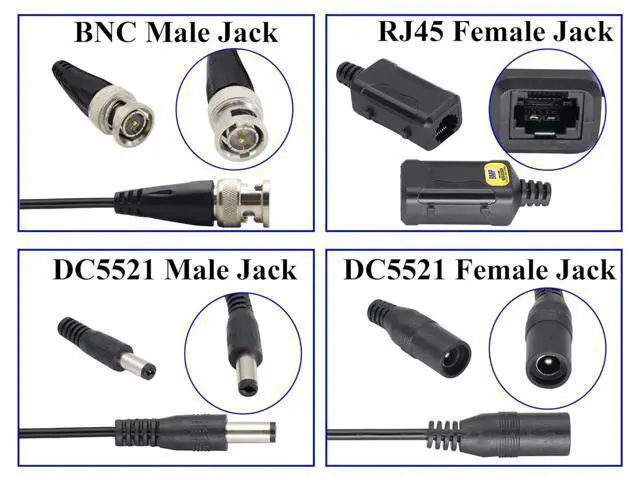

Features: Balun HD cat5/cat6 female to BNC male video baluns+DC 5.5 x 2.1 mm female /male jack adapter cable; 8MP/4K HD Video BNC and DC Power Transmission to UTP CAT5/CAT6 RJ45 cable.
Transmission Maximum distance length: HD-CVI/AHD/TVI/CVBS
Cameras: (720P 960P (MAX) Transmission 300 meters/984ft), (1080P 3MP 4MP 5MP 8MP (MAX) Transmission 200 meters/656ft). Maximum Transmission of DC power is 200 meters/656ft, input, and output 12V~48V(no voltage regulator chip, please choose the appropriate power supply according to the camera voltage). The RJ45 female connector adopts the HD568B connection method.;

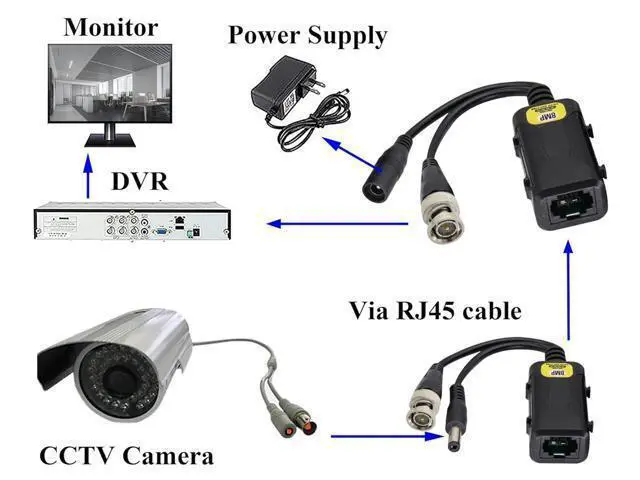

(Note: Not applicable to any IP digital cameras or NVR systems! ) Compatible withHD CVI, TVI, CVBS and AHD video devices, Fit for 720P 960P 1080P 3MP 4MP 5MP 8MP CCTV Cameras, monitor, DVR card and recorder etc. Easy installation, using the standard UTP CAT5/CAT5E/CAT6 cable system and (12-48V) low voltage power supply.;
Note: Power
voltage drop calculations: For 12V DC 1Amp, Cable distance should not exceed 90 feet/27 meters. For longer distances, please use 14V DC, 16V DC, 18V DC, 20-48V DC.

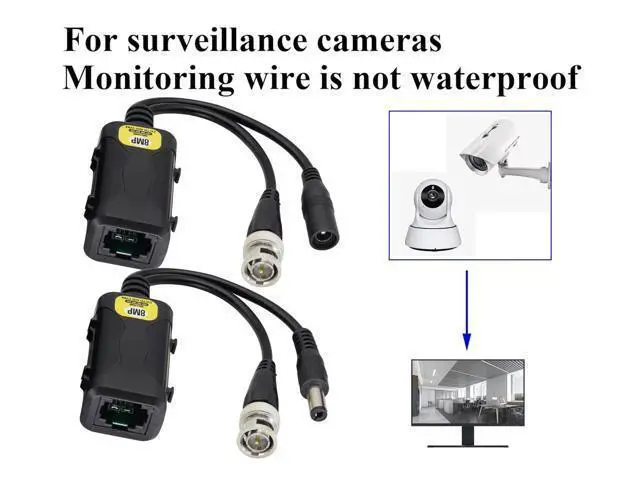

Note: RJ45 video balun is not waterproof. For indoor use only. Make sure the rj45 for camera side and DVR side are the same standardsWrongfully mixing the colors may result in burning the camera and devices.
