PEMENOL DC-DC CNC USB Step Up/Down Power Supply Regulator Module 3.5V-12V to 1.0V-24V 2-3W, Adjustable Boost Buck Voltage Converter Digital Display Voltmeter Ammeter Battery Capacity Tester
- Power System (PER)There are 3 input interfaces, USB, micro USB, Type-C, input any interface, under the power system (PER), you can output an adjustable voltage from 1.0V to 24V, power 2-3W. Note: It is a low power supply, please do not exceed the maximum output power.; Multimeter System (VAH): The CNC USB power supply regulator module can measure voltage and current, test power, capacity, and time just like a multimeter. It can also test the current ambient temperature. Temperature range
- 20~70; With multiple protection functions When the voltage0.8V, there will be under-voltage protection(LVP); when the input current2A, there will be overcurrent protection(OCP); When using over power, there will be over-power protection(OPP). After protection, the output will be automatically turned off, the LCD backlight will flash, and the corresponding protection will be displayed(LVP, OCP, OPP); Small size, easy to carrysmall size 78*28*17mm with Anti-extrusion packaging box.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

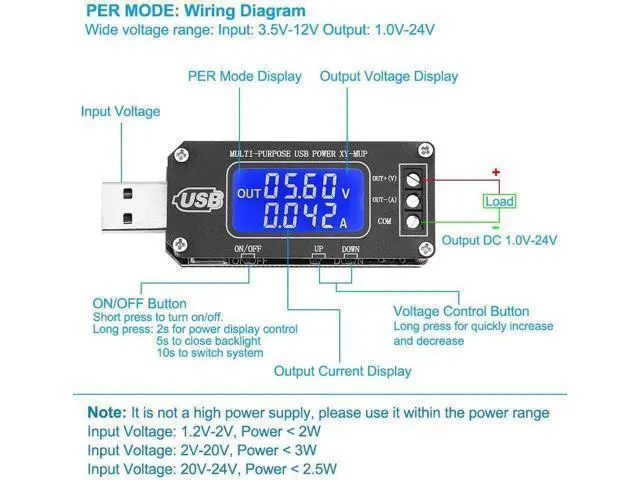

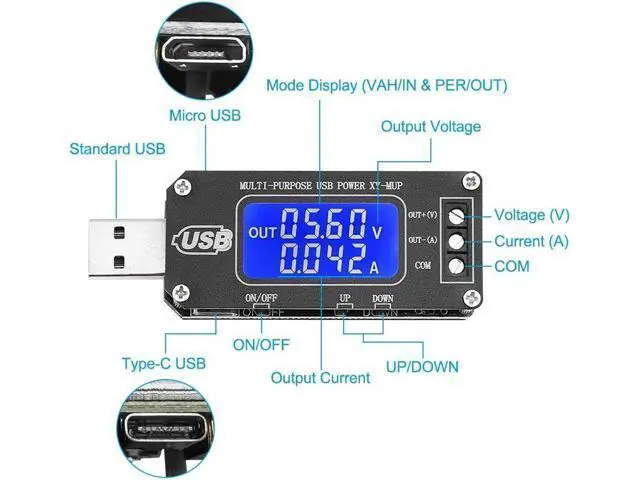

Power System (PER) There are 3 input interfaces, USB, micro USB, Type-C, input any interface, under the power system (PER), you can output an adjustable voltage from 1.0V to 24V, power 2-3W.
Note: It is a low power supply, please do not exceed the maximum output power.;

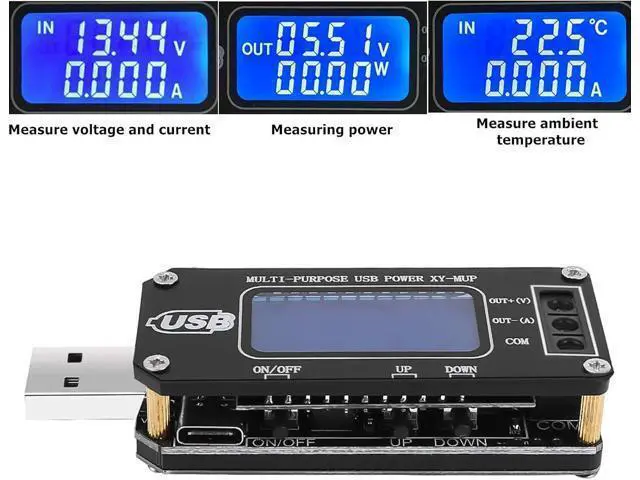

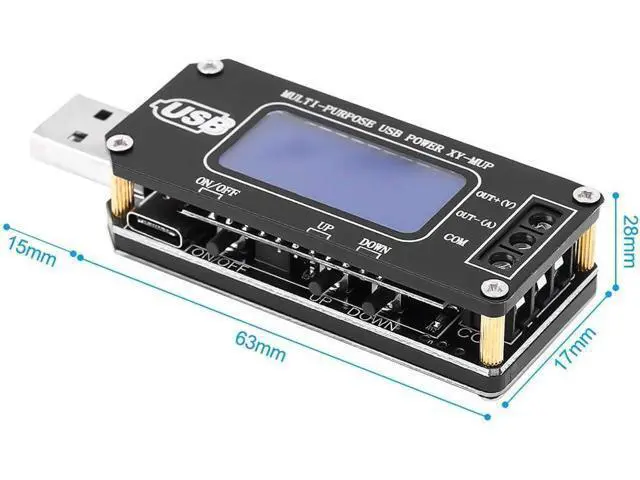

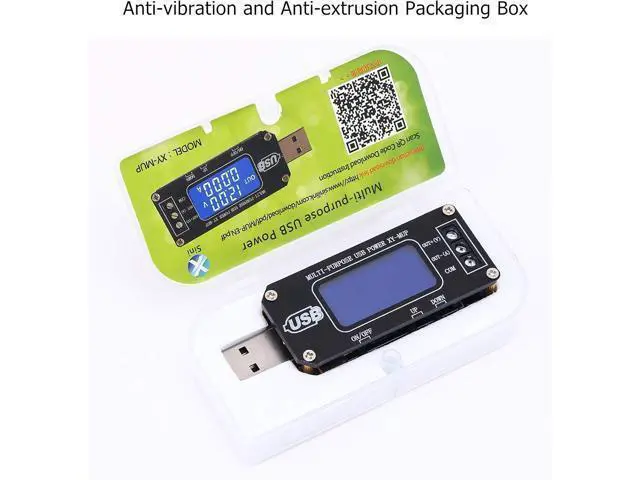

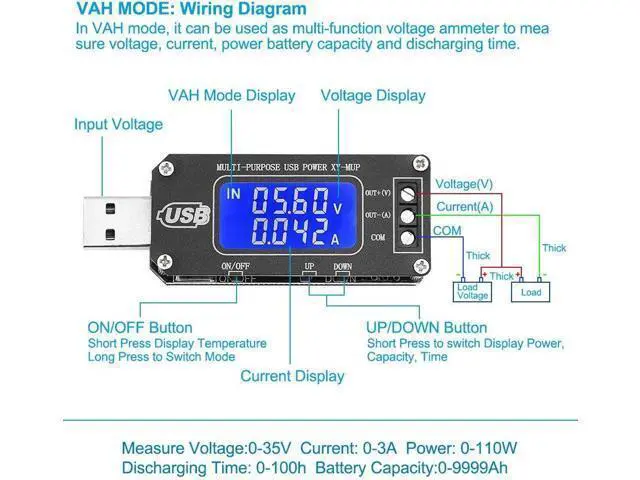

Multimeter System (VAH): The CNC USB power supply regulator module can measure voltage and current, test power, capacity, and time just like a multimeter. It can also test the current ambient temperature. Temperature range 20~70; With multiple protection functions When the voltage 0.8V, there will be under-voltage protection (LVP); when the input current2A, there will be overcurrent protection (OCP); When using over power, there will be over-power protection (OPP). After protection, the output will be automatically turned off, the LCD backlight will flash, and the corresponding protection will be displayed(LVP, OCP, OPP); Small size, easy to carrysmall size 78*28*17mm with Anti-extrusion packaging box.
Note: It is a low power supply, please do not exceed the maximum output power.;
Multimeter System (VAH): The CNC USB power supply regulator module can measure voltage and current, test power, capacity, and time just like a multimeter. It can also test the current ambient temperature. Temperature range 20~70; With multiple protection functions When the voltage 0.8V, there will be under-voltage protection (LVP); when the input current2A, there will be overcurrent protection (OCP); When using over power, there will be over-power protection (OPP). After protection, the output will be automatically turned off, the LCD backlight will flash, and the corresponding protection will be displayed(LVP, OCP, OPP); Small size, easy to carrysmall size 78*28*17mm with Anti-extrusion packaging box.
