Connector 1: CPU 8 Pin Male (plug into the power connector of power supply);

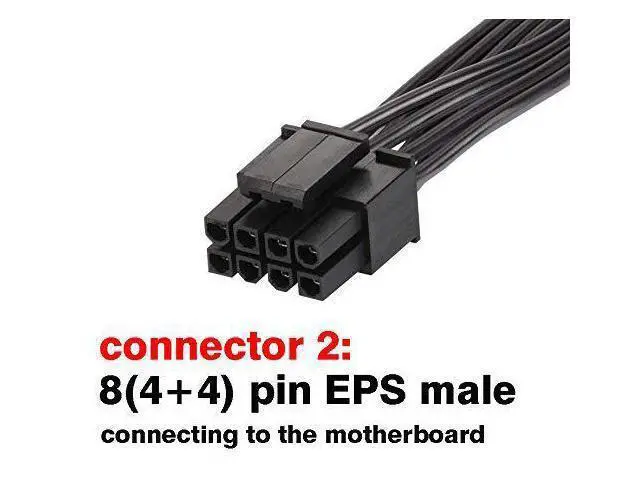

Connector 2: CPU 8 pin (4+4) male EPS 12V (plug into the Motherboard) -Please Note that the two connectors cannot be used alternately;;
NOTE: Compatible ONLY!!! with motherboard with ATX 4 pin or 8 pin port CPU 8(4+4) pin end could be used as EPS ATX 8 pin or ATX 4 pin; Compatible with ONLY C. orsair modular power supply such as: HX750/HX1200/TX850M/TX750M/TX650M/CX750M/CX650M/CX550M/AX760I/AX860I/AX1500I/AX760/AX850/AX860/HX1200I/HX1000I/HX850I/HX750I/RM1000I/RM850I/RM750I/RM650I/RM1000X/RM850X/RM750X/RM650X/RM550X/RM1000/RM850/RM750/RM650/RM550/RM450/SF600/SF450;
NOTE: Do not work with AX1200!!! Do not work with EVGA PSUs!!!;
Length including connectors: 32 inches, ribbon cable black, Gauge: standard 18 AWG - UL1007;
NOTE: Do not work with GPU!
