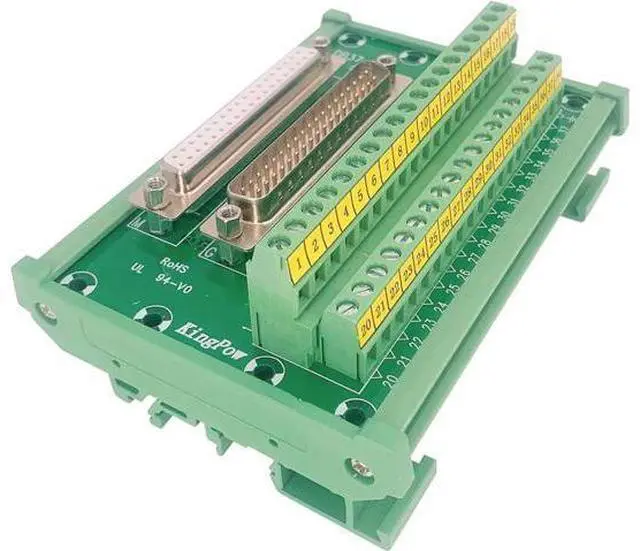

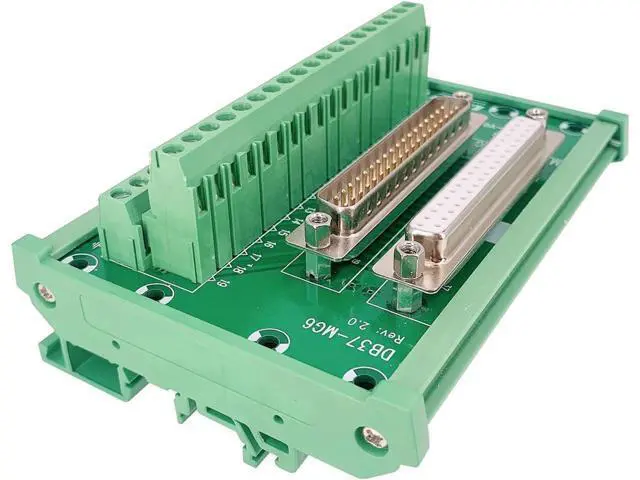

BONAEVER DB37 Male/Female D-SUB Din Rail Mount Interface Module RS232 D-SUB Serial to 37-pin Port Terminal D-sub Terminal Block Breakout Board

Features: Male and Female RS232 DB37 connectors, Screw terminal block. This allowed customer to build an adapter to allow switching between devices without changing the field wiring cable. FR-4 fiber glass PCB, dual copper layers.

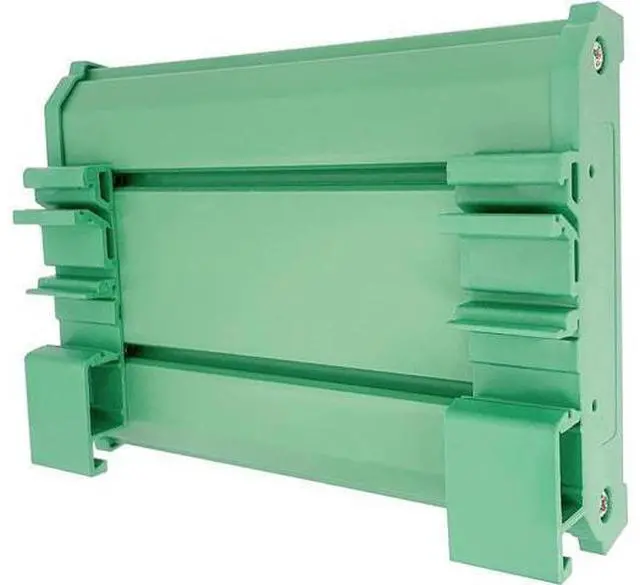

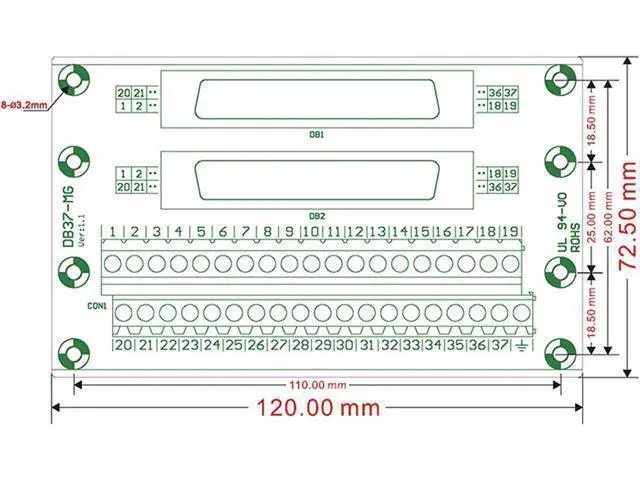

PCB dimensions: 72 x 116mm (W x L). Din rail mountable - for DIN C45 width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.
Terminal block: Pitch 5.08 mm/ 0.2" miniaturization screw terminal block.
Wire range: 28-12AWG.

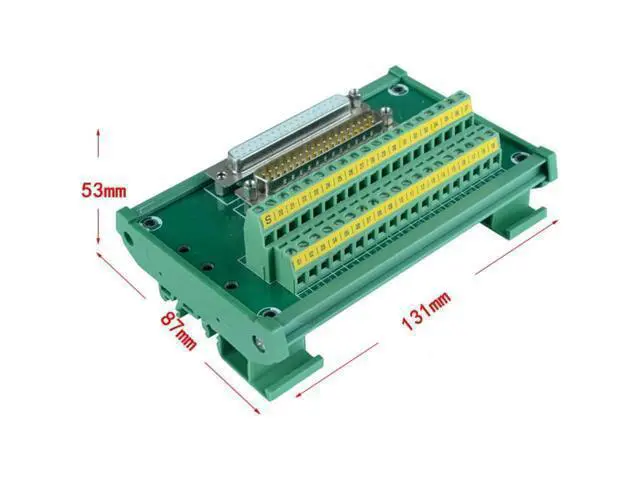

External dimensions: 85 x 120mm (W x L ).
Terminal Block

Specifications

:
Pitch: 5.08 mm
Supply Voltage: 60V
Rated current: 1A
Wire range: 28-12AWG
Screws: M2, steel, Cr3+ Zn plated
Torque: 0.2N m ( 1.7L b-In. ) Pin header and
Cage: Brass 5.08 mm

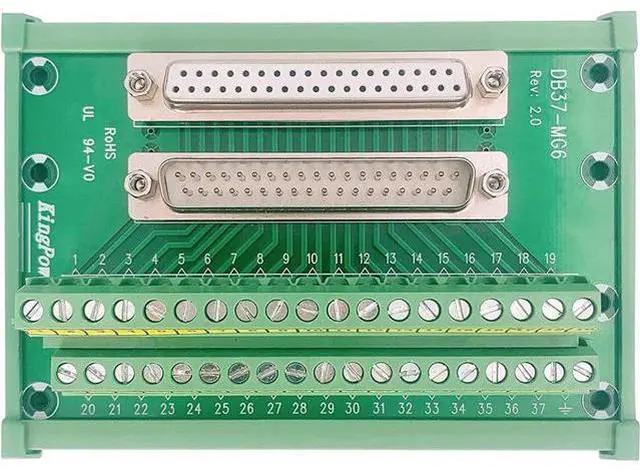

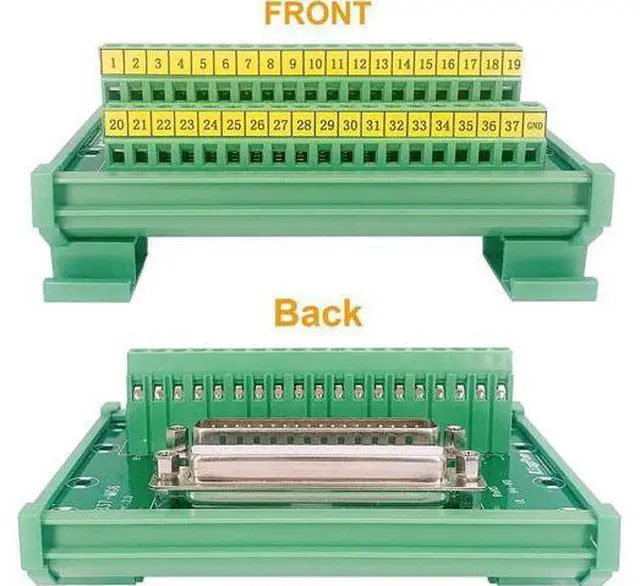

Screw Terminal Block Terminal block: Pitch 5.08 mm; Wire range - 28-12AWG Clear Labeled Signal line all the leads, number clearly marked DIN Rail Mount DB37 Interface Module Male and Female RS232 DB37 connectors, Screw terminal block
