SMSL G1 External Master Clock 105 DBC/Hz High Precision OCXO Quad Channel Clock Accuracy ±3 ppb 10MHz for for SMSL PL200T/VMV T2/D2R/D200

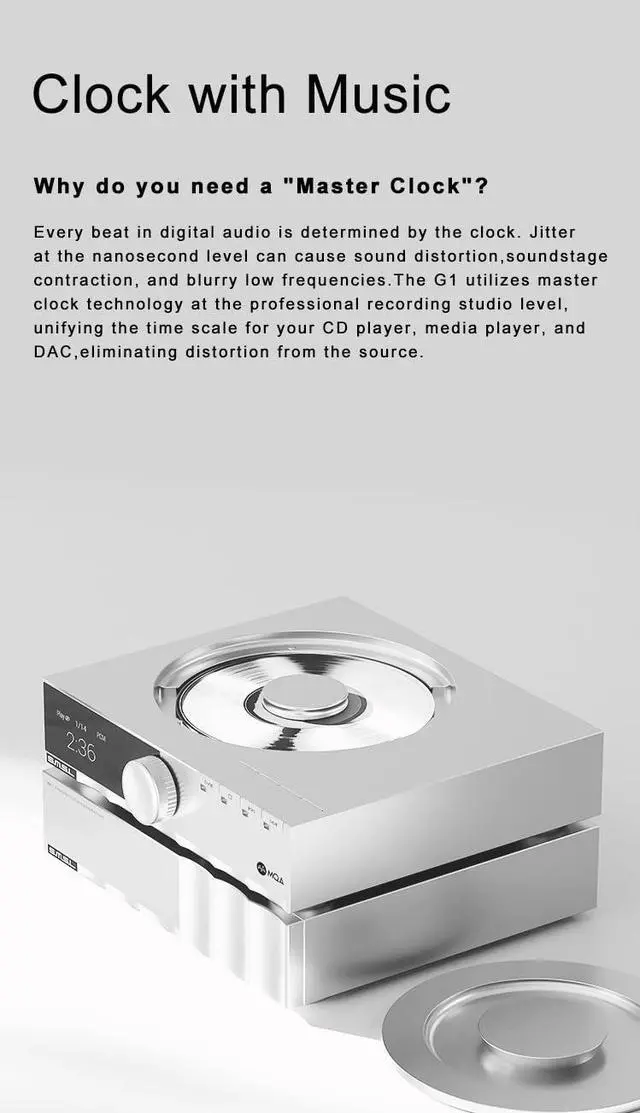

- The SMSL G1's digital audio is clocked for every beat. Nanosecond jitter can cause distortion, narrowing of the soundstage, and smearing of low frequencies. The G1 utilizes professional studio-grade master clock technology to unify the time scale for your CD player, player, and decoder, eliminating distortion at the source.; The G1 uses an SC-Cut OCXO. lts phase noise is a full -35 to -50 dBc lower than femtosecond clocks, with 1 Hz phase noise at only-105 dBc/Hz. The clock accuracy is better than +3 ppb; it would take 10 years of operation to deviate by just one second!; To allow the OCXO crystal oscillator to operate in an absolutely pure environment, we specially designed an "armor" for it -an independent constant-temperature shielded chamber. After over ten rounds of material and structural experiments, this finalized solution not only blocks external heat sources like a thermal insulation wall but also instantly equalizes internal micro-temperature differences, achieving a dual constant-temperature effect.; Quad-Channel Clock,born from the same source, yet independently empowering.Each channel is equipped with an independent buffer circuit, not only maintaining stable output impedance but also handling complex loads with strong drive capability.Whether for precise singlechannel output or multi-channel parallel synchronization, it achieves signallosslessness and consistent timing.; Holding the universe within a precise core, seeing the world within a square inch. The ext
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications

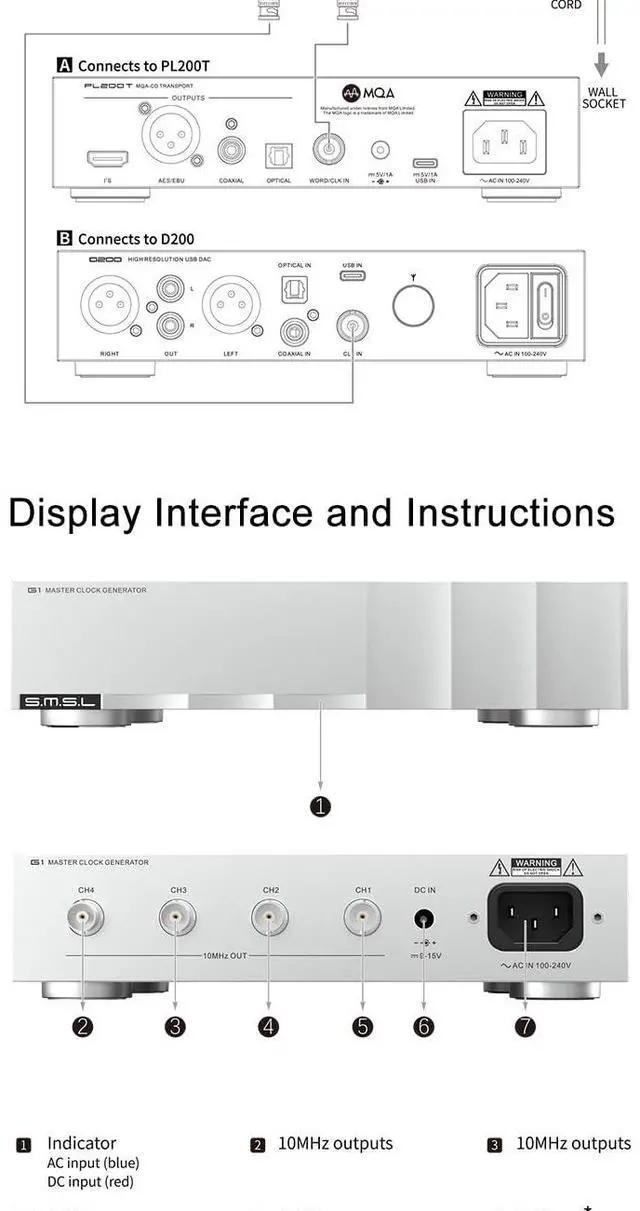

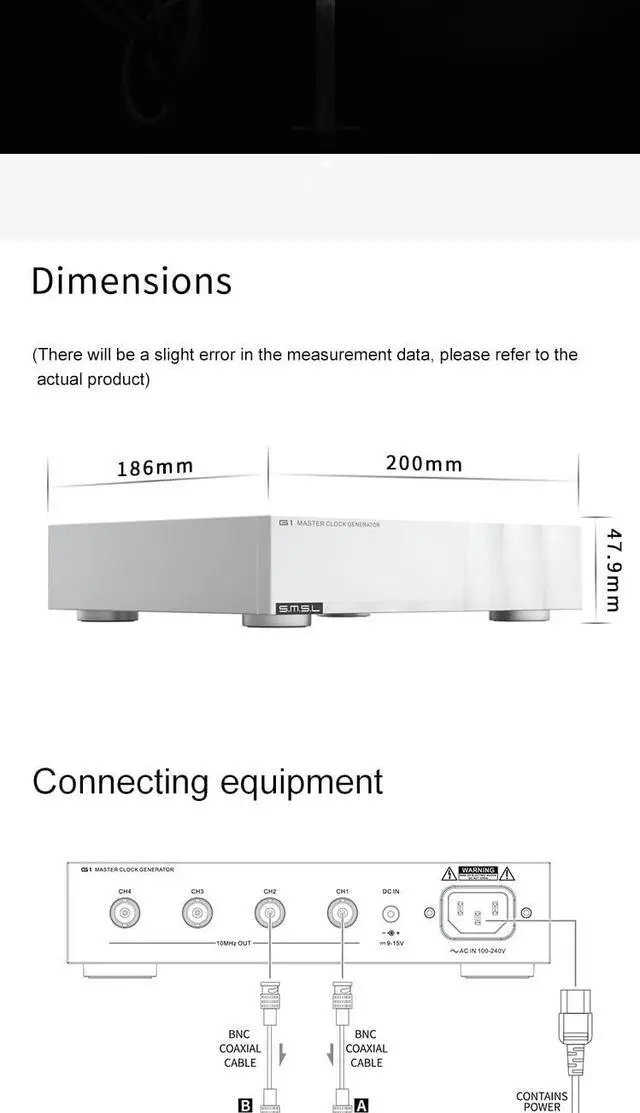

Clock outputs BNC Connector 4 Output Sample Rate10MHz Output impedance50/75 Output LevelSquare wave 3.3V p-p Power Supply AC 100V~240V, 50/60HZ DC9V-15V, 1A Power Consumption 12W (During Heating) 3W (Normal Use) OCXO Clock stabilization time About 2 minutes (Oscillator StabilizationTime After Power-On) Even after 2 minutes, the oscillator further improves its stability as the temperature inside the oven changes. Therefore, we recommend a warm-up time of approximately 10 minutes prior to actual use. Frequency-Temperature CharacteristicWithin ±3 ppb Frequency accuracy±3 ppb Operating Temperature+5°C to +35°C Operating Humidity Range5% to 85%( (non-condensing) Storage Temperature Range-20°C to +55°C Dimensions200x 47.9 x186mm (WxHxD) Weight 1.618 kg/ 3.57 lbsWarranty & Returns
