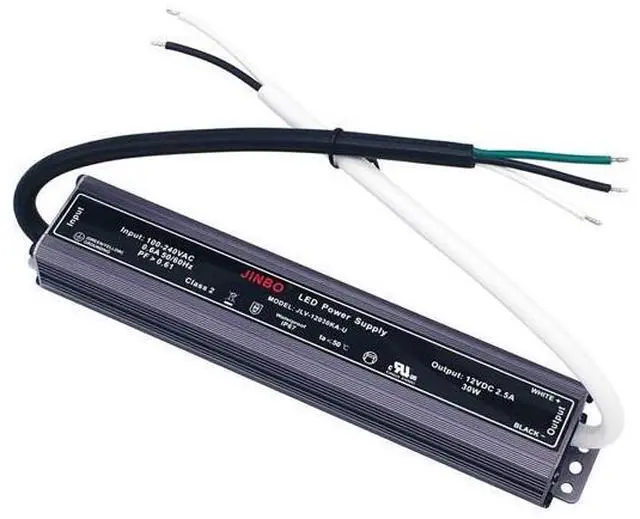

JINBO 12V DC Power Supply 30W, 100V-240V AC to 12V DC LED Low Voltage Transformer,IP 67 Waterproof Converter Constant Voltage LED Driver for Lightings (30 Watts)
Limited time offer, ends 05/30 By QURO
- Input: 100V-240V AC ; Output: 12V DC ( NOT AC !!! ) 2.5 Amps 30 Watts Max; High Quality Version-- Standard :UL8750 / UL879(SAM) / UL1310; Stable Constant Voltage Output, Sturdy Construction, Full Aluminum Housing(with Solid Mounting Holes), No Humming; IP 67 Waterproof, Both for Indoor and Outdoor Use; Overload / Short Circuit Protection, High Transfer Efficiency, 100% Full Loading, 100% Burn-in Tested, Suitable for all Wattages less than Rated Power
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

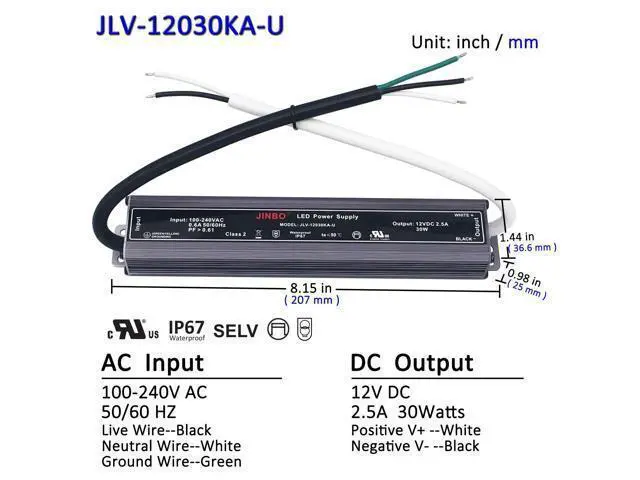

Model: JLV-12030KA-U
Input: 100~240V
AC Output: 12V DC 2.5 Amps 30
Watts Product Dimension: 8.15 in* 1.44 in* 0.98 in / 207 mm* 36.6 mm*25 mm
Net Weight: 0.7 LB / 320G
Wire Input: 18AWG*3C, Black L, White N, Green G, 7.87 in / 200 mm length
Wire Output: 18AWG*2C White +, Black -, 7.87 in / 200 mm length
Housing: Aluminum Product Features - (US
& Canada) Standard: UL8750 / UL879 (SAM) / UL1310 - High transfer efficiency - Stable constant voltage output - IP67, both indoor & outdoor use suitable - 100% full loading, 100% burn-in tested - Overload/short circuit protection

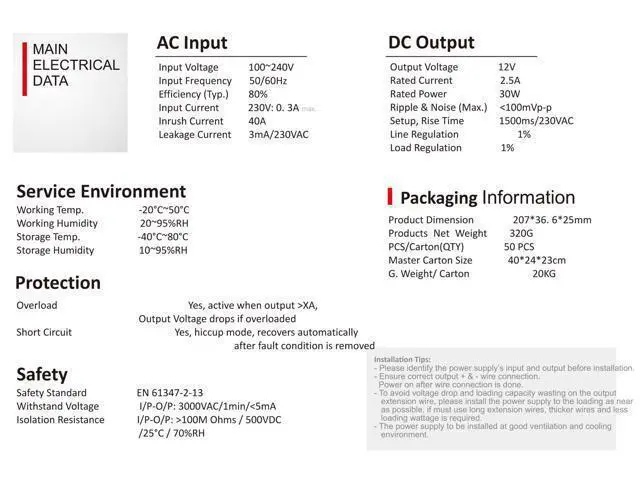

AC Input Input Voltage: 100~240V AC
Input Frequency: 50/60Hz Efficiency (Typ. ): 80%
Input Current:
230V: 0.3A max.
Inrush Current: 40A
Leakage Current: 3mA/230VAC DC
Output Output Voltage: 12V DC
Rated Current: 2.5A
Rated Power: 30W Ripple & Noise (Max. ): <100mVp-p Setup,
Rise Time: 1500ms/230VAC
Input: 100~240V
AC Output: 12V DC 2.5 Amps 30
Watts Product Dimension: 8.15 in* 1.44 in* 0.98 in / 207 mm* 36.6 mm*25 mm
Net Weight: 0.7 LB / 320G
Wire Input: 18AWG*3C, Black L, White N, Green G, 7.87 in / 200 mm length
Wire Output: 18AWG*2C White +, Black -, 7.87 in / 200 mm length
Housing: Aluminum Product Features - (US
& Canada) Standard: UL8750 / UL879 (SAM) / UL1310 - High transfer efficiency - Stable constant voltage output - IP67, both indoor & outdoor use suitable - 100% full loading, 100% burn-in tested - Overload/short circuit protection
AC Input Input Voltage: 100~240V AC
Input Frequency: 50/60Hz Efficiency (Typ. ): 80%
Input Current:
230V: 0.3A max.
Inrush Current: 40A
Leakage Current: 3mA/230VAC DC
Output Output Voltage: 12V DC
Rated Current: 2.5A
Rated Power: 30W Ripple & Noise (Max. ): <100mVp-p Setup,
Rise Time: 1500ms/230VAC
