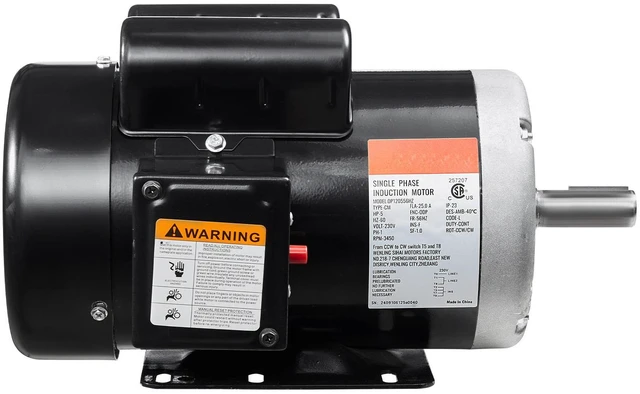

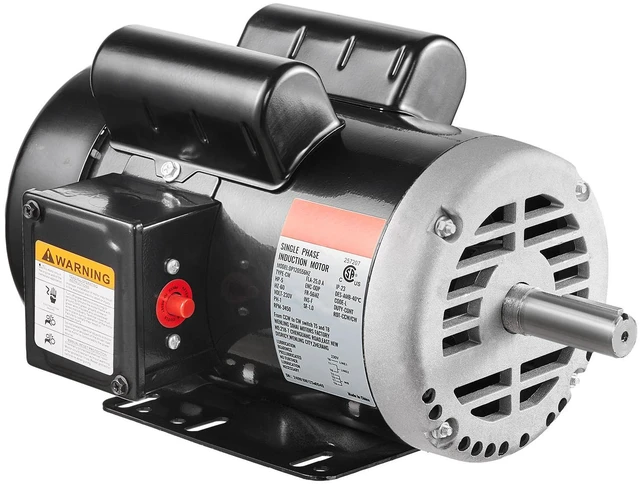

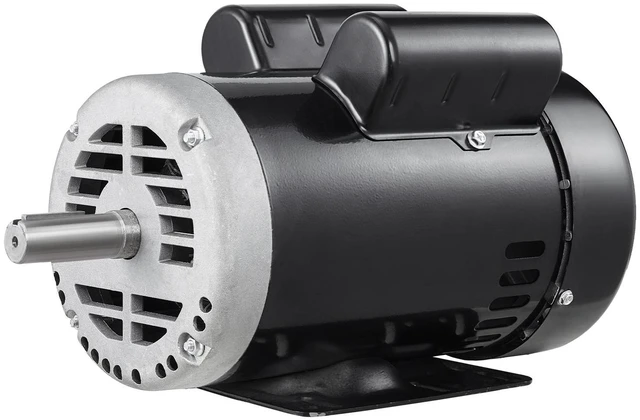

5HP Air Compressor Electric Motor 230V 25A 3450RPM 56Hz Frame CW/CCW Rotation (Factory Setting is CCW)
- 5HP Air Compressor Electric Motor 230V 25A 3450RPM 56Hz Frame CW/CCW Rotation (Factory Setting is CCW)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
High Performance: 5HP 3450 RPM, Single Phase, Full
Load Amps: 25Amp, 230V 60Hz, SF: 1.0.

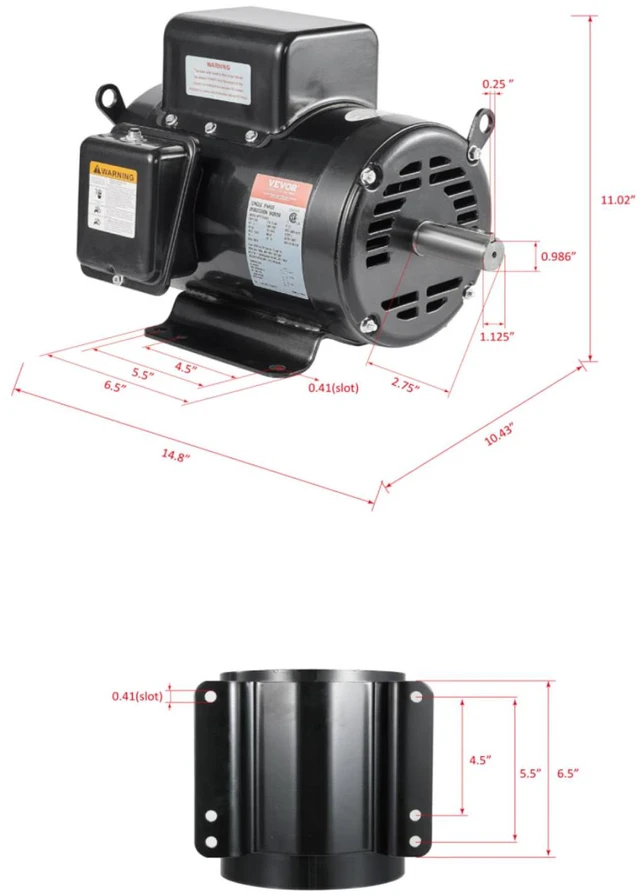

Frame Type: 56Hz Frame, 7/8" Keyed shaft, 2.25" Shaft length, 0.188" Keyway Size.
Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
Load Amps: 25Amp, 230V 60Hz, SF: 1.0.
Frame Type: 56Hz Frame, 7/8" Keyed shaft, 2.25" Shaft length, 0.188" Keyway Size.
Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
