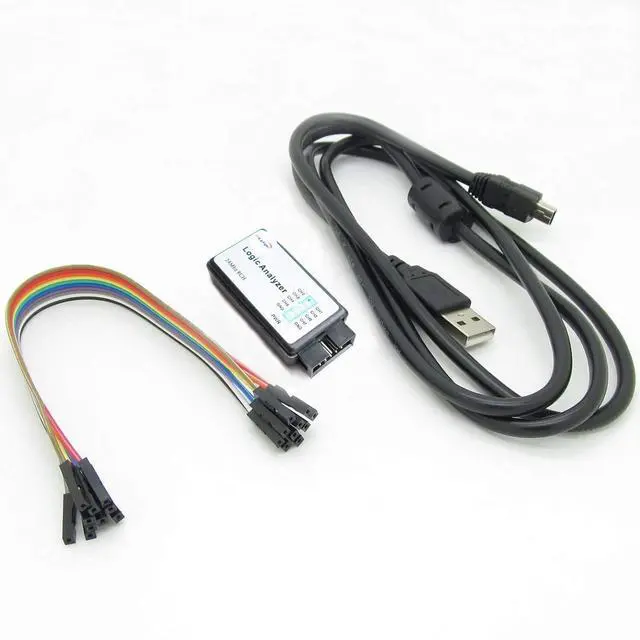

TERRA HAVEN USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug

The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions
8-channel
Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz
The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions
Input voltage range: -0.5V to 5.25V
Input Low Voltage: -0.5V to 0.8V
Input High Voltage: 2.0V to 5.25V
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystal: +/-20ppm, 24MHz

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions
8-channel
Sampling rate up to: 24 MHz, can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz
The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions
Input voltage range: - 0.5V to 5.25V
Input Low Voltage: - 0.5V to 0.8V
Input High Voltage: 2.0V to 5.25V
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystal: +/-20ppm, 24MHz
