Mini Led Remote Controller DC 5V-24V 14 keys RF Wireless Dimmer For LED Strip Lights Conn ection Black White

Type: Power
Cable Origin: Mainland
China Certification: NONE
Model: ys-rfm1

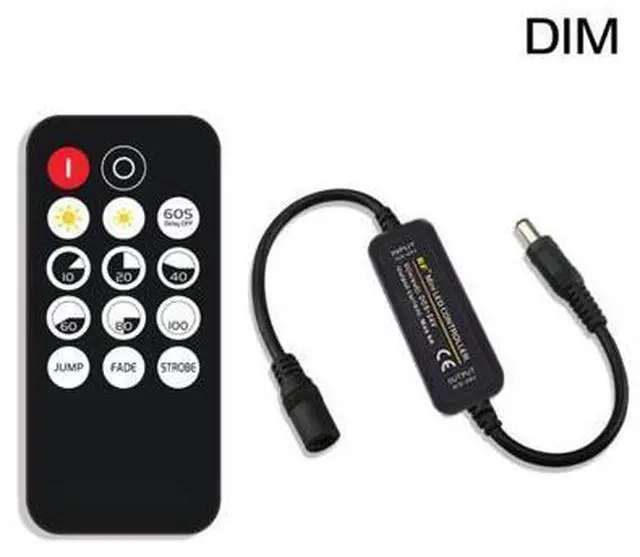

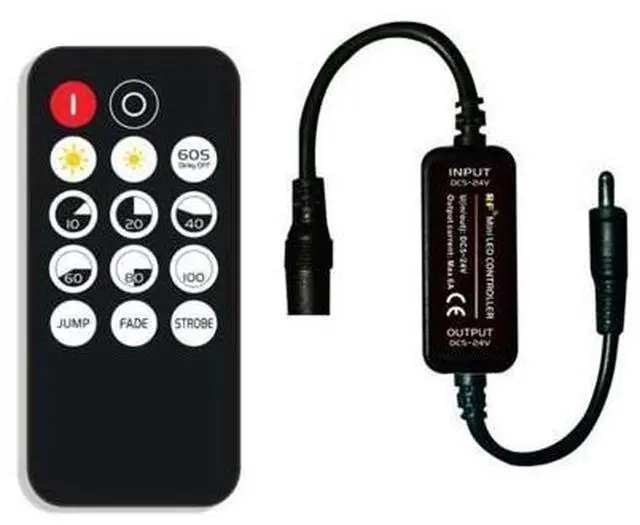

Name: Wireless Mini 14 key monochrome dimmer Product description The wireless RF Mini controller is an exquisite and compact LED controller. It can be used directly by inserting the power supply and light bar without any welding. It is very convenient and fast. There are four types of products in this series, which are used to control monochrome and color temperature. RGB, RGBW four types of light strips; Dynamic lighting effects such as gradient, jump, fade, flicker and burst can be selected according to different needs of customers, as well as a variety of static colors. It can be widely used in TV background wall, bedside table, bar and other places.
performance parameter Product Name: wireless
RF Mini controller product model: ys-m1
operating temperature: - 20 ~ 60 power supply voltage: dc5-24v
connection mode: common
Yang controller size: L55 × W22 ×
H13mm net weight: 14 / 17 / 21 keys: 30g
gross weight: 14 / 17 / 21 key: 32g
static power consumption: output
current: output
power:
maximum:
5V: Instructions
for remote control: Interface
Description: (1)
Power input interface: 5.5 * 2.1 mm DC female connector input is adopted (customized bold wire is adopted, which can withstand 6a, and ordinary connector can only withstand 3a) (2)
Load output interface:
Adopted: opposite female connector output (BOLD full copper core can be accessed at full load)
Monochrome: DC male ( 5.5 * 2.1 mm)
Color temperature: 4Pin female head
RGB: 4Pin female head
RGBW: 5pin female head
Wiring instructions:
1. Connect the load light bar first, and ensure that there is no short circuit before power on;
2. After confirming that there is no short circuit, connect 5-24v power supply, and do not connect high-voltage power (refer to the following wiring diagram); Controller static and dynamic mode list: Serial
number: 1-Gradual change, 2-Jump, 3-Stroboscopic
matters needing attention: (for indoor use only and applicable to lighting equipment)
1. The input voltage of the controller is dc5-24v, which needs to be used with the power adapter. Do not input directly at high voltage or other voltages. Please pay attention to safety when connecting.
2. Please connect the power supply, controller and lamp in the power-off state, and then power on after connecting. Please do not connect the positive and negative poles of input and output reversely.
3. Please do not overload the equipment. The maximum output current of the equipment is 6a, otherwise the equipment will be damaged or the service life will be affected; Before using the remote control, please pull out the flange blank under the remote control.
4. Please do not use in the environment with high dust and high temperature. If it is not used for a long time, please turn off the power.
5. Non professional engineers shall not disassemble, disassemble or replace parts by themselves to avoid equipment damage.
6. Please inform you of the required line sequence in advance before purchasing.
remarks: Default
shipping code:
1. If one-to-one code matching is required, the controller will be powered off and re powered on. Long press the start button, and the light will flash white. The code matching is successful.
2. If one to many pass codes are required, the controller will be powered off and re powered on. Long press the shutdown key, and the light will flash white. Code clearing is successful.
Invoice Description: the price of our shop does not include tax points. There are additional tax points for invoicing. Please consult customer service for details!
