Wsdcam TVI to HDMI Converter Full HD 4K Converter, 1080p/720p/4K/8MP/5MP/4MP/3MP, BNC to HDMI Video Converter Adapter - CVBS/TVI/CVI/AHD to HDMI
Limited time offer, ends 06/28 By KAIN Tech

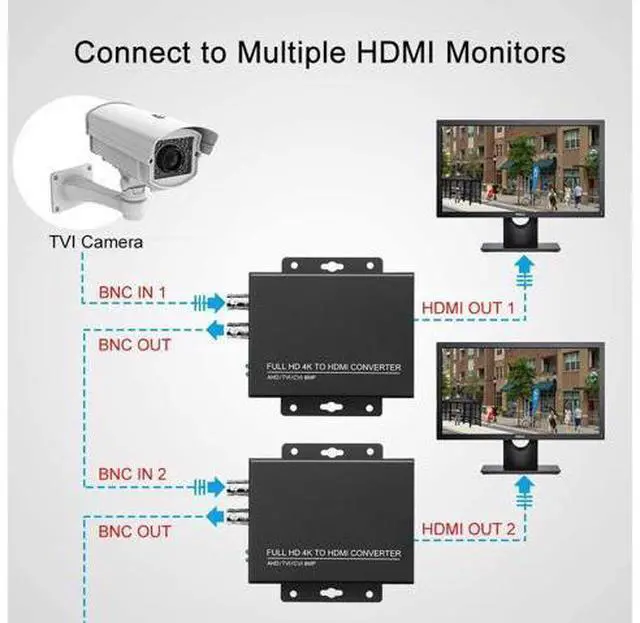

- TVI to HDMI video converter that is used to display live 1080p high definition video from TVI security cameras on a HDMI TV monitor for public view monitors or connect to DVR. In addition to TVI cameras, the converter also works with CVBS, AHD, CVI cameras; Works with all HD-TVI/AHD video resolutions: 720p, 1080p, 3 MP, 4 MP, 5 MP, and 8 MP(4K). Works with CVI video resolutions: 720p, 1080p, 4 MP, and 8 MP(4K). And there are LEDs that specify what resolution has been detected by the video input; The HDMI video output is 1080p resolution. There is 4K BNC Video Loop Out which allows you to send the native HD video signal (TVI, CVI, AHD, CVBS) to another device, such as a surveillance DVR, second converter, or camera tester. There is a 75O/ HI-Z switch. If you are using the BNC loop output, this switch should be set to HI-Z (If HDMI output, set it to 75O); Multiple TVI to HDMI converters can be used as a video splitter to connect one analog camera to multiple HDMI monitors. Easy to use, plug
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

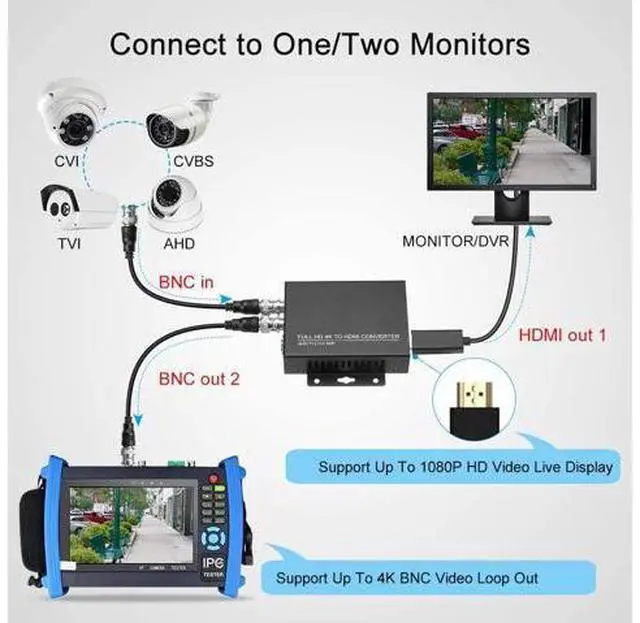

Wsdcam BNC to HDMI Converter BNC to HDMI Converter allows you to converts HD-TVI/CVI/AHD/CVBS signal to HDMI signal, it is typically used to connect a HD-TVI/CVI/AHD/CVBS security camera to an HDMI monitor to display a live high definition video feed. Build in high performance smart chip and with HD video processing technology, support up to 1080p HDMI output, provide bright vivid colors video images, real-time display, work with up to 700m coaxial cable, no loss in video quality or added compression.
Features: Converts HD-TVI/CVI/AHD/CVBS signals to HDMI Support 8MP AHD/TVI/CVI test Auto Recognition Resolution, indicator visual display 1080p HDMI out for monitor/TV or HDMI device 4k AHD/TVI/CVI/CVBS Loop out for DVR or BNC device Transmits up to 700 meters over coaxial cable( Different resolution, different transmission distance) Plug & Play, no driver requirements High Compatibility Pocket-sized converter features a sturdy metal housing
Product Parameters: HDMI
Output Resolution: 1080p 60Hz, HD-LINK light
Operating Temperature: -10°C~60°C / -14°F~140°F

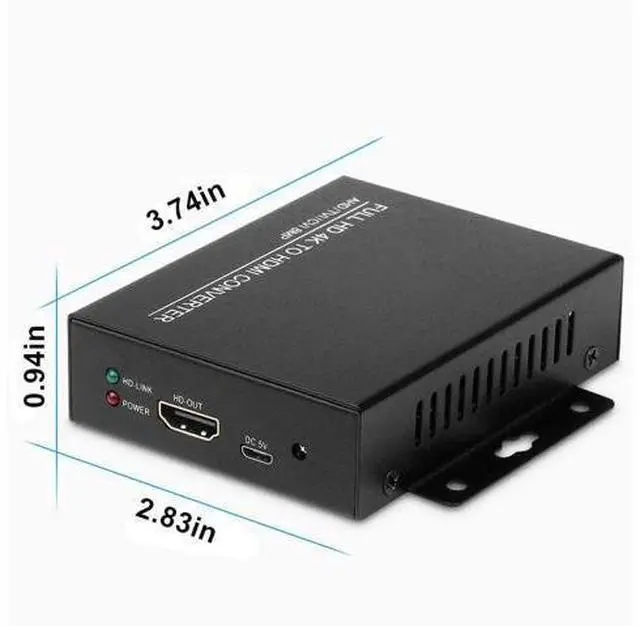

Dimensions: 3.74 (L) x 2.83 (W) x 0.94 (H) inch Supported HD-TVI Camera Resolutions &
Frame Rates: 720p @ 25/30/50/60 FPS 1080p @ 25/30 FPS 3 MP (2048 x 1536p) @ 18/25/30 FPS 4 MP (2688 x 1520p) @ 15 FP, 4 MP (2560 x 1440p) @ 12/25/30 FPS 5 MP (2592 x 1944p) @ 12.5 /20 FPS 4K (8 MP) (3840 x 2160p) @ 12.5 /15 FPS Supported CVI Camera Resolutions &
Frame Rates: 720p @ 25/30/50/60 FPS 1080p @ 25/30 FPS 4 MP (2560 x 1440p) @ 25/30 FPS 4K (8 MP) (3840 x 2160p) @ 12.5 /15 FPS Supported AHD Camera Resolutions &

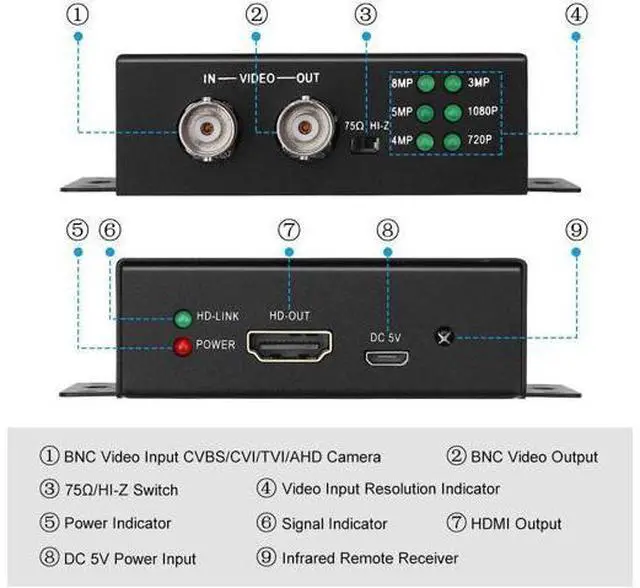

Frame Rates: 720p @ 25/30 FPS 1080p @ 25/30 FPS 3 MP (2048 x 1536p) @ 18/25/30 FPS 4 MP (2560 x 1440p) @ 12/25/30 FPS 5 MP (2592 x 1944p) @ 12.5 /20 FPS 4K (8 MP) (3840 x 2160p) @ 15 FPS Sturdy Metal Housing The pocket-sized converter features a sturdy metal housing, with heat dissipation holes and mounting holes on both sides, easy to dissipate heat and allow you to mount it nearly anywhere. HDMI Port & Power Port This converter with power and signal LED status indicators. With HDMI output port and DV 5V micro-USB port. Can be easily connected to and powered by laptops, projectors or power bank. 75 Omega/ HI-Z Switch There is a 75 Omega/ HI-Z switch. If you are using the BNC loop output (optional), this switch should be set to HI-Z. If you are only using the HDMI output (without the BNC loop), this should be set to the 75 Omega setting. Wsdcam BNC to HDMI Converter BNC to HDMI Converter allows you to converts HD-TVI/CVI/AHD/CVBS signal to HDMI signal, it is typically used to connect a HD-TVI/CVI/AHD/CVBS security camera to an HDMI monitor to display a live high definition video feed.
Build in high performance smart chip and with HD video processing technology, support up to 1080p HDMI output, provide bright vivid colors video images, real-time display, work with up to 700m coaxial cable, no loss in video quality or added compression.
Features: Converts HD-TVI/CVI/AHD/CVBS signals to HDMI Support 8MP AHD/TVI/CVI test Auto Recognition Resolution, indicator visual display 1080p HDMI out for monitor/TV or HDMI device 4k AHD/TVI/CVI/CVBS Loop out for DVR or BNC device Transmits up to 700 meters over coaxial cable( Different resolution, different transmission distance) Plug & Play, no driver requirements High Compatibility Pocket-sized converter features a sturdy metal housing
Product Parameters: HDMI
Output Resolution: 1080p 60Hz, HD-LINK light
Operating Temperature: -10°C~60°C / -14°F~140°F
Dimensions: 3.74 (L) x 2.83 (W) x 0.94 (H) inch
Features: Converts HD-TVI/CVI/AHD/CVBS signals to HDMI Support 8MP AHD/TVI/CVI test Auto Recognition Resolution, indicator visual display 1080p HDMI out for monitor/TV or HDMI device 4k AHD/TVI/CVI/CVBS Loop out for DVR or BNC device Transmits up to 700 meters over coaxial cable( Different resolution, different transmission distance) Plug & Play, no driver requirements High Compatibility Pocket-sized converter features a sturdy metal housing
Product Parameters: HDMI
Output Resolution: 1080p 60Hz, HD-LINK light
Operating Temperature: -10°C~60°C / -14°F~140°F
Dimensions: 3.74 (L) x 2.83 (W) x 0.94 (H) inch Supported HD-TVI Camera Resolutions &
Frame Rates: 720p @ 25/30/50/60 FPS 1080p @ 25/30 FPS 3 MP (2048 x 1536p) @ 18/25/30 FPS 4 MP (2688 x 1520p) @ 15 FP, 4 MP (2560 x 1440p) @ 12/25/30 FPS 5 MP (2592 x 1944p) @ 12.5 /20 FPS 4K (8 MP) (3840 x 2160p) @ 12.5 /15 FPS Supported CVI Camera Resolutions &
Frame Rates: 720p @ 25/30/50/60 FPS 1080p @ 25/30 FPS 4 MP (2560 x 1440p) @ 25/30 FPS 4K (8 MP) (3840 x 2160p) @ 12.5 /15 FPS Supported AHD Camera Resolutions &
Frame Rates: 720p @ 25/30 FPS 1080p @ 25/30 FPS 3 MP (2048 x 1536p) @ 18/25/30 FPS 4 MP (2560 x 1440p) @ 12/25/30 FPS 5 MP (2592 x 1944p) @ 12.5 /20 FPS 4K (8 MP) (3840 x 2160p) @ 15 FPS Sturdy Metal Housing The pocket-sized converter features a sturdy metal housing, with heat dissipation holes and mounting holes on both sides, easy to dissipate heat and allow you to mount it nearly anywhere. HDMI Port & Power Port This converter with power and signal LED status indicators. With HDMI output port and DV 5V micro-USB port. Can be easily connected to and powered by laptops, projectors or power bank. 75 Omega/ HI-Z Switch There is a 75 Omega/ HI-Z switch. If you are using the BNC loop output (optional), this switch should be set to HI-Z. If you are only using the HDMI output (without the BNC loop), this should be set to the 75 Omega setting. Wsdcam BNC to HDMI Converter BNC to HDMI Converter allows you to converts HD-TVI/CVI/AHD/CVBS signal to HDMI signal, it is typically used to connect a HD-TVI/CVI/AHD/CVBS security camera to an HDMI monitor to display a live high definition video feed.
Build in high performance smart chip and with HD video processing technology, support up to 1080p HDMI output, provide bright vivid colors video images, real-time display, work with up to 700m coaxial cable, no loss in video quality or added compression.
Features: Converts HD-TVI/CVI/AHD/CVBS signals to HDMI Support 8MP AHD/TVI/CVI test Auto Recognition Resolution, indicator visual display 1080p HDMI out for monitor/TV or HDMI device 4k AHD/TVI/CVI/CVBS Loop out for DVR or BNC device Transmits up to 700 meters over coaxial cable( Different resolution, different transmission distance) Plug & Play, no driver requirements High Compatibility Pocket-sized converter features a sturdy metal housing
Product Parameters: HDMI
Output Resolution: 1080p 60Hz, HD-LINK light
Operating Temperature: -10°C~60°C / -14°F~140°F
Dimensions: 3.74 (L) x 2.83 (W) x 0.94 (H) inch
