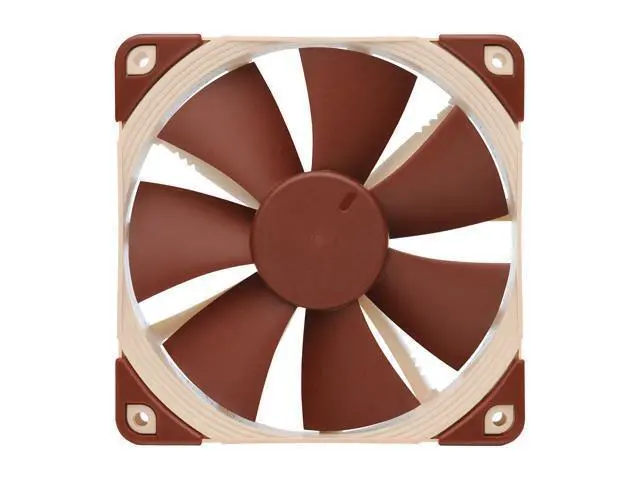

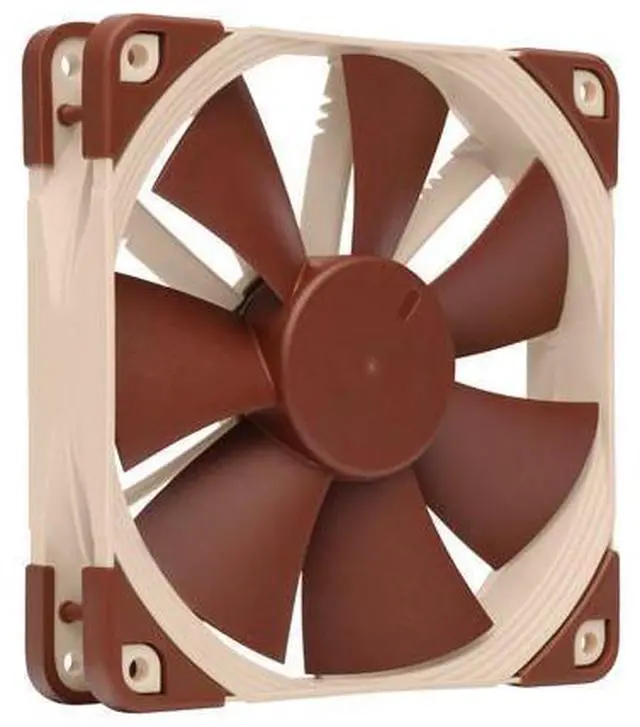

Noctua NF-F12 PWM, Premium Quiet Fan, 4-Pin (120mm, Brown)

Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12's Focused Flow system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua's new, custom designed PWM IC for fully automatic control assures astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua's trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.

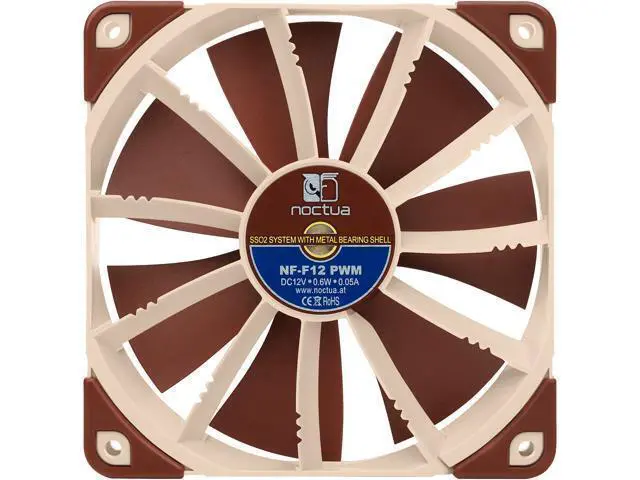

Focused Flow frame Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds. Custom designed for the new Focused Flow frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf impeller has been carefully optimised to achieve a perfect balance between power and quietness. The NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing.

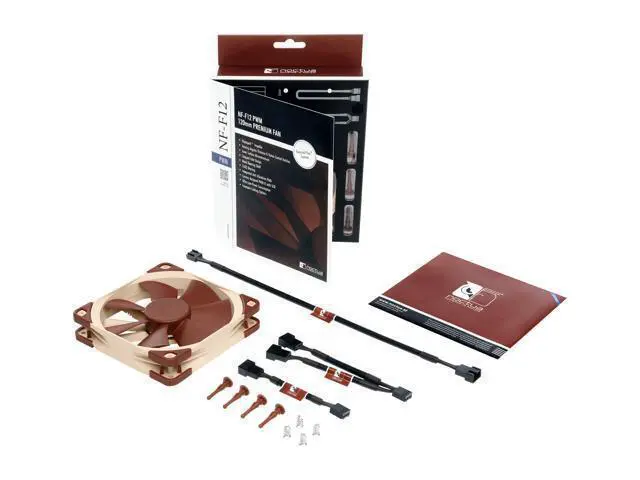

With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear. NA-RC6 Low-Noise Adaptor (L. N. A) NA-YC1 4-pin PWM y-cable NA-EC1 30cm extension cable 4x NA-AV1 anti-vibration mounts Fan screws Integrated anti-vibration pads Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

Products NF-F12 PWM NF-F12 5V PWM NF-F12 5V NF-F12 PWM chromax. black. swap Connector 4-pin PWM 4-pin PWM 3-pin 4-pin PWM Voltage 12V 5V 5V 12V
RPM Max: 1500 /
Min: 300
Max: 1500 /
Min: 300 1500
Max: 1500 /
Min: 300 RPM with L. N. A. 1200 - - - Acoustical Noise 22, 4 dB (A) 22, 4 dB (A) 22, 4 dB (A) 22, 4 dB (A) Acoustical Noise with L. N. A. 18, 6 dB (A) - - - Size (mm) 120x120x25 120x120x25 120x120x25 120x120x25 Colour Brown & Beige Brown & Beige Brown & Beige Black with swappable coloured anti-vibration pads Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12s Focused Flow system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctuas new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctuas trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.
