Noctua NH-L9a-AM5 chromax.black, Premium Low-profile CPU Cooler for AMD AM5 (Black)
- "Proven premium heatsink (more than 100 awards and recommendations from international hardware websites), now available in an all-black design that goes great with many colour schemes; Only 37mm height allows it to fit compact HTPC and Small Form Factor (SFF) cases, tailored footprint guarantees 100% RAM and PCIe compatibility on all ITX, Micro-ATX and ATX AM5 motherboards; Renowned, award-winning NF-A9x14 slim 92mm fan with Low-Noise Adaptor and PWM for automatic speed control: full cooling performance under load, whisper quiet at idle!; Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system for easy installation on AMD AM5 (LGA1718) processors; Renowned Noctua quality backed up by 6-year manufacturers warranty, deluxe choice for AMD Ryzen processors with moderate heat load (e.g. 7900, 7700, 7600, see compatibility list)"
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The NH-L9a-AM5 chromax. black is an all-black version of Noctua's award-winning NH-L9a-AM5 low-profile quiet CPU cooler for AMD AM5 based HTP
Cs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9a-AM5's successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax. black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 low-profile mounting system for AMD AM5 and Noctua's enthusiast-grade NT-H1 thermal compound, the NH-L9a-AM5 chromax.

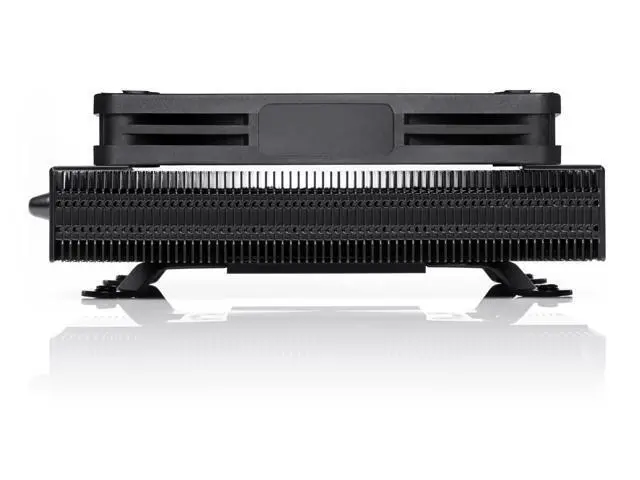

black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools. 37mm low profile Due to the slim 23mm heatsink and the NF-A9x14 low-profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTP
Cs or Small Form Factor cases that offer minimum clearance for CPU coolers. 100% RAM compatibility The NH-L9a-AM5 has a compact footprint that fully complies with the socket keep-out zones specified by AMD. This means that neither the heatsink nor the fan overhang the RAM, so the cooler provides easy access to the slots and is fully compatible with tall memory modules. 100% compatibility with PCIe cards Some AMD-based mini-ITX motherboards have the PCIe slot located close to the CPU socket zone. While larger coolers that exceed this zone may block the PCIe slot, the compact-sized NH-L9a-AM5 provides full compatibility with PCIe cards.
New revision for AMD's AM5 (LGA1718) socket Since the original NH-L9a coolers for AM3 and AM4 have received more than 100 awards and recommendations from international hardware websites and magazines, the new AM5 revision builds on the same proven heatsink design to provide excellent low-profile cooling performance for AMD's latest Ryzen processors.
Cooler
Height (without fan): 23 mm
Width (without fan): 114 mm
Depth (without fan): 92 mm
Height (with fan): 37 mm
Width (with fan): 114 mm
Depth (with fan): 92 mm
Weight (without fan): 390 g
Weight (with fan): 465 g Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating chromax. black design The NH-L9a-AM5 chromax. black is black from head to toe: Featuring a black coated heatsink, a black fan with black anti-vibration pads, black fan screws and black mounting parts, it's right at home in all-black builds and easy to integrate with other colour schemes. Products NH-L9i NH-L9a-AM4 NH-L9a-AM5 NH-L9i chromax. black NH-L9a-AM4 chromax. black NH-L9a-AM5 chromax. black LGA2066, LGA2011-0 & LGA2011-3 - - - - - - LGA1700 - - - - - - LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) - - - - LGA775 & LGA1366 - - - - - - Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356 - - - - - - Xeon LGA3647 - - - - - - Xeon LGA4189 - - - - - - AM4 with NM-AM4-L9aL9i with NM-AM4-L9aL9i with NM-AM4-L9aL9i with NM-AM4-L9aL9i AM5 with NM-AM5-L9aL9i with NM-AM5-L9aL9i with NM-AM5-L9aL9i with NM-AM5-L9aL9i sTRx4, sWRX8, TR4, SP3 - - - - - - The NH-L9a-AM5 chromax. black is an all-black version of Noctuas award-winning NH-L9a-AM5 low-profile quiet CPU cooler for AMD AM5-based HTP
Cs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9a-AM5s successful form
Cs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9a-AM5's successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax. black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 low-profile mounting system for AMD AM5 and Noctua's enthusiast-grade NT-H1 thermal compound, the NH-L9a-AM5 chromax.
black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools. 37mm low profile Due to the slim 23mm heatsink and the NF-A9x14 low-profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTP
Cs or Small Form Factor cases that offer minimum clearance for CPU coolers. 100% RAM compatibility The NH-L9a-AM5 has a compact footprint that fully complies with the socket keep-out zones specified by AMD. This means that neither the heatsink nor the fan overhang the RAM, so the cooler provides easy access to the slots and is fully compatible with tall memory modules. 100% compatibility with PCIe cards Some AMD-based mini-ITX motherboards have the PCIe slot located close to the CPU socket zone. While larger coolers that exceed this zone may block the PCIe slot, the compact-sized NH-L9a-AM5 provides full compatibility with PCIe cards.
New revision for AMD's AM5 (LGA1718) socket Since the original NH-L9a coolers for AM3 and AM4 have received more than 100 awards and recommendations from international hardware websites and magazines, the new AM5 revision builds on the same proven heatsink design to provide excellent low-profile cooling performance for AMD's latest Ryzen processors.
Cooler
Specifications

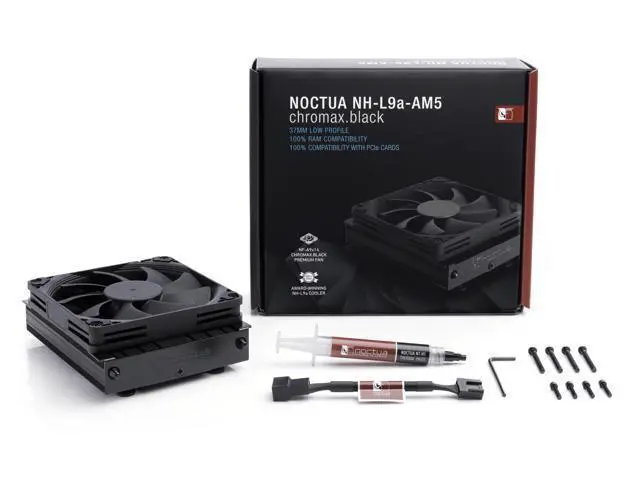

Please Note: The NH-L9a-AM5 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Scope of delivery NF-A9x14 HS-PWM chromax. black premium fan NA-RC7 Low-Noise Adaptor (L. N. A) NT-H1 high-grade thermal compound SecuFirm2 AM5 mounting kit Screws for 92x92x25mm fans Noctua metal case-badge MeasurementsHeight (without fan): 23 mm
Width (without fan): 114 mm
Depth (without fan): 92 mm
Height (with fan): 37 mm
Width (with fan): 114 mm
Depth (with fan): 92 mm
Weight (without fan): 390 g
Weight (with fan): 465 g Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating chromax. black design The NH-L9a-AM5 chromax. black is black from head to toe: Featuring a black coated heatsink, a black fan with black anti-vibration pads, black fan screws and black mounting parts, it's right at home in all-black builds and easy to integrate with other colour schemes. Products NH-L9i NH-L9a-AM4 NH-L9a-AM5 NH-L9i chromax. black NH-L9a-AM4 chromax. black NH-L9a-AM5 chromax. black LGA2066, LGA2011-0 & LGA2011-3 - - - - - - LGA1700 - - - - - - LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) - - - - LGA775 & LGA1366 - - - - - - Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356 - - - - - - Xeon LGA3647 - - - - - - Xeon LGA4189 - - - - - - AM4 with NM-AM4-L9aL9i with NM-AM4-L9aL9i with NM-AM4-L9aL9i with NM-AM4-L9aL9i AM5 with NM-AM5-L9aL9i with NM-AM5-L9aL9i with NM-AM5-L9aL9i with NM-AM5-L9aL9i sTRx4, sWRX8, TR4, SP3 - - - - - - The NH-L9a-AM5 chromax. black is an all-black version of Noctuas award-winning NH-L9a-AM5 low-profile quiet CPU cooler for AMD AM5-based HTP
Cs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9a-AM5s successful form
