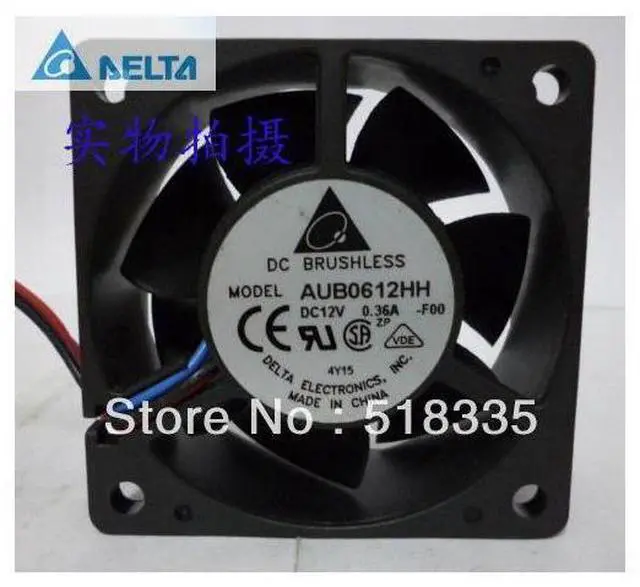

for delta 6025 12V 0.36A 3-wire AUB0612HH Server Inverter Cooling fan
- for delta 6025 12V 0.36A 3-wire AUB0612HH Server Inverter Cooling fan
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Certification: CE
Origin: CN (Origin)
Application: Computer
Case Package: Yes
Lines: showed as above pic
Type: Fan
Model Number: AUB0612HH
Brand: for delta;
Model: AUB0612HH
Dimensions: 60 × 60 × 25mm;
Voltage: DC12V;
Current: 0.36A;
Plug: about 30 cm motherboard 3-wire bare wire line support gun
Wind: 34.15CFM;
Power: 4.32W;
Speed: about 5000RPM;
Fan Frame: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
Blade: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
The fan counterclockwise rotation: from the direction of the blades;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: Hydraulic bearing;
Power range: plus or minus 15% of the rated power;
Insulation resistance: > 500 megohms;
Withstanding Voltage: Department of leakage current 0.5 mA 500V / 1 minute;
Working life: the ambient temperature of 25 degrees 80, 000 hours
Origin: CN (Origin)
Application: Computer
Case Package: Yes
Lines: showed as above pic
Type: Fan
Model Number: AUB0612HH
Brand: for delta;
Model: AUB0612HH
Dimensions: 60 × 60 × 25mm;
Voltage: DC12V;
Current: 0.36A;
Plug: about 30 cm motherboard 3-wire bare wire line support gun
Wind: 34.15CFM;
Power: 4.32W;
Speed: about 5000RPM;
Fan Frame: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
Blade: plastic injection molding, PBT +30% glass fiber + VO grade flame retardant;
The fan counterclockwise rotation: from the direction of the blades;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: Hydraulic bearing;
Power range: plus or minus 15% of the rated power;
Insulation resistance: > 500 megohms;
Withstanding Voltage: Department of leakage current 0.5 mA 500V / 1 minute;
Working life: the ambient temperature of 25 degrees 80, 000 hours
