HD 2.0 Audio Extractor Support 4K 60Hz YUV 4:4:4 and HDR HD to Optical SPDIF Analog RCA L/R 3.5mm Converter

Specifications

: Suppoort
HD HDCP Version: HDCP 2.2HD
Input/Output Resolution: Up to 4K/60fsSupport HD
Video Color Format: 2160P, 10/12 bits, 24/25/30Hz, 2160p, 10/12 bits, 50/60HzHD
Audio Format: DTS-HD/Dolby-TrueHD/LPCM 7.1 /DTS/olby-AC3/DSDSPDIF
Digital Audio Formate: Dolby DigitalAC3/DTS/LPCM Input
Output TMDS Signal: 0.5 ~ 1.5V p-p (TTL) Input
Output DDC Signal: 5Vp-p (TTL)
DAC sampling frequency: 32~192
KHzDAC bit rate: 16~24
BitRCA analog output (1KHz@0dB): 1V RMS Signal to noise ratio @0dB(CC1R/ARM):.
90dBDistortion degree: 0.1
%Frequency response: 20HZ~20KHzHD Input
Cable Distance: 3 m AWG26 HD Standard CableHD
Output Cable Distance: 3 m AWG26 HD Standard CableMax Working Current: 400mAPower
Adapter Format: DC 5V/1AOperating
Temperature Range: -10~+55Storage
Temperature Range: -20~+60Package

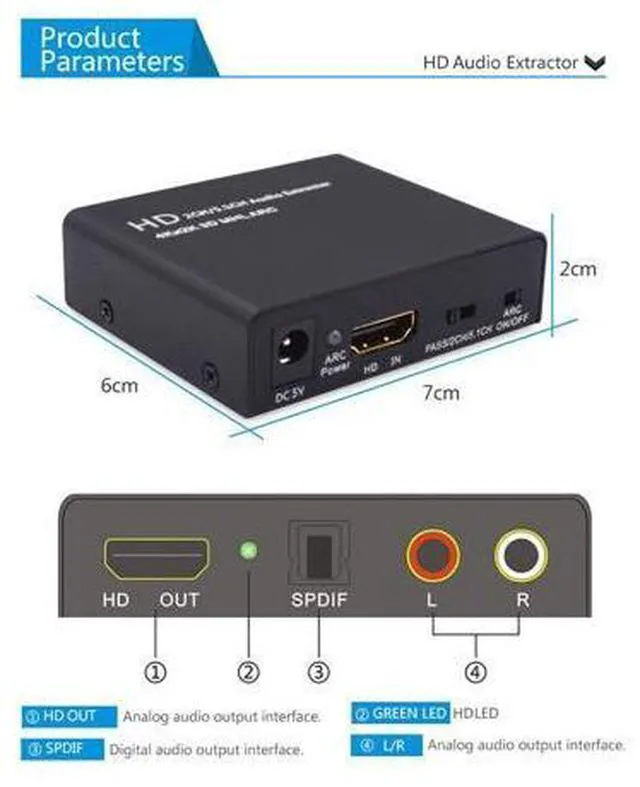

Size: 8.5 * 6.1 * 2cm / 3.3 * 2.4 * 0.8 inPackage
Weight: 124g / 4.4 oz
Features: Extracts HD audio to multi-channel optical (SPDIF) or L/R 3.5 mm headphone analog audio. The HD resolution supports up to 4K / 60fs, and supports 3D, HDR, and
YUV 4: 4: 4. SPDIF optical output supports AC3, DTS, LPCM and other digital audio formats, and supports 5.1CH. Audio output supports 3 EDID selection modes (2CH / 5.1CH / PASS). 24bit / 192KHz DAC chip is adopted to ensure high quality sound quality.
