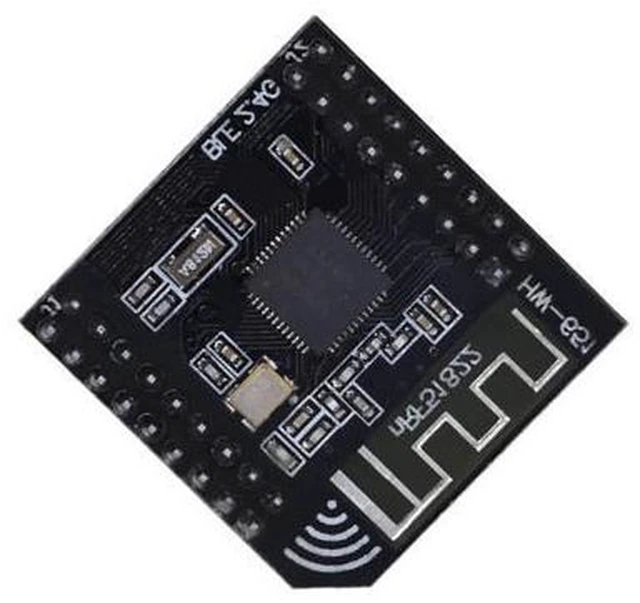

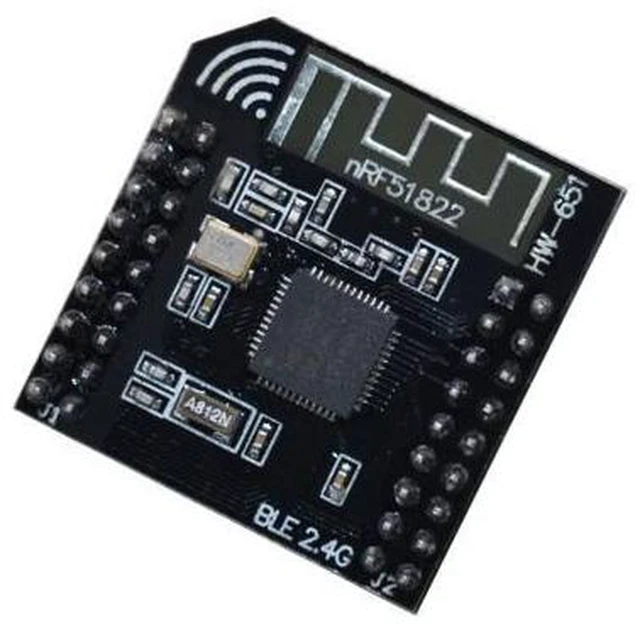

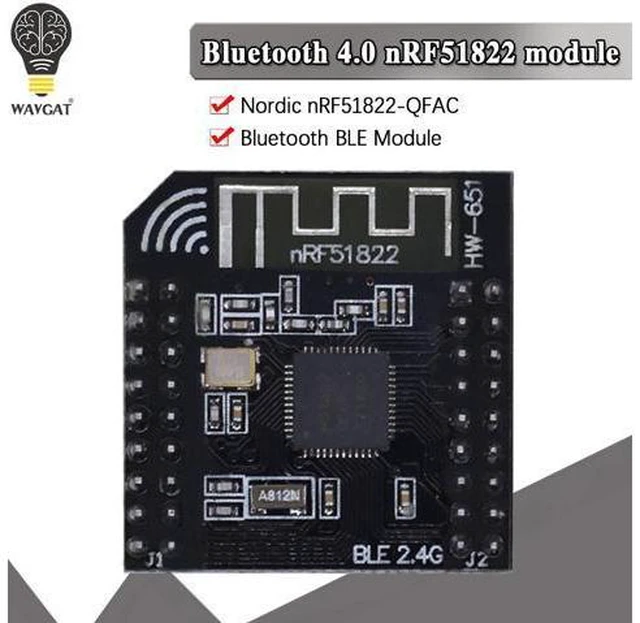

WAVGAT NRF51822 2.4G Wireless Module Wireless Communication Module Bluetooth module / zigbee module / DMX512

Origin: Mainland
China Condition:
Type: Bluetooth module
Model Number: NRF51822
Application: Bluetooth module
Operating Temperature: -40-+85
Supply Voltage: 2.0V ~ 3.6V
Dissipation Power: 2.0V ~ 3.6V
Package: module
is_customized: Yes 843 We are electronic module manufacturer, welcome to wholesale! I am a Bluetooth 4.0 module based on nRF51822, small size, stable and reliable, can be directly applied to the product.
My parameters Master chip: nRF51822
Communication distance: 30m
(condition: open area / 1M rate)
Working frequency band: 2.4GH z
Operating voltage: 2.0V ~ 3.6V
Temperature range: -40°C ~ 85°C
Size: 24.5 mm x 32.26 mm (PCB)
Interface: all I/O interfaces except P 0.26 and P 0.27
Needle spacing: 2.00 mm
Needle spacing on both sides: 18.00 mm
Antenna: Onboard Antenna My Applications Wearable device Bluetooth smart application Mobile phone peripherals RF Smart RF Tag Smart home appliances industrial control data collection system Introduction to nRF51822 The nRF51822 is a multi-protocol, single-chip solution for ultra-low power wireless applications (ULP wirelesss applications). It integrates Nordic's state-of-the-art wireless transmitters while supporting Bluetooth (R) low energy and a dedicated 2.4GH z protocol stack.
The basic situation is: 2.4GHZ Multi-protocol Wireless RF 32-bit ARM Cortex M0 processor 128-bit AES hardware encryption processor 256kB flash / 32kB RAM Programmable peripheral interface
PPI Full-featured digital interface: SPI / I2C / UART 10-bit ADC
Programmable output power: +4dBm to -20dBm Application development and protocol stack completely independent Fully compatible with NRF24L series Compatible with NRF51xxx series pins Global Independent Power Management Operating voltage range ( 1.8 V ~ 3.6 V)
