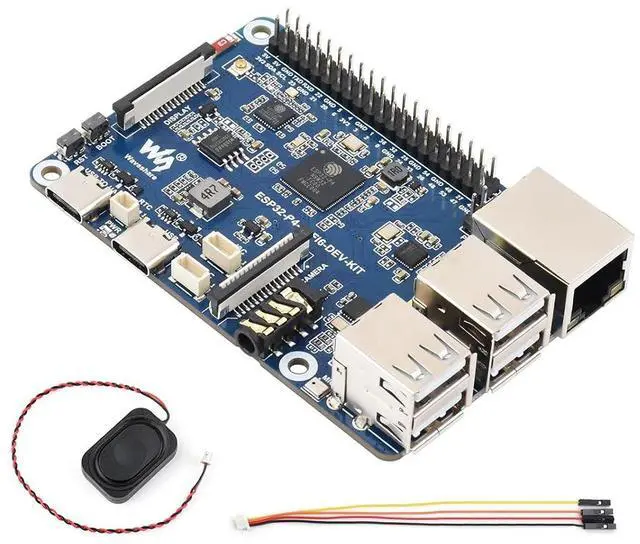

ESP32-P4-WIFI6-DEV-KIT Development Board Adopts ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5, with MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, PoE Module Header, etc.

Introduction ESP32-P4-WIFI6-DEV-KIT high-performance development board based on ESP32-P4 chip, with integrated RISC-V 32-bit dual-core and single-core processors. Onboard ESP32-C6 chip to extend 2.4GH z Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4-WIFI6-DEV-KIT, using SDIO interface protocol for communication. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and SDIO Host 3.0 for high-speed connectivity. Features High-performance MCU with RISC-V 32-bit dual-core and single-core processors 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM Powerful image and voice processing capability.

Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc. Reserved PoE Module header, connect to a PoE Module for PoE power supply, provides both network connection and power supply for ESP32-P4-WIFI6-DEV-KIT board with only one Ethernet cable Adtaping 2*20 GPIO headers with 28 x remaining programmable GPIOs
Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additional...
