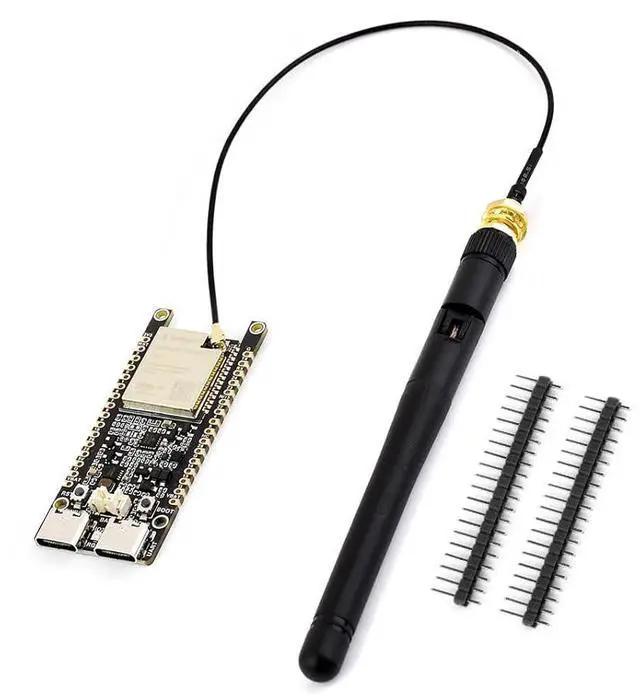

ESP32-C5 5GHz 2.4GHz Dual-Band Wi-Fi 6 Development Board, Adopts ESP32-C5-WROOM-1 Module, Supports Zigbee 3.0 / Thread/BLE 5, with External Dual-Band Wi-Fi Antenna, 32MB Flash, 8MB PSRAM

Introduction ESP32-C5-WIFI6-KIT is a development board based on the ESP32-C5-WROOM-1 module for dual-band Wi-Fi and multi-protocol IoT gateway applications. The ESP32-C5 is a single-core RISC-V chip, supports dual-band Wi-Fi 6 ( 2.4GH z and 5GHz), and integrates BLE 5, Zigbee, and Thread protocols for flexible use as a smart home hub or cross-protocol communication gateway. Equipped with 240MHz RISC-V processor, 384KB Static RAM, 8MB PSRAM, 32MB Flash, enables stable handling the concurrent tasks of multiple protocol stacks and running medium-load applications. Developers can leverage mature development frameworks such as ESP-IDF and Arduino for rapid prototyping and product implementation, making it suitable for IoT scenarios such as smart gateways and multi-protocol device integration.

Features Adopts ESP32-C5-WROOM-1 series module with RISC-V 32-bit processor, up to 240MHz main frequency Integrated with 384KB Static RAM, 320KB ROM, and 8MB PSRAM, 32MB Flash Integrated 2.4GH z and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance Onboard batt. recharge management module, with reserved 3.7V MX 1.25 Lithium batt. header for external batt. power supply USB Type-C port, easier to use Castellated module allows soldering directly to carrier boards, with rich peripheral interfaces Supports multiple low-power operating modes, enabling flexible adjustment of the balance between communication ran.

..
